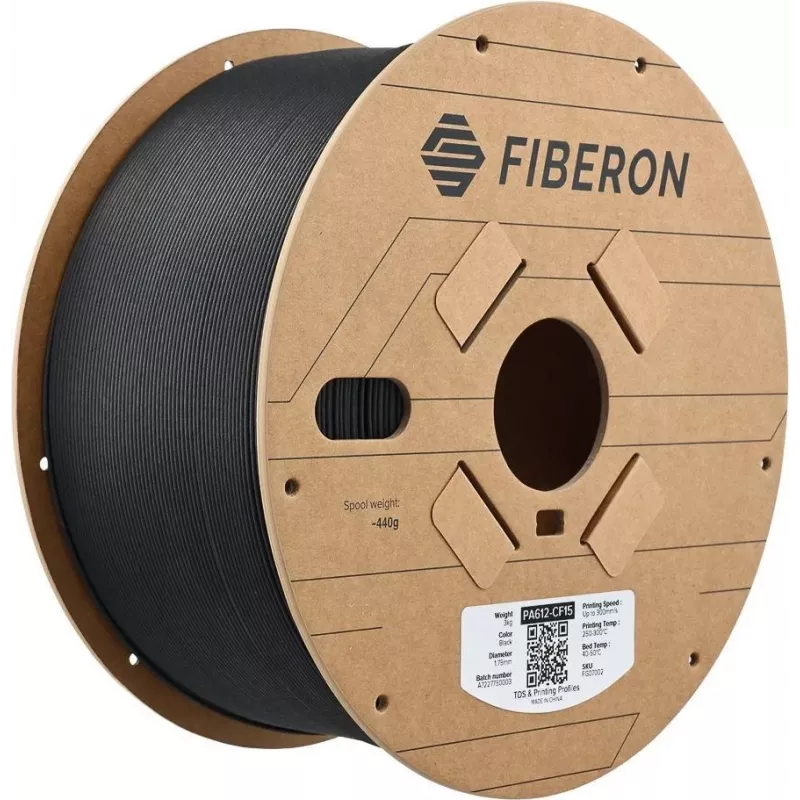

POLMASK Polymaker Fiberon PA612-CF15 Filament PA612-CF Carbon Fiber Reinforced 1.75 mm 3000 g (FG07002)

The POLMASK Polymaker Fiberon PA612-CF15 is a high-performance carbon fiber reinforced nylon filament designed for demanding industrial applications. With 15% chopped carbon fiber content, this filament offers exceptional stiffness, dimensional stability, and heat resistance, making it ideal for functional prototypes, tooling, jigs, fixtures, and end-use parts in automotive and aerospace sectors.

Advantages

Enhanced mechanical properties with tensile strength of approx. 100 MPa and tensile modulus of approx. 7 GPa. High heat deflection temperature (HDT @ 0.45 MPa) of approx. 150 °C. Excellent layer adhesion and low warpage when printed in an enclosed environment. The carbon fiber reinforcement provides superior rigidity and reduced shrinkage compared to standard nylon filaments.

Suitable for

• Functional prototypes and end-use parts
• Tooling, jigs, and fixtures
• Automotive and aerospace components
• Applications requiring high strength and stiffness

Key specifications

• Material: PA612-CF15 (Carbon Fiber Reinforced PA612 Nylon)
• Filament Diameter: 1.75 mm
• Net Weight: 3000 g (3 kg)
• Color: Black
• Carbon Fiber Content: 15%
• Recommended Nozzle Temperature: 260-290 °C
• Recommended Bed Temperature: 80-100 °C
• Recommended Print Speed: 30-60 mm/s
• Nozzle Compatibility: Hardened Steel or Ruby Nozzle
• Enclosure Requirement: Recommended
• Density: Approx. 1.15 g/cm³

Recommendations

Due to the abrasive nature of carbon fiber, use a hardened steel or ruby nozzle. Store filament in a dry environment; pre-drying at 80-100 °C for 6-8 hours is recommended before printing. An enclosed printer is strongly advised to maintain stable temperature and minimize warping.
