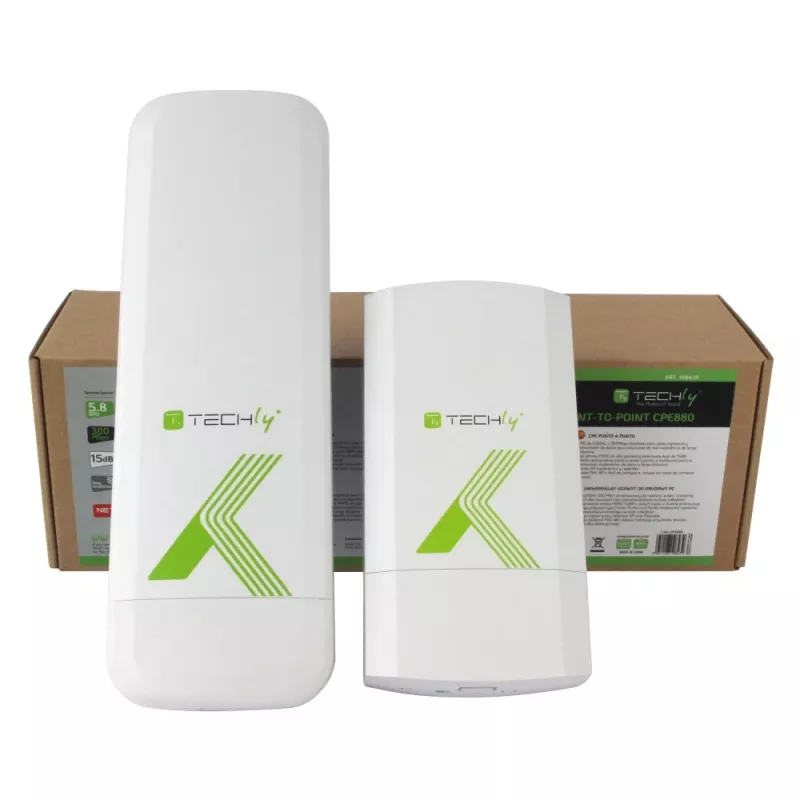

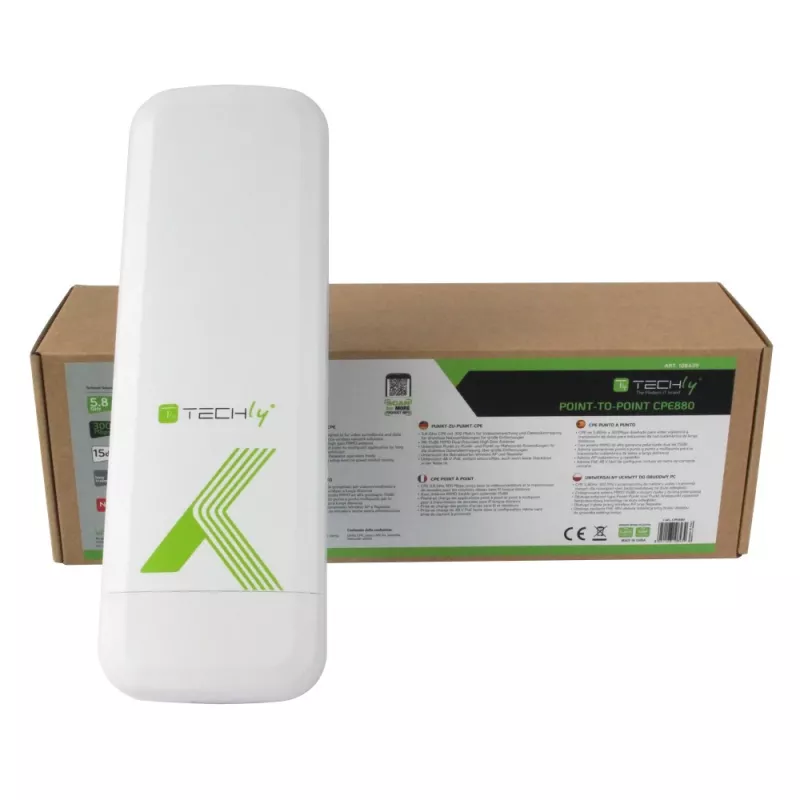

Point-to-Point CPE Techly I-WL-CPE880 5.8GHz Wi-Fi Standard

The Techly Point-to-Point CPE I-WL-CPE880 5.8GHz Wi-Fi Standard is an outdoor/indoor customer premises equipment designed to establish stable wireless point-to-point links. It supports dual-band operation on 5.8 GHz and 2.4 GHz and delivers a maximum data transfer rate of up to 300 Mbps. The unit integrates a 15 dBi directional antenna to improve signal strength and link stability and comes in a white enclosure. Power over Ethernet (PoE) support permits both power and data to be delivered over a single Ethernet cable, simplifying installation and cable management.

Advantages

The device provides increased transmission range and focused coverage thanks to its 15 dBi antenna while supporting common networking standards (IEEE 802.3, IEEE 802.11a, IEEE 802.11n) for compatibility with existing equipment. With a single Ethernet (RJ-45) port and PoE capability, it reduces the need for nearby power outlets and lowers installation complexity. The compact, lightweight design (0.646 kg) and white finish make it suitable for mounting on poles, walls or other outdoor structures without attracting attention.

Suitable for

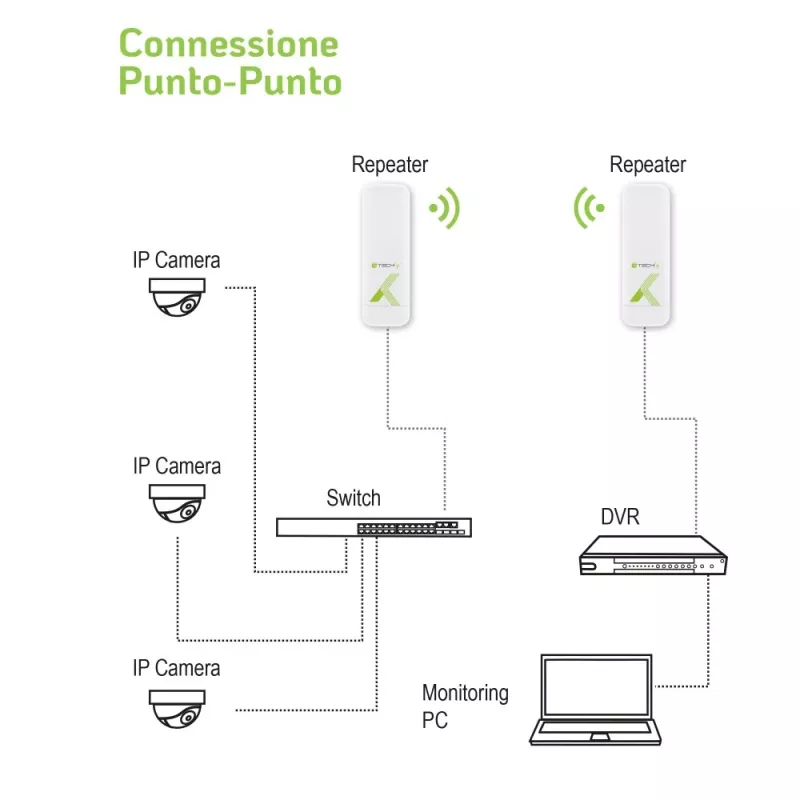

• Establishing a dedicated point-to-point wireless link between buildings
• Extending network connectivity in areas without wired infrastructure

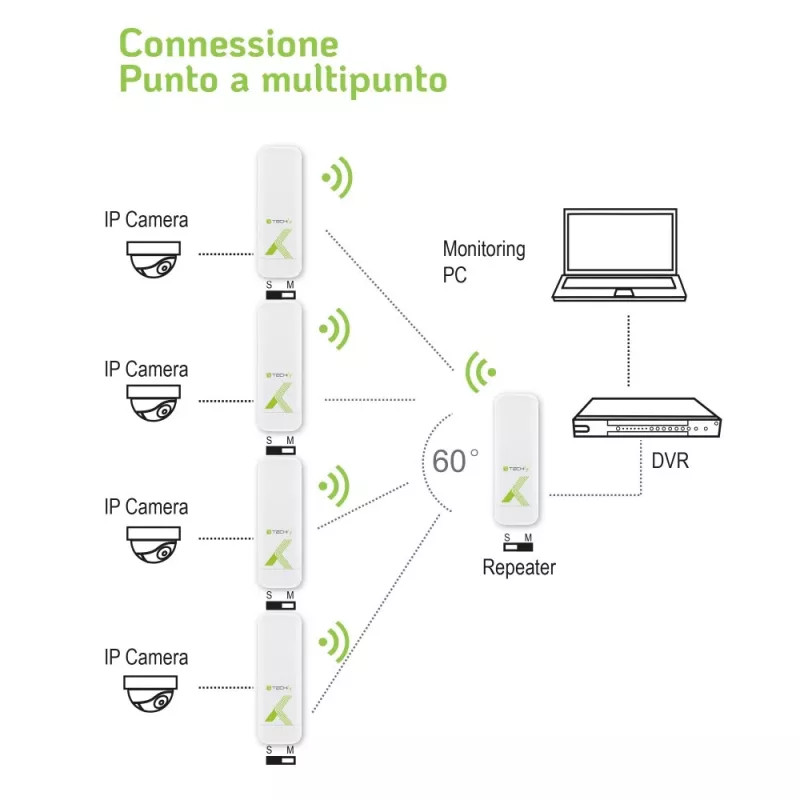

• Connecting remote surveillance cameras or access points over a wireless backhaul
• Short- to medium-range outdoor wireless bridge deployments

Key specifications

• Maximum data transfer rate: 300 Mbit/s
• Operating frequency bands: 5.8 GHz and 2.4 GHz
• Antenna gain: 15 dBi directional antenna
• Networking standards: IEEE 802.3, IEEE 802.11a, IEEE 802.11n

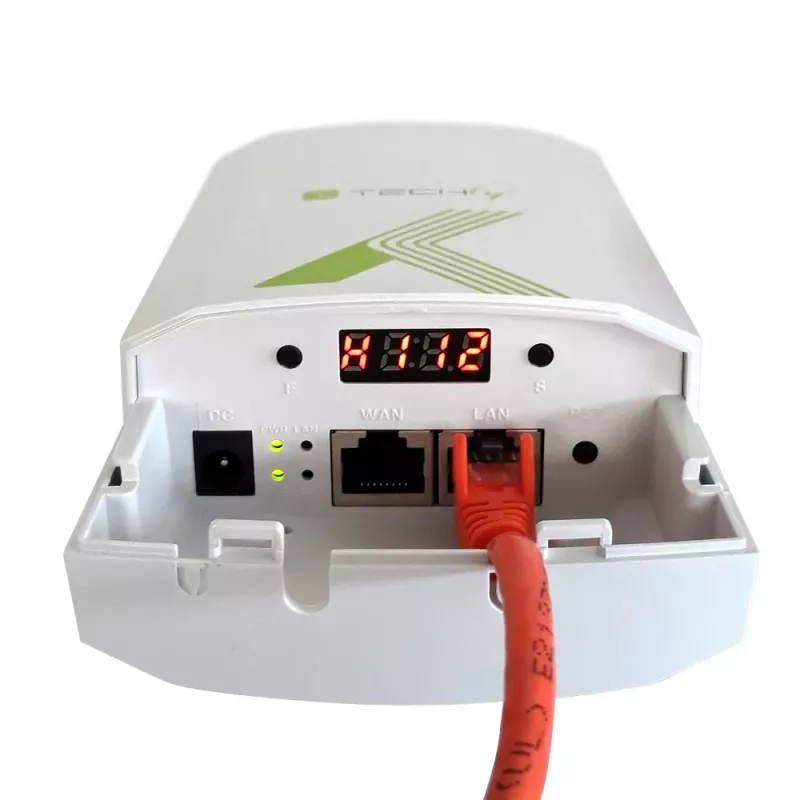

• Ethernet interface: 1 x RJ-45 LAN port with Power over Ethernet support
• Product colour: White
• Weight: 0.646 kg

How to use

Mount the CPE on a stable surface or pole with a clear line of sight toward the remote unit to achieve the best link performance. Connect a single Ethernet cable to the RJ-45 port to provide both data and power via a compatible PoE injector or switch. Configure the device through its web-based management interface or the manufacturer's configuration tool to set the operating band (5.8 GHz or 2.4 GHz), channel, SSID and security settings. Align the antenna carefully while monitoring signal strength and optimize antenna orientation and tilt until the desired link quality and throughput are achieved.

Recommendations

For reliable point-to-point links, choose the 5.8 GHz band when there is clear line of sight and minimal interference; use the 2.4 GHz band when obstacles or longer range require better penetration. Ensure both ends of the link use compatible configuration, keep firmware updated, and protect outdoor cable runs and connectors from moisture. Regularly check alignment and signal metrics to maintain stable throughput.
