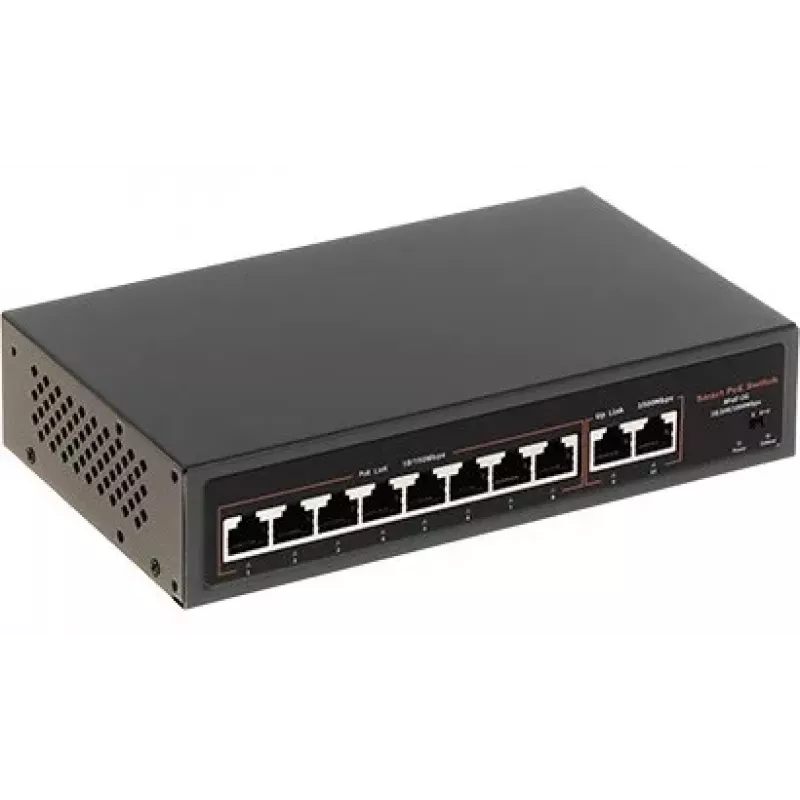

POE LANG 8-Port Gigabit PoE+ Switch APTI-POE0802G-120W-ECO

The POE LANG APTI-POE0802G-120W-ECO is a high-performance 8-port Gigabit PoE+ switch designed for small to medium-sized networks. With a total PoE power budget of 120W, it delivers up to 30W per port, supporting IEEE 802.3af/at devices such as IP cameras, VoIP phones, and wireless access points. The switch features 2 additional Gigabit uplink ports for flexible network expansion, a switching capacity of 20 Gbps, and advanced features like VLAN, QoS, Extend Mode (up to 250m), and PoE Watchdog for enhanced reliability.

Advantages

This switch offers a cost-effective solution for powering and connecting network devices. Its Extend Mode allows PoE transmission up to 250 meters, ideal for surveillance installations. The PoE Watchdog automatically reboots unresponsive PoE devices, minimizing downtime. With a fanless design, it operates silently, making it suitable for noise-sensitive environments.

Suitable for

• Small business networks
• IP surveillance systems
• Wireless access point deployments
• VoIP phone systems
• Home office setups

Key specifications

• 8 PoE+ ports (IEEE 802.3af/at, up to 30W per port)
• Total PoE budget: 120W
• 2 Gigabit uplink ports (10/100/1000 Mbps)
• Switching capacity: 20 Gbps
• Packet forwarding rate: 14.88 Mpps
• MAC address table: 8K
• Jumbo frame support: 10KB
• Internal power supply: AC 100-240V, 50/60Hz
• Operating temperature: -10°C to 55°C
• Desktop mounting
• LED indicators for Power, Link/Act, PoE Status

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The Extend Mode is recommended for distances over 100 meters but reduces speed to 10 Mbps. Ensure total PoE consumption does not exceed 120W.
