PoE Injector Konftel Konftel PoE Injector (EU)

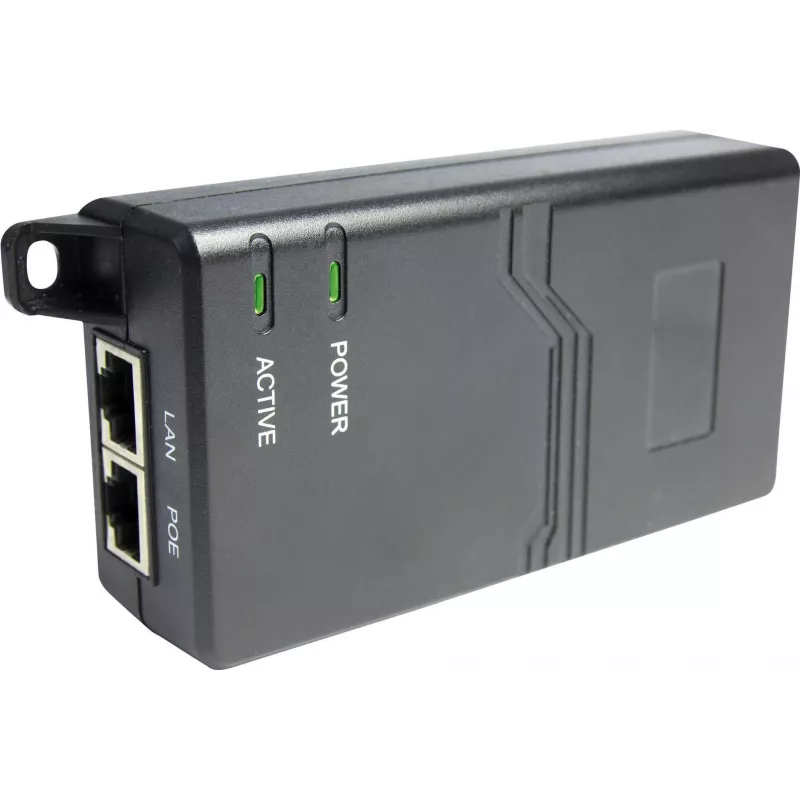

The Konftel PoE Injector supplies power and data over a single Ethernet connection for PoE devices such as the Konftel 800. It supports the IEEE 802.3af and IEEE 802.3at (PoE+) standards and includes a 2 m Ethernet cable and a 1.8 m power cable. The injector has LED indicators for activity and power, accepts AC input 100–240 V and provides a DC output of 53 V at 0.6 A. Its compact black housing measures 60 × 115 × 33 mm and weighs 0.48 kg.

Advantages

The Konftel PoE Injector allows centralized power delivery through the Ethernet connection, eliminating the need for a separate power supply at the device. Compatibility with IEEE 802.3af/at ensures support for a wide range of PoE devices, while the included cables and LED status indicators simplify installation and monitoring. The compact form factor and standard RJ‑45 ports make integration into existing network setups straightforward.

Suitable for

• Powering Konftel conference phones such as the Konftel 800
• Providing PoE to networked audio or video devices that support IEEE 802.3af/at
• Installations where a separate DC power outlet near the device is unavailable

Key specifications

• Standards: IEEE 802.3af, IEEE 802.3at (PoE+)
• AC input voltage: 100–240 V
• DC output: 53 V, 0.6 A
• Ethernet ports: 2 (RJ-45)
• Cables included: Ethernet 2 m, power 1.8 m
• Dimensions (W×D×H): 60 × 115 × 33 mm
• Weight: 0.48 kg
• Color: Black

How to use

Connect the injector to mains power using the supplied power cable. Plug the Ethernet cable from your network switch or router into the injector's LAN port and connect the device (for example, a Konftel 800) to the PoE output port using the included Ethernet cable. Verify power and activity via the LED indicators. Ensure the connected device supports IEEE 802.3af or 802.3at to receive power over Ethernet.

Recommendations

For stable operation, use standard Cat5e or higher Ethernet cables, keep the injector in a ventilated location away from heat sources, and verify that the total power budget of your PoE switch or injector meets the requirements of all connected devices.
