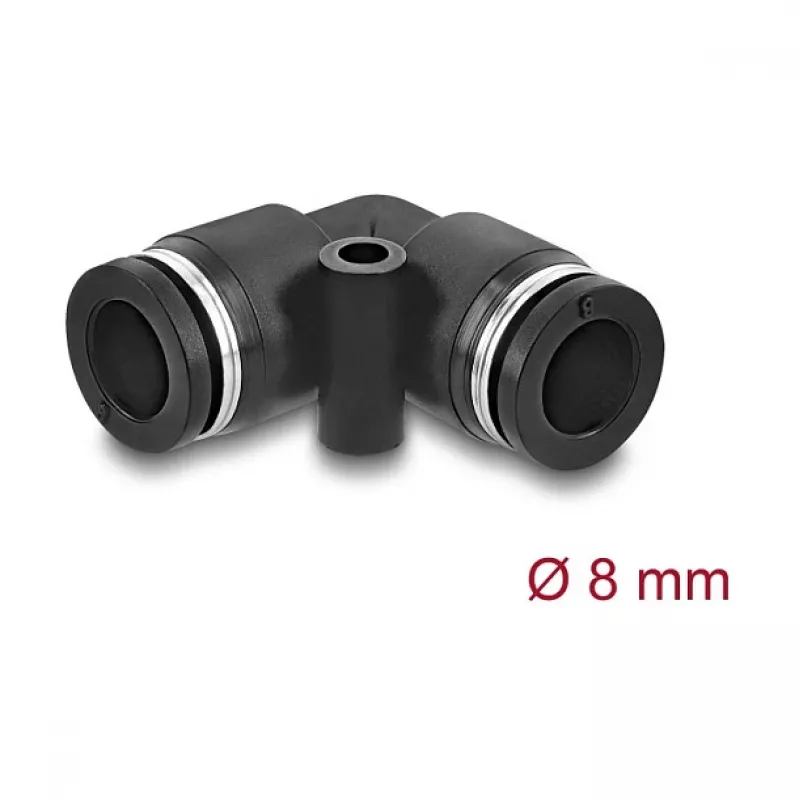

Pneumatic connector DELOCK 8 mm 90° angled with mounting hole, black, metal/plastic, female thread, 30 mm

DELOCK 8 mm pneumatic connector with a 90° angled design and mounting hole, combining metal and plastic components for reliable connections in compressed air and pneumatic systems. The connector has a female thread and a total length of 30 mm, finished in black. It is intended for compact hose routing and allows fixed attachment to machines, panels or frames for stable installation and easier maintenance.

Advantages

The angled 90° design enables space-saving hose routing and reduces the risk of kinks, while the mixed metal/plastic construction provides a balance of strength and corrosion resistance. The integrated mounting hole permits fast and secure fixation to mounting points, preventing the hose from slipping or coming loose. The connector offers high tightness and a durable connection with quick installation that does not require special tools.

Suitable for

• Compressed air lines in workshops and machines
• Pneumatic automation systems with limited space
• Panel or frame mounting where fixed hose routing is required

Key specifications

• Connector type: pneumatic connector (female thread)
• Tubing size: 8 mm
• Angle: 90°
• Length: 30 mm
• Materials: metal and plastic
• Finish: black
• Mounting: integrated mounting hole
• Brand: DELOCK, MPN: 60746, EAN: 4043619607464

How to use

Push the 8 mm pneumatic hose firmly into the connector until it seats, then hand-tighten the female thread to the mating fitting. Use the mounting hole to secure the connector to a suitable surface with a screw or bolt of appropriate size, ensuring proper alignment to avoid stress on the hose. Check the connection visually and perform a leak test under operating pressure before use.

Recommendations

Use appropriate-size tubing (8 mm) and compatible thread fittings; avoid excessive bending near the connector and secure the mounting screw so that the connector is stable but not compressed. Inspect seals periodically and replace the connector if any wear or leakage appears.
