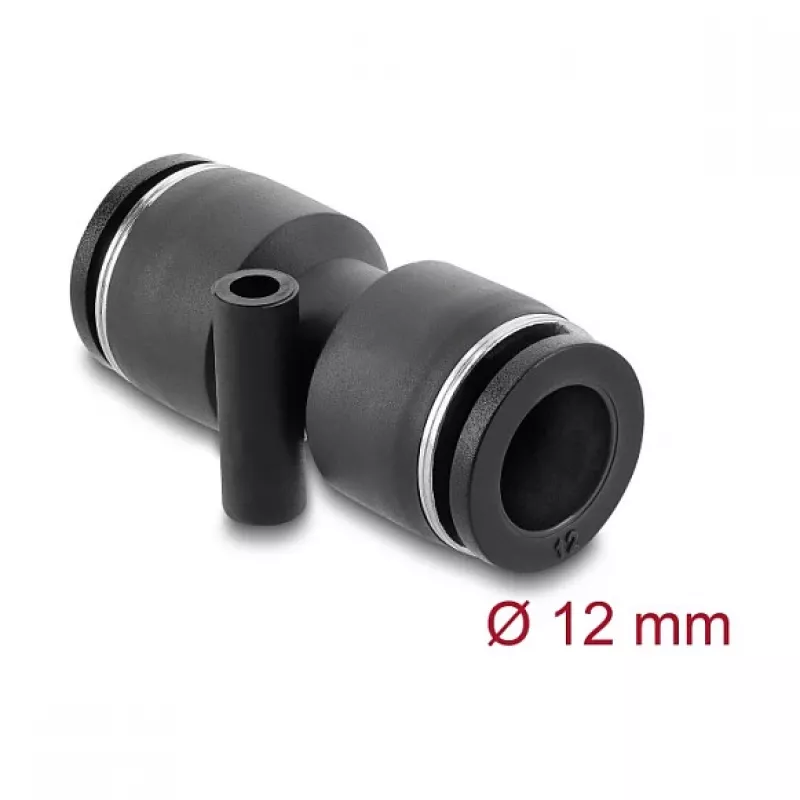

Pneumatic connector DELOCK 12 mm straight with mounting hole, metal/plastic body, female thread, length 49 mm

Straight pneumatic connector by DELOCK designed for 12 mm tubing, featuring a combined metal and plastic body, female thread and a total length of 49 mm. The connector includes a mounting hole for secure fixation to machines, brackets or other mounting points, making it suitable for compressed air and pneumatic systems where a fixed, threaded intake and stable attachment are required.

Advantages

The connector provides a quick, tool-free connection for air and pneumatic lines, ensuring high tightness and a durable joint. The integrated mounting hole enables fast and secure attachment to equipment to prevent hoses from slipping or loosening. Construction from metal and plastic balances strength and corrosion resistance while keeping the component lightweight.

Suitable for

• 12 mm pneumatic hoses and tubing
• Compressed air supply lines
• Workshop equipment and pneumatic tools
• Automation and machine fittings requiring a fixed threaded intake

Key specifications

• Brand: DELOCK
• Model / MPN: 60745
• EAN: 4043619607457
• Connection: female thread (threaded intake)
• Tube diameter: 12 mm
• Body material: metal/plastic
• Orientation: straight
• Total length: 49 mm
• Feature: integrated mounting hole

How to use

Push the 12 mm tubing fully onto the fitting until it seats, then secure any locking mechanism if present. Screw the female thread into the mating threaded port and tighten to the appropriate torque for a leak-free connection. Use the mounting hole to fasten the connector to machines, brackets or other fixed points with a suitable screw to prevent movement and strain on the hose.

Recommendations

Check compatibility of thread type and size with the mating port before installation. Ensure tubing is cut squarely and free of burrs for optimal sealing. Periodically inspect the connection and mounting screw for tightness and wear, and replace the connector if damage or leakage occurs.
