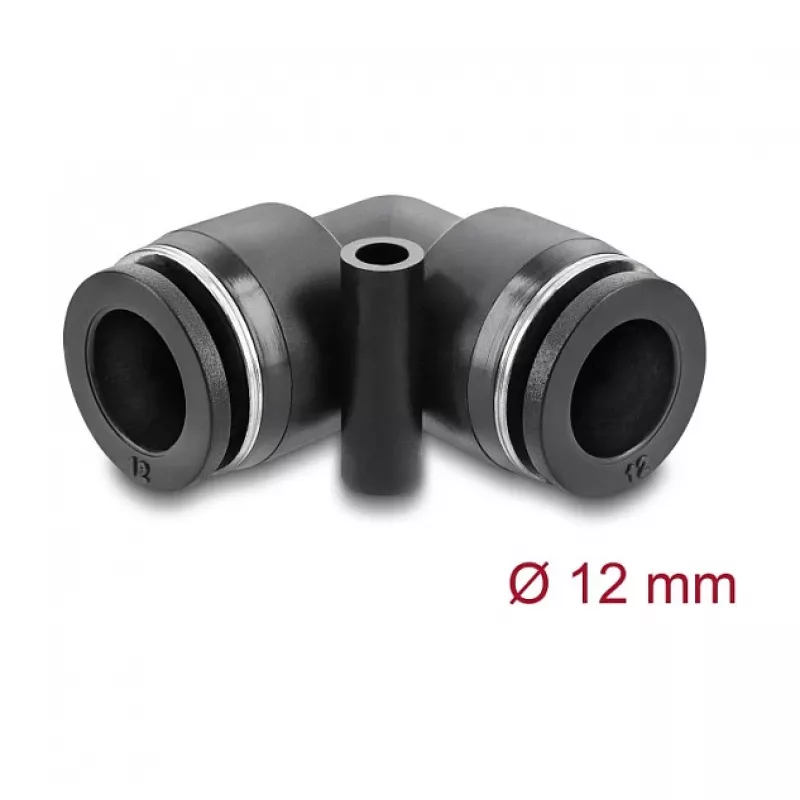

Pneumatic connector DELOCK 12 mm 90° angled with mounting hole, female thread, metal/plastic, length 39.5 mm

Delock pneumatic connector for 12 mm tubing, 90° angled with an integrated mounting hole. The body combines metal and plastic and features a female thread; overall length is 39.5 mm. Designed for compressed air and pneumatic systems where a compact right-angle feed and fixed attachment are required.

Advantages

The 90° angled design enables compact hose routing in confined spaces and reduces the risk of kinks. The combination of metal and plastic in the body provides a durable connection with good sealing properties. The integrated mounting hole allows quick, secure attachment to machines, brackets or other mounting points, preventing the hose from slipping or coming loose.

Suitable for (tasks / use cases)

• Compressed air supply lines
• Machine and equipment pneumatic fittings
• Workshop and industrial automation systems
• Areas with limited installation space requiring right-angle routing

Key specifications

• Tubing compatible diameter: 12 mm
• Design: 90° angled
• Connection type: female thread
• Material: metal/plastic body
• Length: 39.5 mm
• Brand / MPN / EAN: DELOCK / 60748 / 4043619607488

How to use

Insert the 12 mm hose into the connector according to the manufacturer's instructions and secure it to the female thread as required. Use the integrated mounting hole to fasten the connector to a stable surface or bracket with an appropriate screw or bolt. Ensure all threaded and hose connections are tightened to provide a leak-free seal before pressurising the system.

Recommendations

Verify compatibility with the system's operating pressure and media. Periodically inspect the connector and hose for wear, damage or loosening, and replace components if leaks or deterioration are observed.
