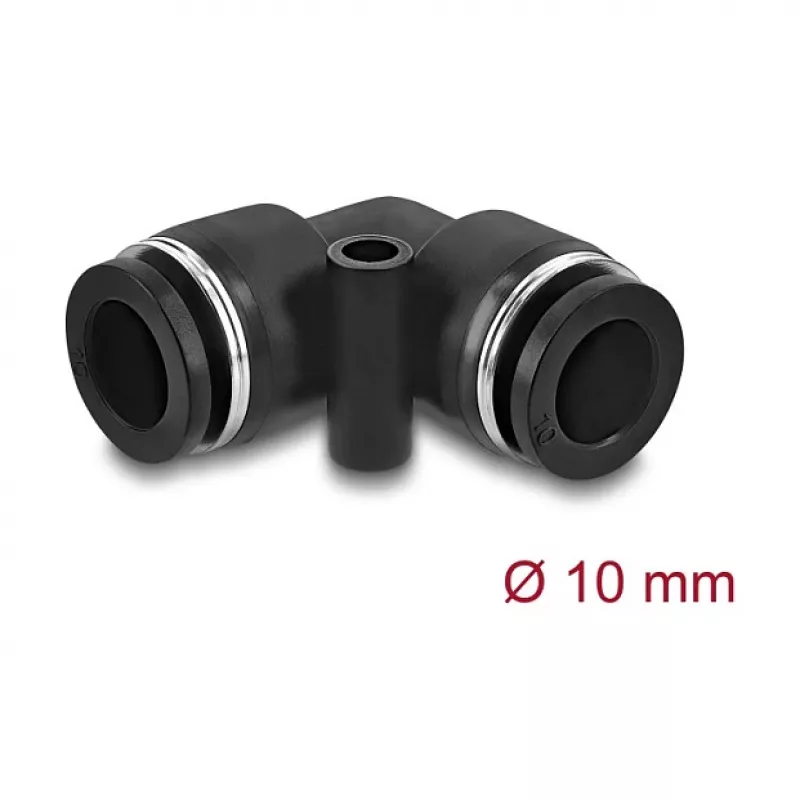

Pneumatic connector DELOCK 10 mm, 90° angled with mounting hole, female thread, metal/plastic, length 36.5 mm

DELOCK pneumatic connector for 10 mm tubing, featuring a 90° angled design and an integrated mounting hole. The connector combines metal and plastic construction with a female thread and a total length of 36.5 mm. It is intended for quick, secure connections in compressed air and pneumatic systems where compact hose routing and a stable attachment point are required.

Advantages

The angled 90° design allows space-saving hose routing and reduces the risk of kinks, while the combination of metal and plastic materials offers a balance of strength and corrosion resistance. The integrated mounting hole provides straightforward fixation to machines, brackets or other mounting points, and the female threaded end ensures a tight, durable connection suitable for pneumatic lines.

Suitable for

• Compressed air installations
• Pneumatic machinery and automation systems
• Workshops and service equipment
• Areas with limited installation space

Key specifications

• Tubing size: 10 mm
• Design: 90° angled
• Connection: female thread
• Materials: metal/plastic
• Length: 36.5 mm
• Brand: DELOCK, MPN: 60747, EAN: 4043619607471

How to use

Insert the 10 mm hose into the push-fit or threaded end according to the hose type and tighten the female thread to the mating thread until secure. Use the mounting hole to fasten the connector to a fixed point on the machine or bracket with an appropriate screw to prevent movement. Verify tightness and hose routing after installation and run a pressure test before normal operation.

Recommendations

Use with clean, compatible pneumatic tubing and fittings; ensure thread sealant or appropriate tape is applied to the female thread if required by the system. Regularly inspect connections for wear or leaks and replace the connector if damage is detected.
