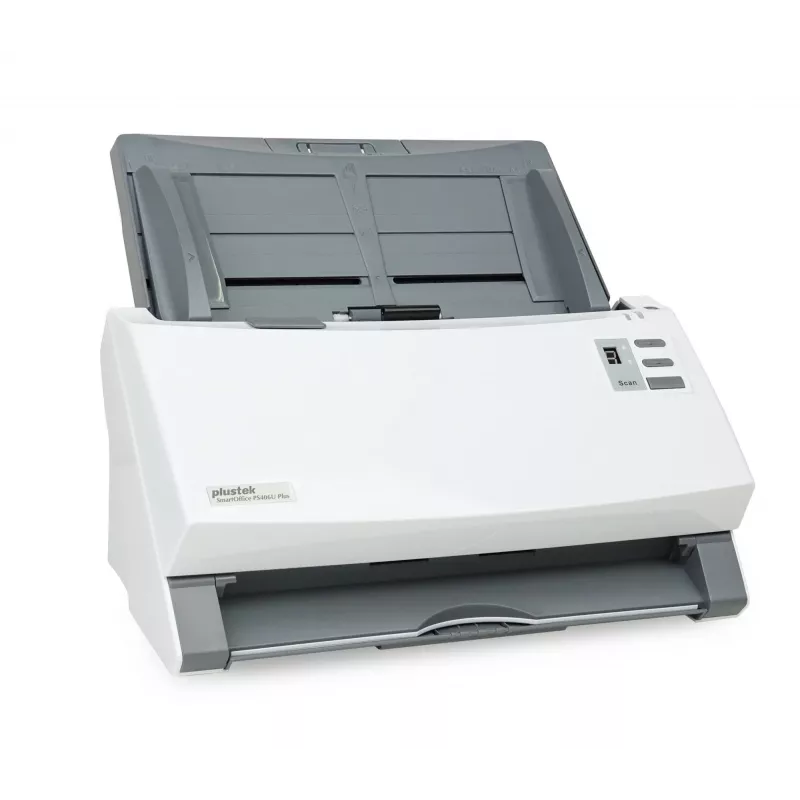

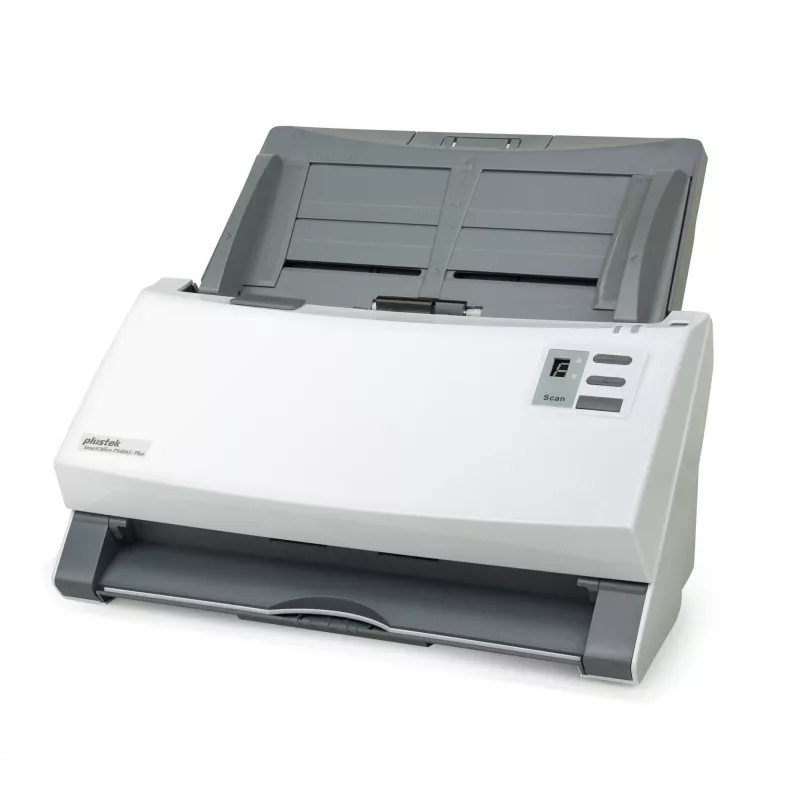

Plustek SmartOffice PS406U Plus ADF scanner 600 x 600 DPI A4 Grey, White

The Plustek SmartOffice PS406U Plus is an ADF scanner designed for busy offices that need reliable, high-speed document capture. It supports a maximum scan size of 216 x 5080 mm, delivers an optical resolution of 600 x 600 dpi and uses dual CIS sensors with an LED light source. The scanner accepts mixed batches and a variety of media including business cards, paper of varying weights and plastic or embossed ID cards up to 1.2 mm thick. A 100-sheet automatic document feeder and a rated daily duty cycle of up to 4,000 pages make it suitable for continuous use.

Advantages

The SmartOffice PS406U Plus combines advanced paper feeding, crop/deskew processing and ultrasonic multi-feed detection to reduce errors and ensure accurate data capture. Its robust ADF can handle mixed sizes and feed up to three hard cards continuously, while one-pass duplex scanning accelerates workflow. Integrated software utilities such as DocAction and DocTWAIN provide one-touch scanning to folders, email, FTP, printers or imaging applications and support common file formats including JPEG, TIFF and PDF.

Suitable for

• High-volume office document scanning and archiving
• Batch scanning of mixed-size documents and business cards
• Processing ID and embossed cards up to 1.2 mm thick
• Integration with document management and imaging applications

Key specifications

• Maximum scan size: 216 x 5080 mm
• Optical resolution: 600 x 600 dpi
• Feeding: 100-sheet automatic document feeder (ADF)
• Duplex scanning: Yes (one-pass duplex)
• Daily duty cycle: up to 4,000 pages
• Card handling: up to three hard cards continuously; embossed card up to 1.2 mm thickness
• Sensor and light source: dual CIS with LED
• Interfaces: USB 2.0
• Weight: 2.7 kg
• Colour: Grey, White

How to use

Load documents into the 100-sheet ADF, ensuring mixed batches are aligned. Use the DocAction button utility to assign one-touch profiles that send scanned files directly to a folder, email, FTP, printer or compatible application. Select desired output format (JPEG, TIFF, PDF, etc.) and start scanning; the scanner captures both sides in a single pass and processes images with crop/deskew and enhancement routines. If the scanner detects overlapping pages, the ultrasonic multi-feed detection will alert the user.

Recommendations

For reliable long-term operation, use the SmartOffice PS406U Plus with documents free of staples and large clips, keep the ADF clean from dust and feed mixed batches with similar sizes when possible. Use the included DocTWAIN drivers for best compatibility with document management and imaging software.
