Pistol Grip Drill Einhell TE-CD 18/2 Li-i+22 1250 RPM 1.14 kg

The Einhell TE-CD 18/2 Li-i +22 cordless pistol-grip drill (1x2.5 Ah) combines screwdriving, drilling and percussion drilling in a compact, battery-powered tool. As part of the Power X-Change system it runs on an 18 V PXC battery for cordless use. The drill features a 2-speed gearbox, 20 torque settings and a 13 mm single-sleeve quick-action chuck with automatic spindle lock. The set includes a 2.5 Ah battery, a quick charger, a 22-piece bit and drill set and a practical E-Box Basic case.

Advantages

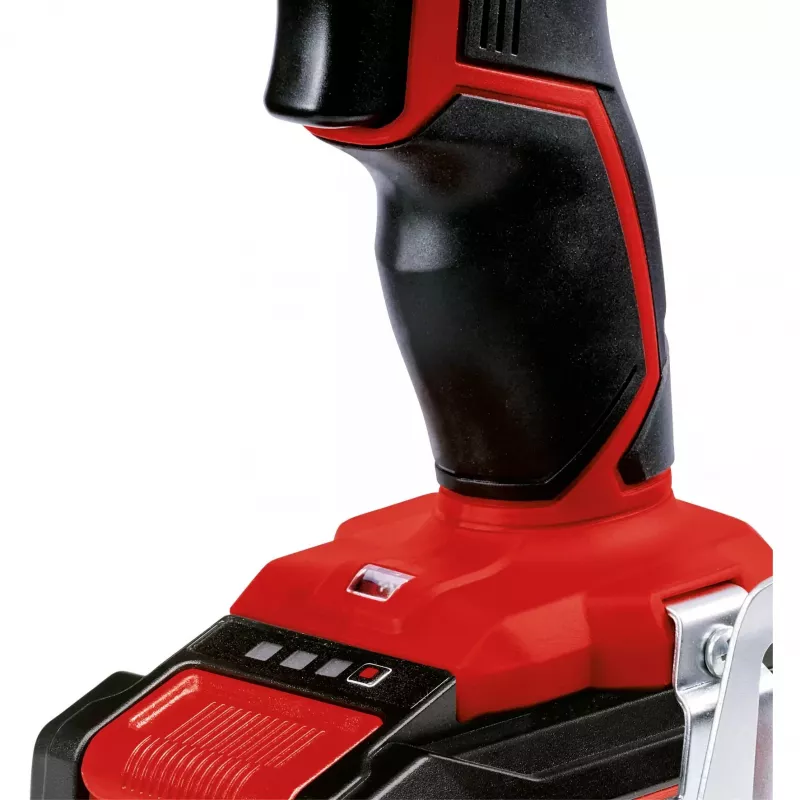

The drill delivers up to 44 Nm of torque for powerful screwing and drilling while maintaining sensitive control via adjustable speed electronics and a torque-slip clutch to prevent overtightening. The percussion function allows gentle impact drilling in masonry, and the integrated LED light improves visibility in dark or tight areas. The ergonomic Softgrip handle and low weight (1.14 kg) provide comfortable handling during extended use. Quick bit changes are possible thanks to the single-sleeve quick-action chuck with quick-stop and automatic spindle lock.

Suitable for

• Home DIY screwdriving and assembly work
• Drilling in wood, metal and light masonry
• Percussion drilling in concrete up to small diameters (up to 8 mm depending on material)
• Workshop and garage maintenance tasks

Key specifications

• Model: Einhell TE-CD 18/2 Li-i +22 (MPN 4514220, EAN 4006825661835)

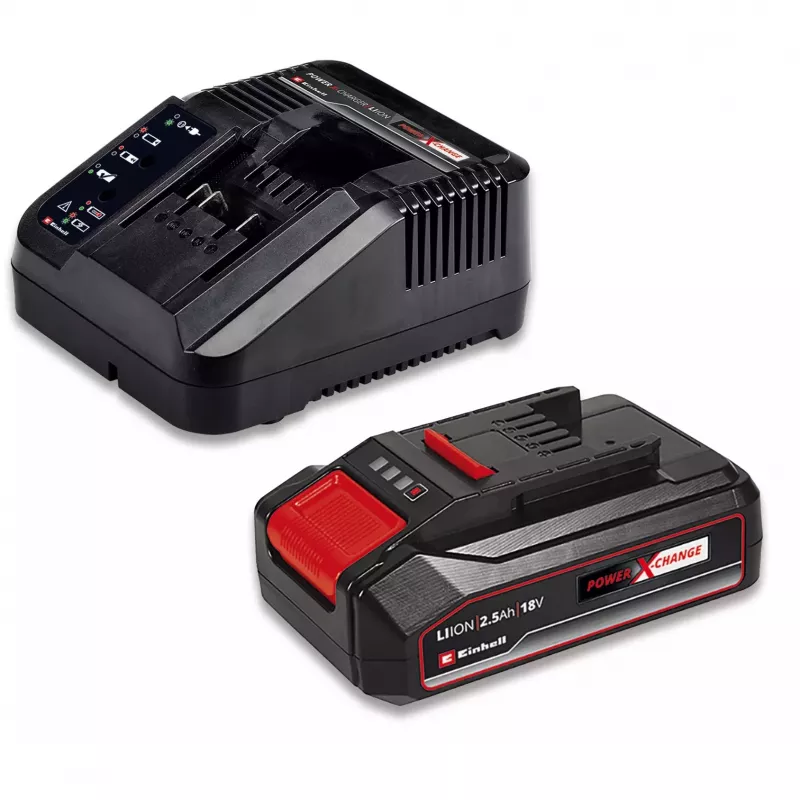

• Power: 18 V Power X-Change battery (included 2.5 Ah)
• Max idle speed: 1250 RPM
• Gears: 2-speed gearbox
• Torque: up to 44 Nm

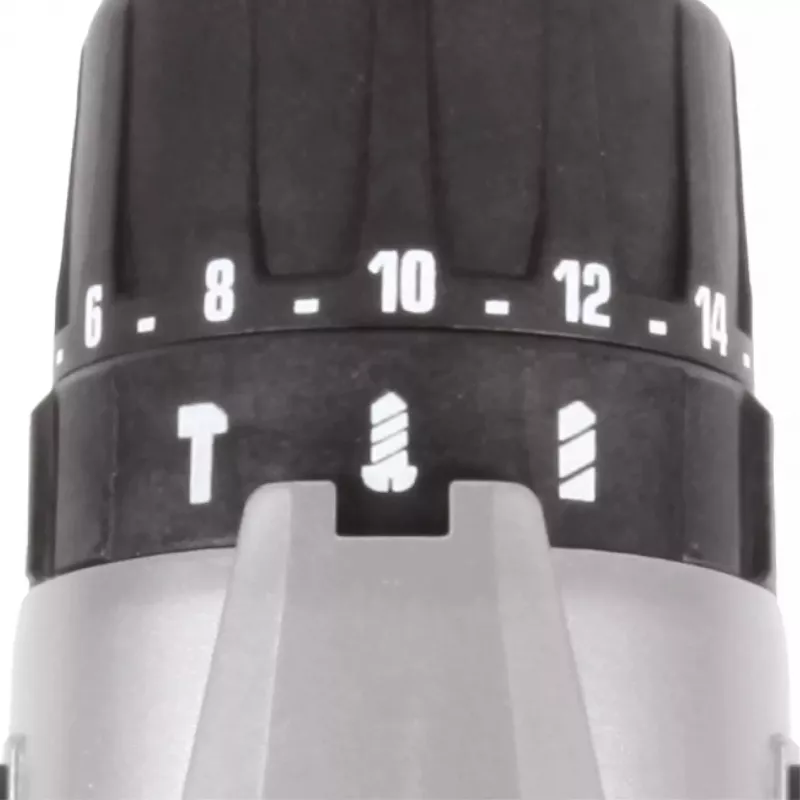

• Torque settings: 20 levels + torque-slip clutch
• Chuck capacity: 13 mm single-sleeve quick-action chuck with automatic spindle lock
• Weight: 1.14 kg

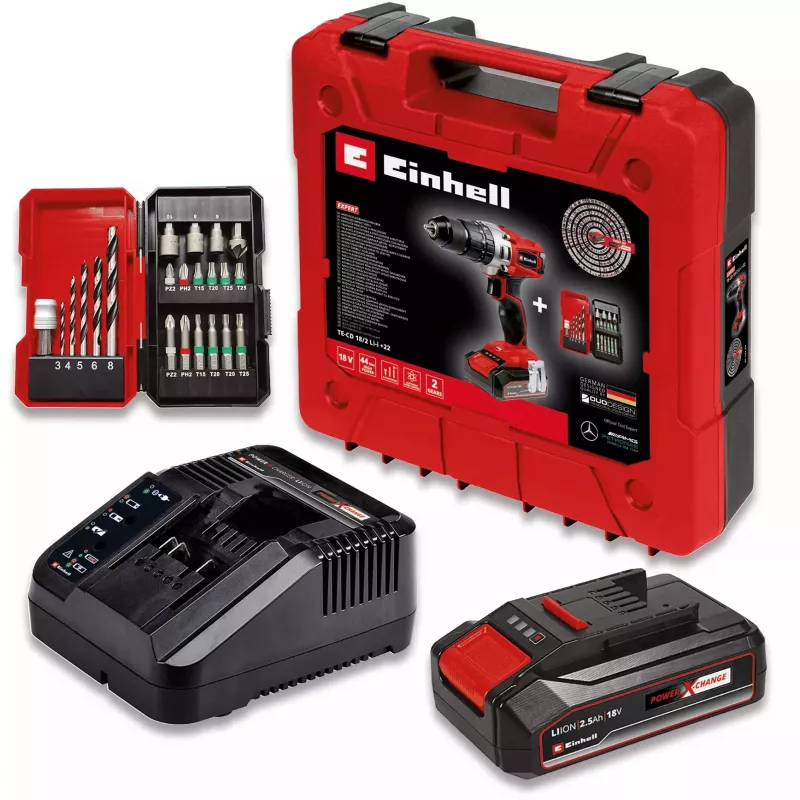

• Included accessories: quick charger, belt clip, 22-piece bit and drill set, E-Box Basic case

How to use

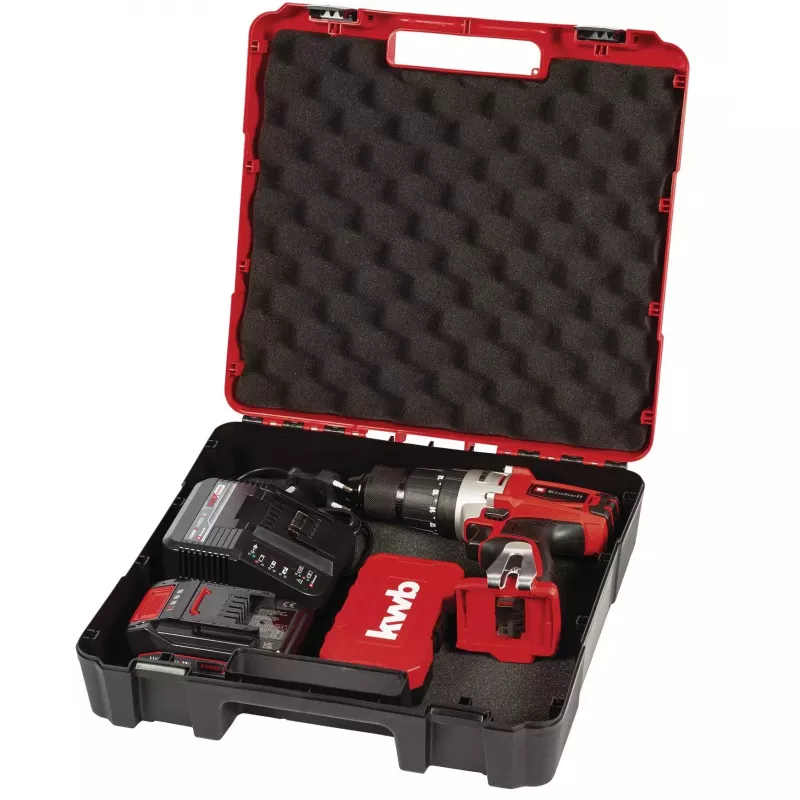

Insert a charged 18 V Power X-Change battery into the tool, select the appropriate gear and torque level for the material, and fit the required bit in the 13 mm quick-action chuck until the spindle lock engages. Use the lower gear and higher torque settings for screwing, the higher gear for fast drilling, and activate percussion mode for drilling into masonry. Apply steady pressure, allow the drill to work at its own speed, and use the integrated LED to illuminate the work area. After work, switch off the drill, remove the battery and store the tool and accessories in the E-Box Basic case.

Recommendations

For best results, match speed and torque to the material: low speeds and higher torque for screwdriving in soft materials, higher speeds for drilling. Use appropriate drill bits for wood, metal or masonry and wear eye protection. Charge the PXC battery with the supplied quick charger before first use and store batteries in a dry, cool place.
