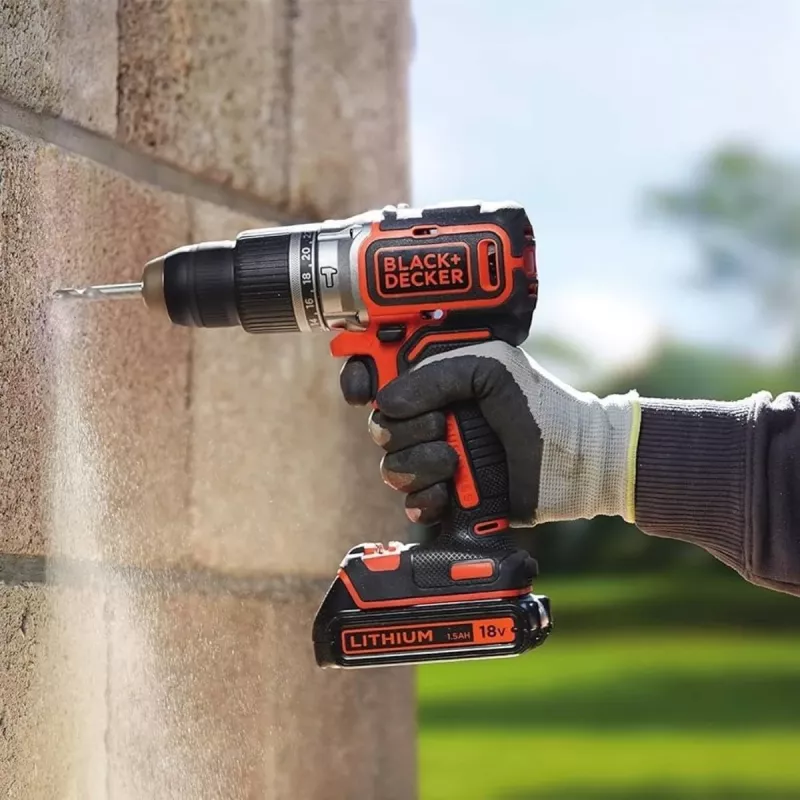

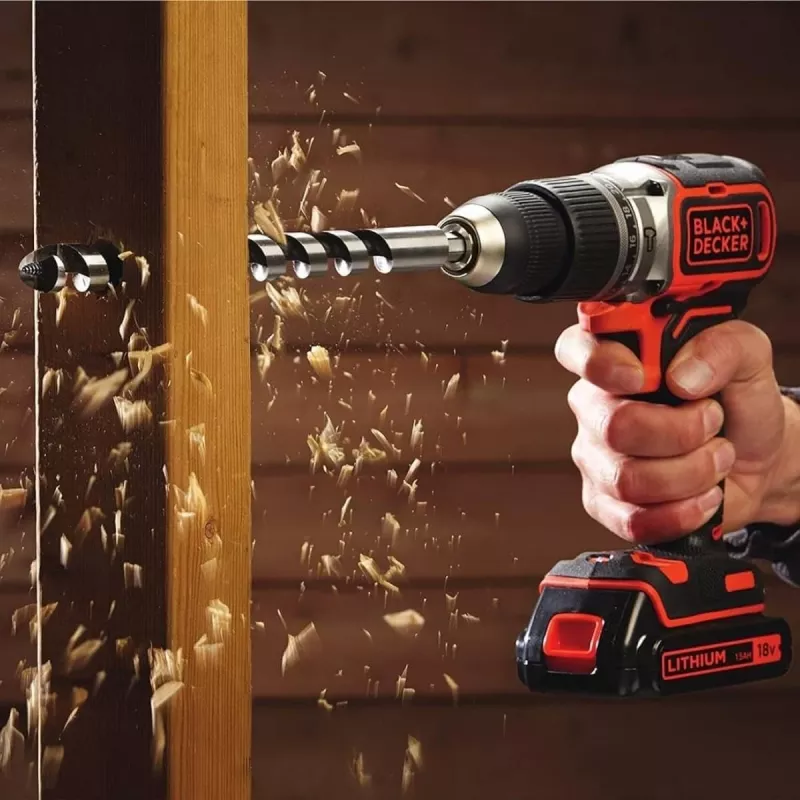

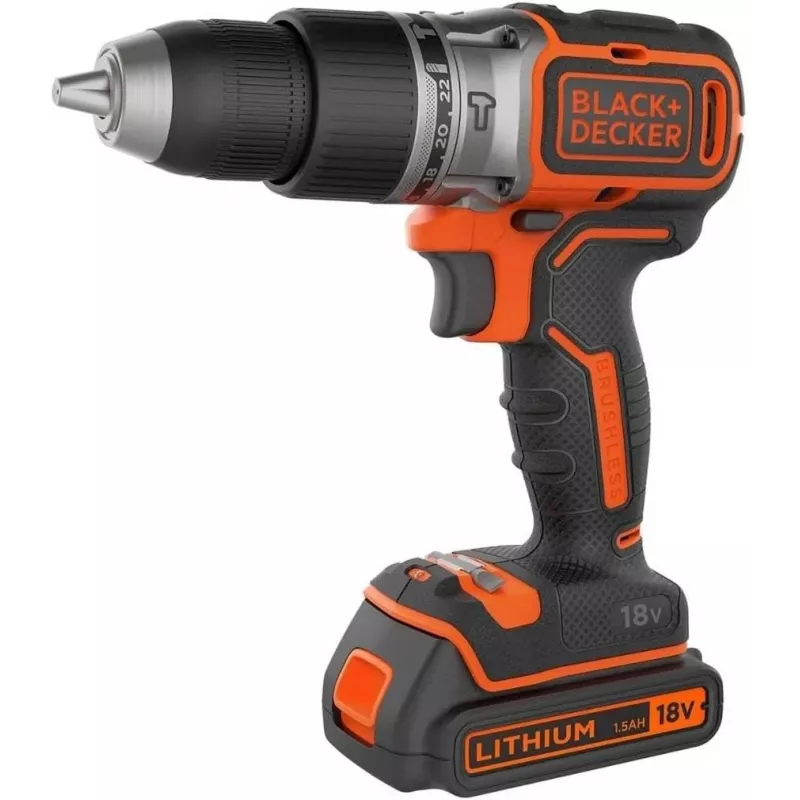

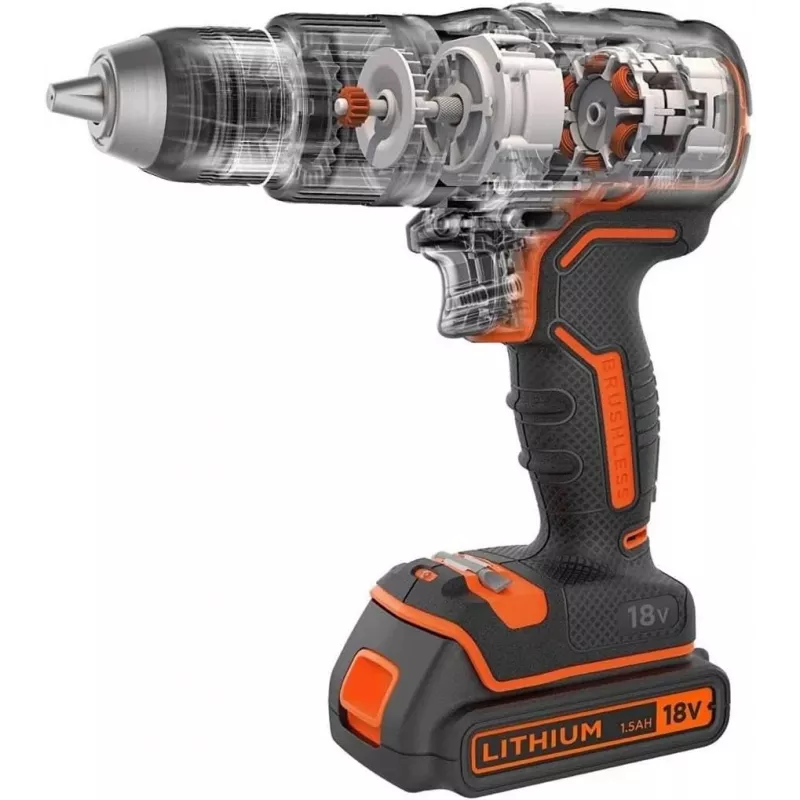

Pistol grip drill Black & Decker BCD383D2XK-QW 18 V, 2 Ah x2, 13 mm chuck, orange

The 18V Cordless Hammer Drill delivers versatile cordless performance for drilling and screwdriving in wood, plastic, metal and, with hammer mode, masonry and concrete. With a maximum torque of 45 Nm, two gear settings, a variable-speed trigger and 12 clutch positions, the tool balances power and control for DIY and light professional tasks. The keyless single-sleeve chuck allows quick bit changes, the integrated LED improves visibility, and an ergonomic soft-grip handle with detachable belt clip enhances comfort and accessibility. The orange housing contains 50% Tritan™ Renew recycled material. Supplied with a removable 18V 2.0Ah battery, 1A charger and kitbox; the battery is compatible with BLACK+DECKER® 18V POWERCONNECT™ tools.

Advantages

The drill offers high torque for demanding screwdriving and drilling, plus a hammer action mode for masonry work. Multiple clutch settings and variable speed give precise control to avoid stripped screws and over-drilling. Quick bit changes via the keyless chuck and the built-in LED increase efficiency on low-light jobs. Ergonomic soft-grip and a belt clip improve handling and portability, while the rechargeable battery’s compatibility within the 18V POWERCONNECT™ system provides flexibility across tools.

Key specifications

• Max torque: 45 Nm
• Hammer action: yes — up to 24,000 beats per minute
• Clutch positions: 12
• Gear settings: 2
• Chuck type: keyless single-sleeve
• Chuck capacity (max): 13 mm
• Battery: 18V removable, 2.0 Ah
• Charger: 1A
• Integrated LED work light: yes
• Housing material: includes 50% Tritan™ Renew recycled material
• Supplied with: 2.0Ah battery, 1A charger, kitbox
• Power system compatibility: BLACK+DECKER® 18V POWERCONNECT™

How to use

Select the appropriate drill bit and insert it into the keyless single-sleeve chuck, then set the gear and clutch to suit the material and task. Use lower clutch settings and lower speed for screwdriving to prevent stripping; increase torque and engage hammer mode for drilling into masonry or concrete. Press the variable-speed trigger to control rotation speed and use the integrated LED to illuminate the work area. After use, remove the battery for charging with the supplied 1A charger and store the drill in the kitbox or on a belt using the detachable clip.

Recommendations

For best results, match drill bit type and size to the material: use masonry bits for concrete, metal bits for steel, and wood bits for timber. Charge the 2.0Ah battery fully before first use and keep spare batteries for extended work periods. Follow safety guidelines: wear eye protection, secure workpieces, and disconnect the battery when changing bits or performing maintenance.
