Pin header DeLOCK 90790 230V 24mm Straight Connector 1 pc

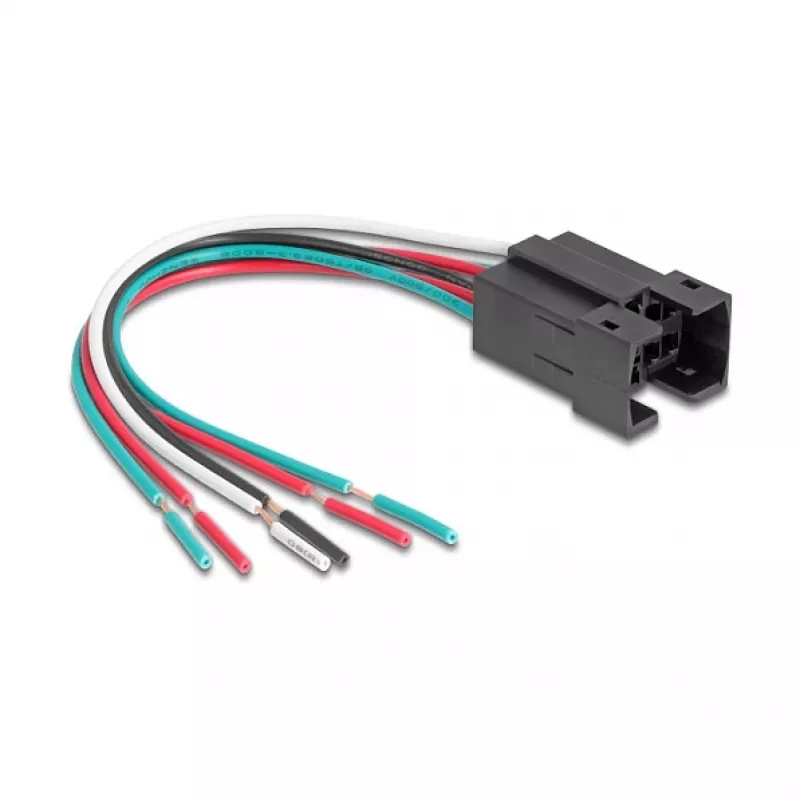

The DeLOCK 90790 straight connector is a pin header designed for 230V applications and measures 24 mm in length. It is intended as a socket for metal push buttons or switches, supporting variants with or without LED illumination. The connector is supplied as a single unit and comes in black, with a pin layout matched to specific switch designs.

Advantages

The connector provides a compact, straight pin header format compatible with standard metal push buttons and switches. Its tailored pin layout ensures reliable electrical contact for 230V circuits while the 24 mm length supports secure mechanical fit in many panel or enclosure designs. Supplied as a single piece, the product is convenient for small repair or prototyping tasks.

Suitable for

Key specifications

How to use

Install the straight pin header into the corresponding metal push button or switch housing, ensuring the pin layout matches the device’s contacts. Secure the connector mechanically according to the switch manufacturer’s instructions and make electrical connections to the 230V circuit using appropriate insulation and strain relief. Verify polarity and contact seating before powering the circuit.

Recommendations

Use this connector only in systems rated for 230V and follow applicable safety standards. Ensure connections are made by qualified personnel, use proper tools for crimping or soldering where required, and confirm compatibility with the switch’s pin layout prior to installation.
