Photovoltaic mounting tool set Wera 9524 7 pcs essential tools for solar panel installation

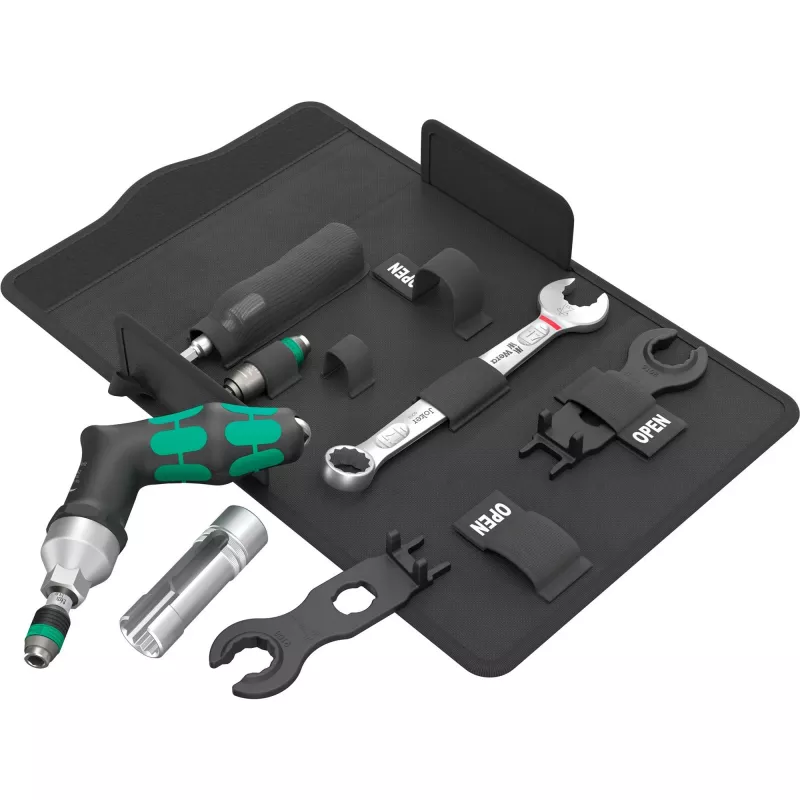

7-piece tool set for installing photovoltaic systems including essential hand tools for mounting solar panels. The set contains an adjustable torque screwdriver with pistol handle (model 7442) for a measuring range of 3.0–6.0 Nm with a digital torque value display, a Rapidaptor bitholding screwdriver with fast-rotating function, a Joker ring spanner, two MC4 connector installation tools and a 1/2" socket with adapter for manual socket wrench inserts. The tools are intended to support accurate fastening and connector installation during photovoltaic panel assembly.

Advantages

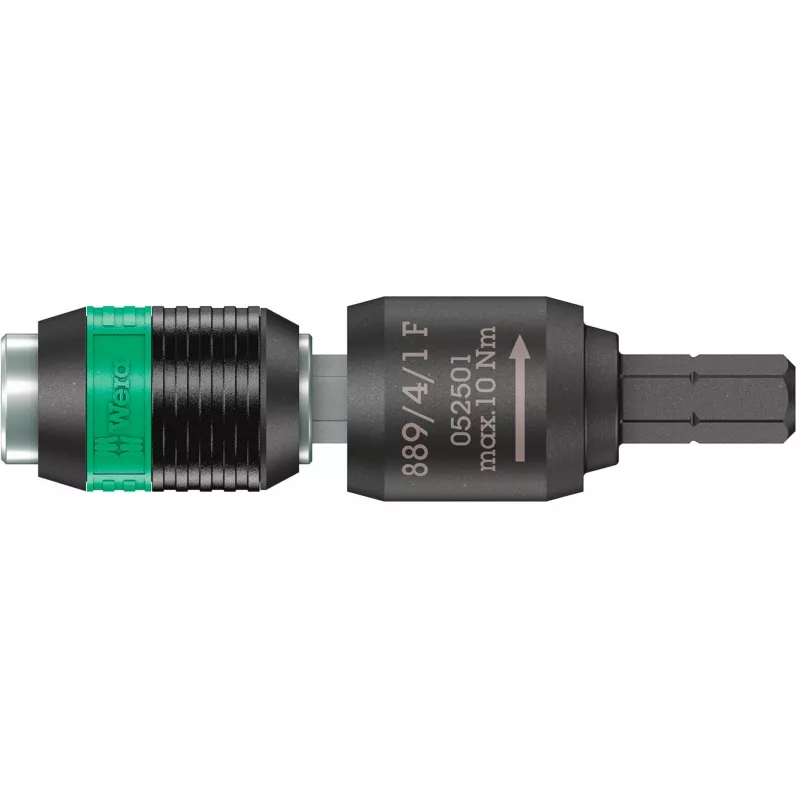

The adjustable torque screwdriver provides precise torque control with an audible signal and a slip-over mechanism when the preset torque is reached. The Rapidaptor bitholding screwdriver enables quick return movement without removing the tool during clockwise torque operation. The Joker ring spanner features a special open-end geometry that improves access in narrow spaces. Dedicated MC4 tools and a 1/2" socket with side wire cutout are included for safe and convenient connector installation. Compact packaging supports easy transport and storage on site.

Suitable for (tasks / use cases)

• Installation and mechanical fastening of photovoltaic panels
• Assembly and tightening of MC4 solar connectors
• Maintenance work requiring controlled torque between 3.0 and 6.0 Nm
• Work in confined spaces where an open-end ring spanner is required

Key specifications

• Set composition: 7 pieces (includes 1 adjustable torque screwdriver, 1 Rapidaptor bitholding screwdriver, 1 Joker ring spanner, 2 MC4 installation tools, 1 socket 1/2" size 17, 1 adapter shaft 1/4" to 1/2")
• Torque screwdriver model: 7442, measuring range 3.0–6.0 Nm
• Torque display: digital
• Socket size: 1/2" size 17 with side wire cutout
• Brand: Wera, MPN: 05136043001, EAN: 4013288228017

How to use

Select the appropriate bit or socket for the fastener or connector, set the adjustable torque screwdriver to the required torque within 3.0–6.0 Nm and operate until the audible signal and slip-over mechanism indicate the preset torque has been reached. Use the Rapidaptor bitholding screwdriver for quick screwdriving with fast-rotating return action during clockwise torque application. Employ the Joker ring spanner where space is limited to improve placement options. Use the MC4 installation tools and the 1/2" socket with side wire cutout to assemble and tighten photovoltaic panel connectors carefully by hand or with the provided adapter shaft for manual socket inserts.

Recommendations

Verify manufacturer torque specifications for panels and connectors before use, check calibration of the torque screwdriver periodically, and follow standard electrical safety procedures when working on photovoltaic systems.
