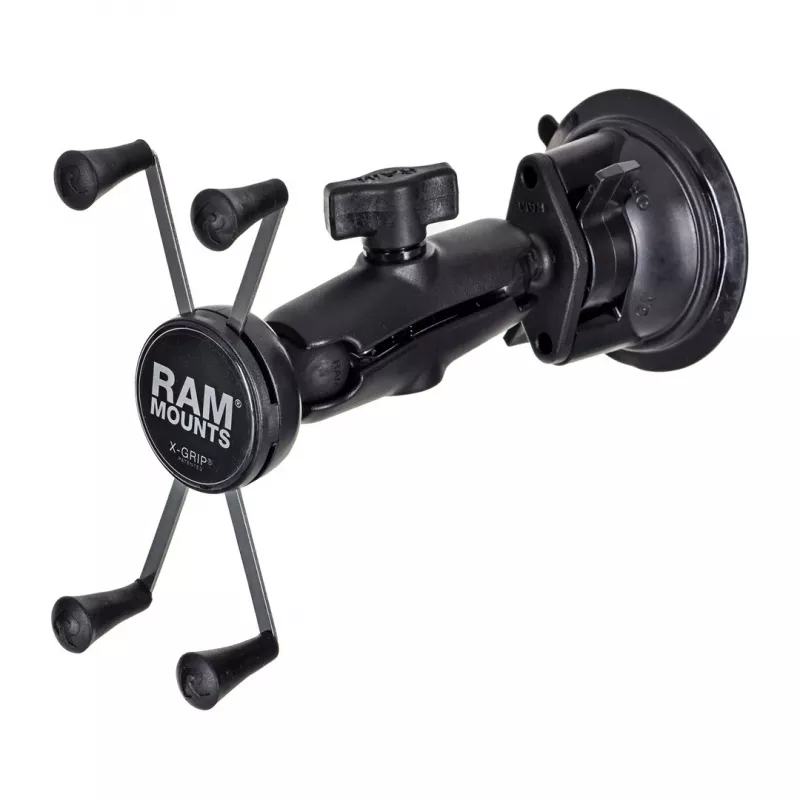

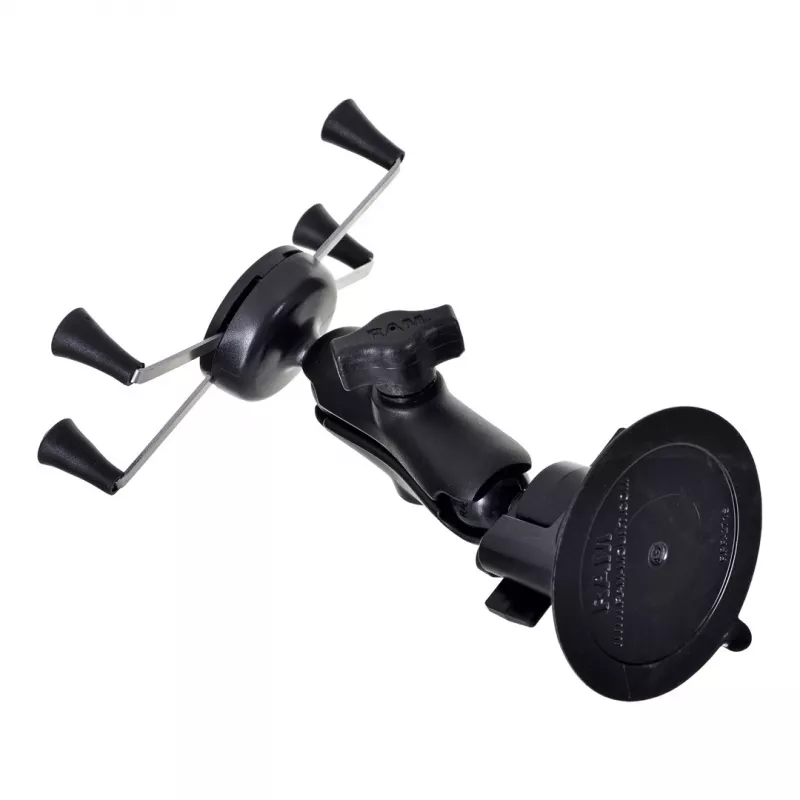

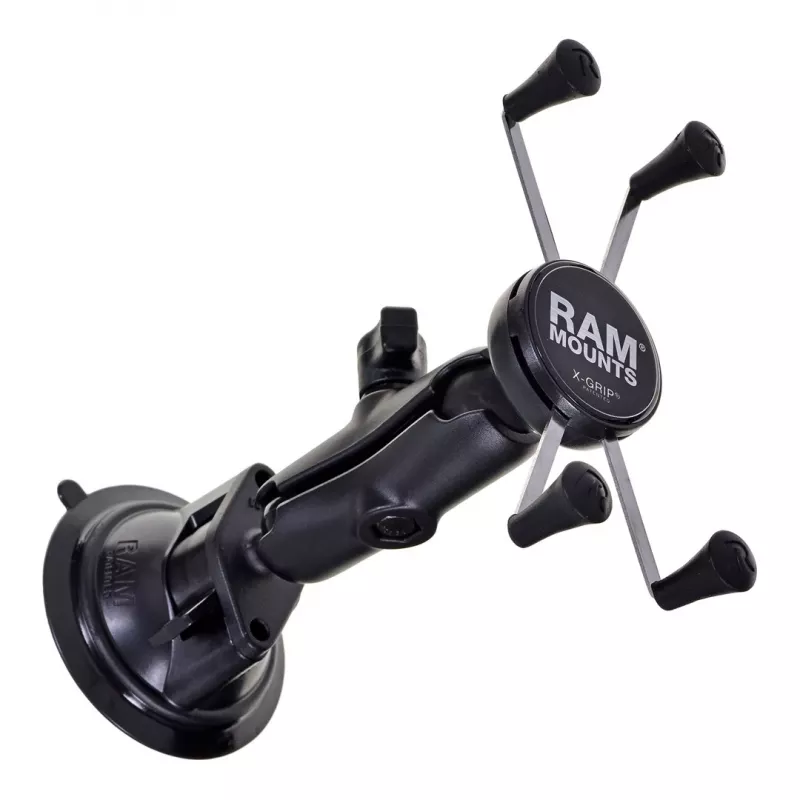

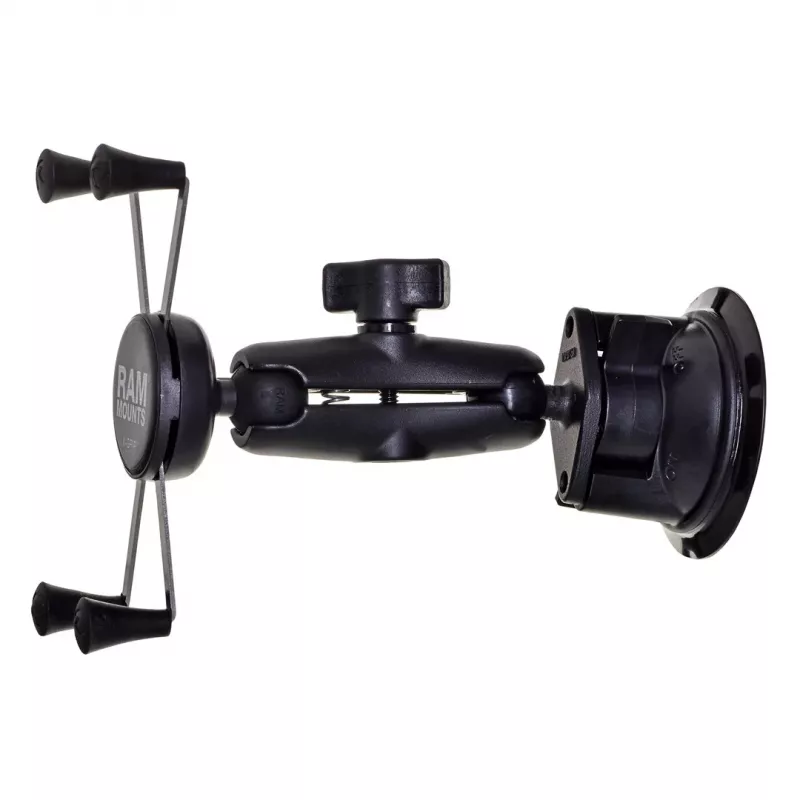

Phone Mount RAM Mounts X-Grip Large with Twist-Lock Suction Cup

The RAM-B-166-UN10U is a phone mount consisting of a twist-lock suction cup base, a standard-length double socket arm, and a universal spring-loaded X-Grip cradle for large phones and phablets. The 3.3" diameter suction cup is designed for strong attachment to glass and other non-porous plastic surfaces and is compatible with adhesive disks. The mount uses a 1" diameter rubber ball-and-socket joint with adjustment points at both ends of the arm to allow precise positioning.

Advantages

The twist-lock suction cup provides a secure hold on smooth surfaces while being removable when needed. The double socket arm with a patented ball-and-socket system enables flexible angle and position adjustment. The spring-loaded X-Grip cradle expands and contracts to fit a variety of large phones and phablets and includes a tether for outdoor use. The mount is lightweight and finished in black for discreet installation in vehicles or on bikes.

Suitable for

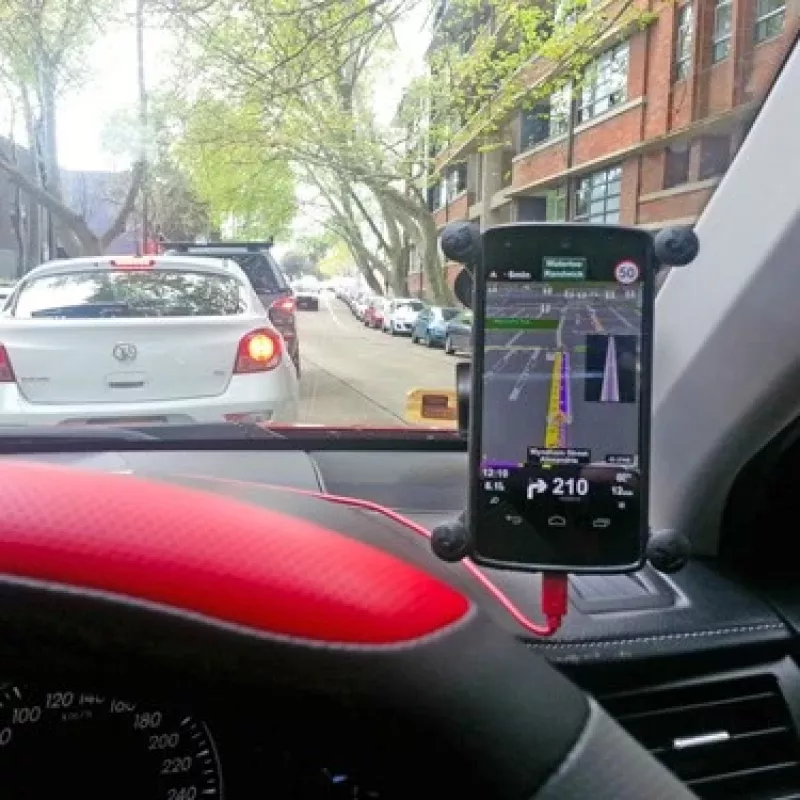

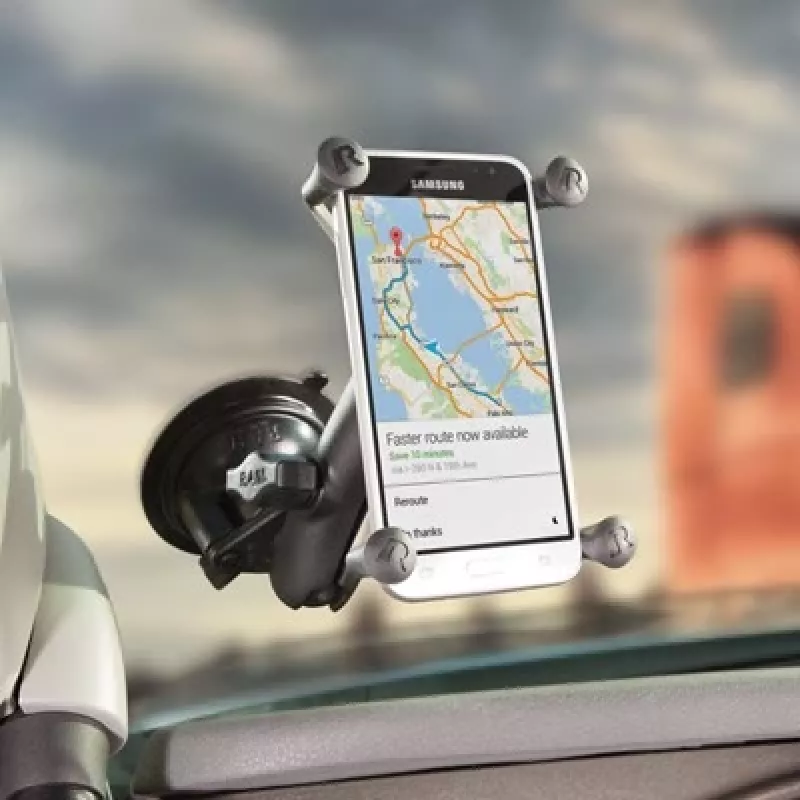

• Mounting large phones and phablets in cars
• Using on bicycles or motorcycles (where suction cup attachment to a smooth surface is possible)
• Temporary mounting on glass or non-porous plastic surfaces

Key specifications

• Suction cup diameter: 3.3 inches
• Ball diameter: 1 inch (rubber ball-and-socket system)
• Cradle type: spring-loaded X-Grip for large phones and phablets
• Arm: STANDARD length double socket arm (adjustable at both ends)
• Color: black
• Weight: approximately 0.3629 kg
• Mount type: suction cup

How to use

Clean and dry the mounting surface (glass or other non-porous plastic) before attaching the suction cup. Place the suction cup on the surface, press firmly, and twist the lock to engage the suction. Fit your phone or phablet into the spring-loaded X-Grip cradle, ensuring the device (with case if used) fits within the cradle's adjustable range. Adjust the angle and orientation by loosening the arm knob, positioning the device using the ball-and-socket joints, and retightening the knob to secure the mount.

Recommendations

Verify the overall dimensions of your device including any case, sleeve, or skin to ensure a proper fit in the X-Grip cradle. For best suction performance on vehicles or bikes, attach to clean, smooth, non-porous surfaces and check the mount periodically during use. The included tether is recommended for additional security during outdoor or mobile activities.
