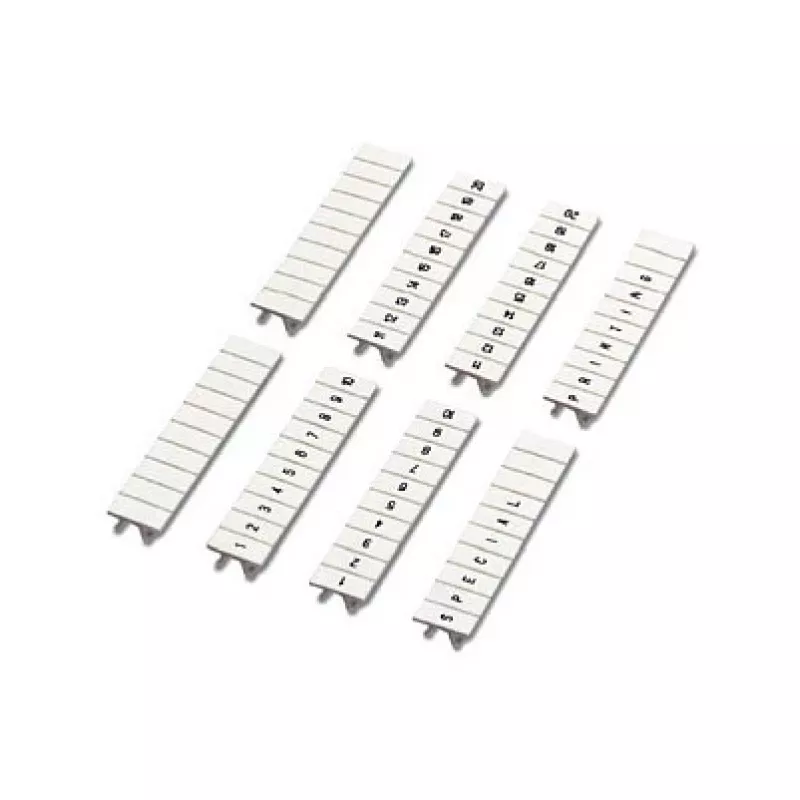

Phoenix Contact ZB 5-10 Zack Marker Strip, White, 5 mm Pitch, Consecutive Numbers 1-10, 100 Markers (10 Strips of 10)

The Phoenix Contact ZB 5-10 is a high-quality terminal block marker strip designed for clear and permanent identification of terminal blocks in industrial control systems. This white marker strip features a 5 mm pitch and is pre-printed with consecutive numbers 1 through 10, making it ideal for quick and error-free wiring. Each pack contains 10 strips, providing a total of 100 markers.

Advantages

These marker strips offer excellent legibility and durability. Made from polyamide (PA), they are resistant to wiping, UV radiation, and solvents, ensuring long-lasting performance even in harsh environments. The snap-on mounting allows for fast and secure attachment to terminal blocks with a pitch of 5.0 mm or 5.2 mm. Additionally, the markers are halogen-free, silicone-free, and comply with RoHS and REACH regulations.

Suitable for

• Industrial control cabinets
• Building automation systems
• Process control panels
• Electrical distribution systems

Key specifications

• Product Type: Zack Marker Strip
• Series: ZB
• Marker Pitch: 5 mm
• Color: White
• Legend: Consecutive numbers 1-10
• Material: Polyamide (PA)
• Number of Markers per Pack: 100
• Number of Strips per Pack: 10
• Markers per Strip: 10
• Mounting Type: Snap-on
• Compatible Terminal Block Pitch: 5.0 mm / 5.2 mm
• Lettering Field Width: 4.95 mm
• Lettering Field Height: 5.15 mm
• Operating Temperature Range: -40 °C to 100 °C
• Flammability Rating: UL 94 V2
• Resistance Features: Wipe, UV, Solvent
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Halogen-free: Yes
• Silicone-free: Yes

Recommendations

For optimal identification, pair these marker strips with Phoenix Contact terminal blocks of the same pitch. Ensure the mounting surface is clean and dry before application. Store in a cool, dry place away from direct sunlight.
