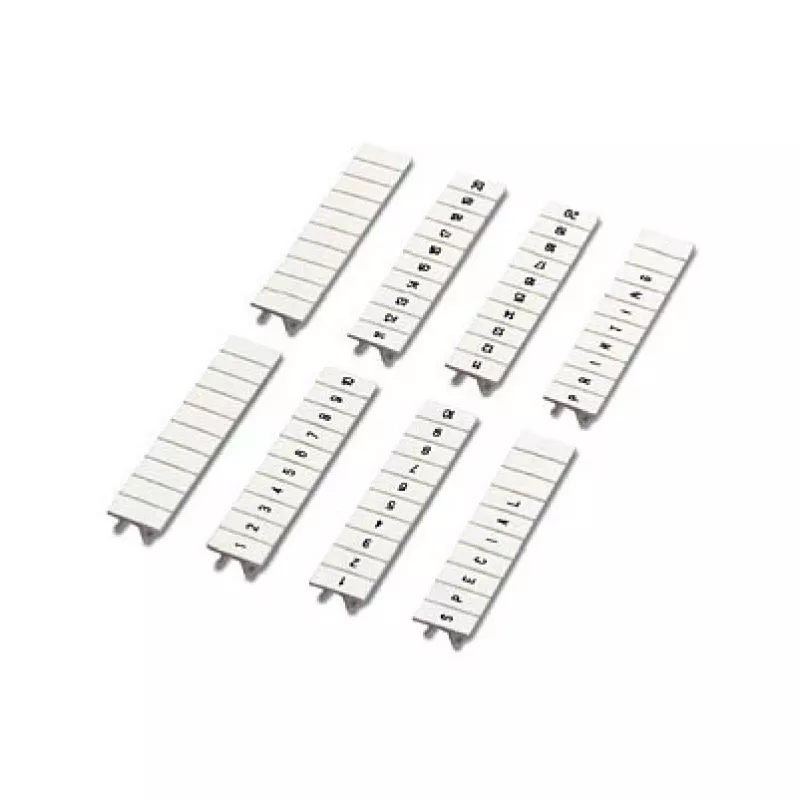

Phoenix Contact UC-TM Terminal Block Marker - White - 5 mm - 960 Pieces

The Phoenix Contact UC-TM terminal block marker is a high-quality, unlabeled marker designed for universal use with terminal blocks of 5.2 mm width. This pack contains 10 sheets with 96 markers each, providing a total of 960 markers. Made from polyamide (PA) with a flammability rating of UL 94 V2, these markers are halogen-free and RoHS compliant. They snap onto the universal marker groove and are compatible with various printing systems including BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, and THERMOMARK CARD. The lettering field measures 4.6 x 10.5 mm, and the operating temperature range is -40°C to 100°C.

Advantages

These markers offer reliable identification for terminal blocks, ensuring clear labeling in industrial environments. The snap-on mounting is quick and secure, and the markers are suitable for high-temperature applications. Their halogen-free and RoHS-compliant construction meets modern environmental standards.

Suitable for

• Industrial control cabinets
• Building automation systems
• Electrical installations requiring clear terminal identification
• Use with Phoenix Contact terminal blocks of 5.2 mm width

Key specifications

• Product Type: Terminal Block Marker
• Series: UC-TM
• Color: White
• Material: Polyamide (PA)
• Labeling Status: Unlabeled
• Compatible Terminal Block Width: 5.2 mm
• Marker Width: 5 mm
• Number of Markers per Sheet: 96
• Number of Sheets per Pack: 10
• Total Markers per Pack: 960
• Mounting Type: Snap-on
• Lettering Field Dimensions: 4.6 x 10.5 mm
• Operating Temperature Range: -40°C to 100°C
• Flammability Rating: UL 94 V2
• RoHS Compliant: Yes
• Halogen-free: Yes

Recommendations

For optimal results, use with Phoenix Contact printing systems such as BLUEMARK ID COLOR or THERMOMARK PRIME. Ensure the terminal block width is 5.2 mm for proper fit.
