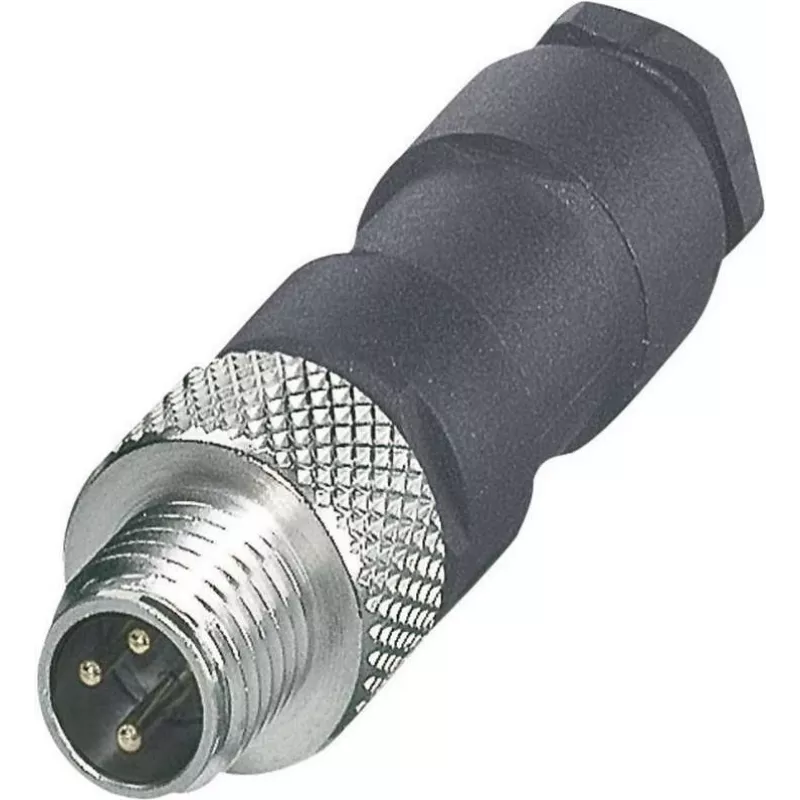

Phoenix Contact SACC-M 8MS-4CON-M-SW M8 Male Field-Wireable Connector, Screw Termination, Shielded, IP67, 4-Pos, Pg7 1501265

M8 sensor/actuator connector with screw termination, engineered for reliable signal and power transmission in industrial automation. This field-wireable male connector features a straight design and shielded housing, ensuring robust performance in demanding environments.

Advantages

The nickel-plated zinc die-cast housing offers excellent mechanical protection and corrosion resistance. Screw terminals allow fast, tool-free wiring without special crimping tools, reducing installation time. Gold-plated contacts guarantee low contact resistance and long-term stability, while the IP67 rating (when mated) ensures protection against dust and temporary immersion.

Suitable for

• Sensor and actuator connections in factory automation
• Field assembly of M8 cables for machinery and robotics
• Applications requiring shielded connectors to prevent electromagnetic interference
• Harsh industrial environments where IP67 protection is mandatory

Key specifications

• Connector type: M8 male, straight, 4-position
• Termination: Screw connection, max conductor cross-section 0.5 mm² (AWG 20)
• Cable gland: Pg7, for cable diameter 4–6 mm
• Rated voltage/current: 48 V AC/DC, 4 A
• Operating temperature: -40 °C to +85 °C
• Housing: Zinc die-cast, nickel-plated; contacts: CuZn, Ni/Au plated

Recommendations

For best results, use with shielded M8 cables within the specified diameter range. Ensure proper tightening of the Pg7 gland to maintain IP67 sealing. Pair with Phoenix Contact M8 female connectors for complete cable assemblies.
