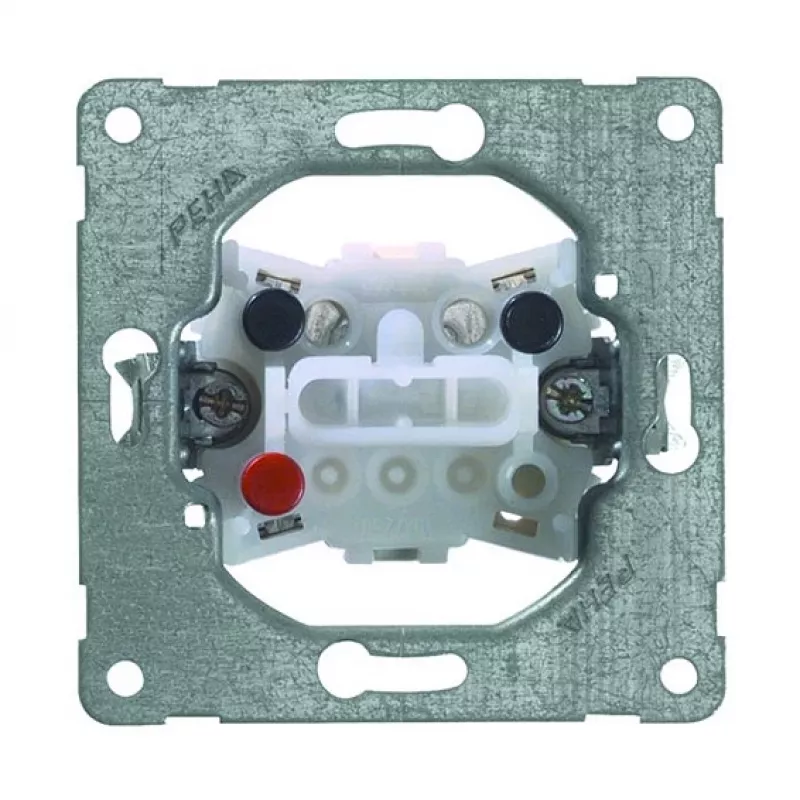

PEHA 516 UP Flush-Mounted Two-Way Switch 10A 250V AC (White)

Built around a proven modular mechanism, the PEHA 516 UP delivers reliable on/off and two-way switching with a rated current of 10 A at 250 V AC. This flush-mounted unit works seamlessly with a wide range of cover plates and rockers, making it a versatile choice for both residential and light commercial installations.

Overview

The 516 UP serves as both a single-pole on/off switch and a changeover switch, giving installers the flexibility to control a lighting circuit from two separate locations. Its compact construction and screw terminals accept solid conductors from 1.5 to 2.5 mm², ensuring straightforward wiring in standard flush-mounted boxes. Supplied without a cover plate or rocker, this mechanism lets you coordinate the finish with your preferred design.

What stands out

• Dual functionality – operates as an on/off switch or a two-way switch
• 10 A switching capability suitable for lighting and small loads
• Halogen-free thermoplastic housing for safe and durable insulation
• Compatible with DIN 49073-1 standard mounting boxes
• More than 40,000 switching cycles for long-term reliability

Technical details

• Type: Two-way switch mechanism
• Mounting: Flush-mounted (UP)
• Rated voltage: 250 V AC, 50/60 Hz
• Rated current: 10 A
• Pole count: 1-pole
• Connection: Screw terminals
• Conductor cross-section: 1.5 - 2.5 mm² (solid)
• Housing material: Thermoplastic, halogen-free
• Protection class: IP20
• Installation depth: approx. 32 mm
• Standards: VDE compliant

Our verdict

The PEHA 516 UP is a solid choice for electricians seeking a dependable switching mechanism that adapts to both simple and two-way control layouts. Its robust construction and ample terminal capacity make installation easy, while the modular system keeps the final look tidy and adaptable.
