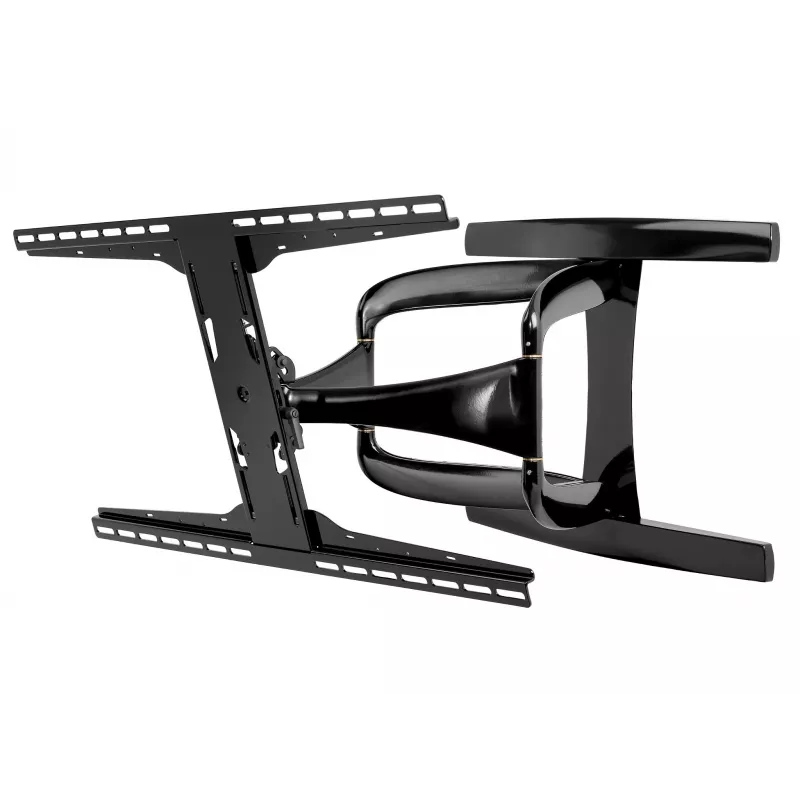

Peerless AV Designer Series SUA771PU Articulating Wall Mount for 37-75 inch Displays, Black

The Peerless AV Designer Series SUA771PU is a premium articulating wall mount designed for medium to large flat-panel displays. Engineered with dual-arm construction, it provides smooth extension, tilt, and swivel adjustments for optimal viewing angles. Ideal for commercial and residential installations, this mount supports displays from 37 to 75 inches and up to 68 kg (150 lbs).

Advantages

Full-motion flexibility with ±90° swivel and +15° to -5° tilt allows perfect positioning. Integrated cable management keeps wires organized and concealed. Post-installation leveling with ±5° roll adjustment ensures a professional finish. Security screws provide added protection against theft.

Suitable for

• Flat-panel TVs and monitors 37-75 inches
• Home theaters, conference rooms, digital signage
• Wood stud, concrete, and cinder block walls

Key specifications

• Display Size Compatibility: 37-75 inches (94-190.5 cm)
• Weight Capacity: 68 kg (150 lbs)
• VESA Compatibility: 200x100 to 600x400 mm
• Tilt Range: +15° to -5°
• Swivel Range: ±90° (screen size dependent)
• Extension from Wall: 7.6 cm (3 in) to 64.8 cm (25.5 in)
• Color: Black
• Material: Steel
• Number of Displays Supported: 1
• Wall Plate Dimensions: 44.5 x 25.4 cm (17.5 x 10 in)
• Mounting Hardware Included: Yes (wood stud, concrete, cinder block)

Recommendations

For best results, ensure your wall can support the combined weight of the mount and display. Professional installation is recommended for concrete or cinder block walls.
