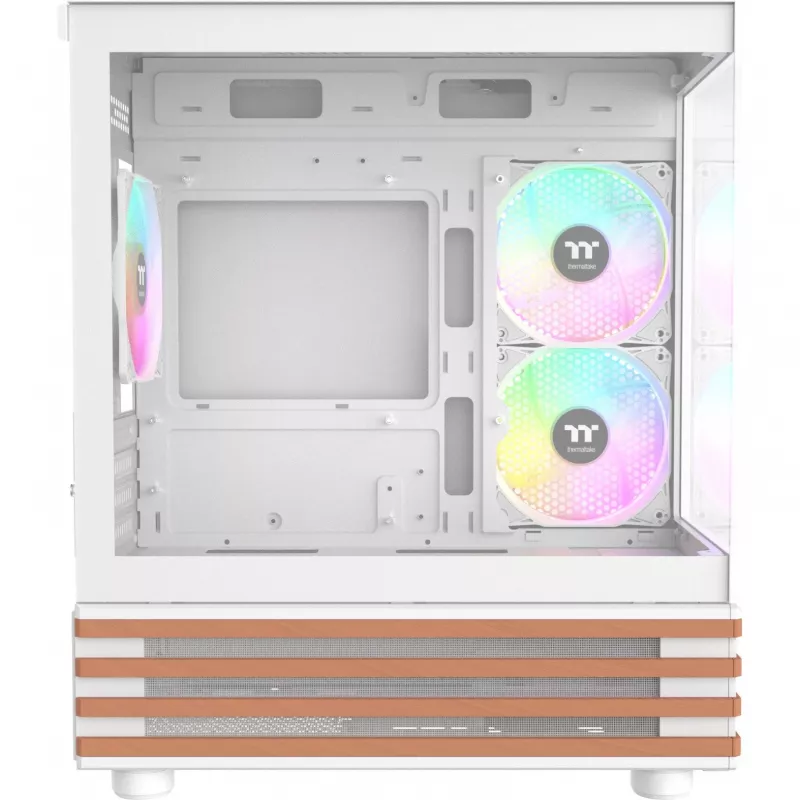

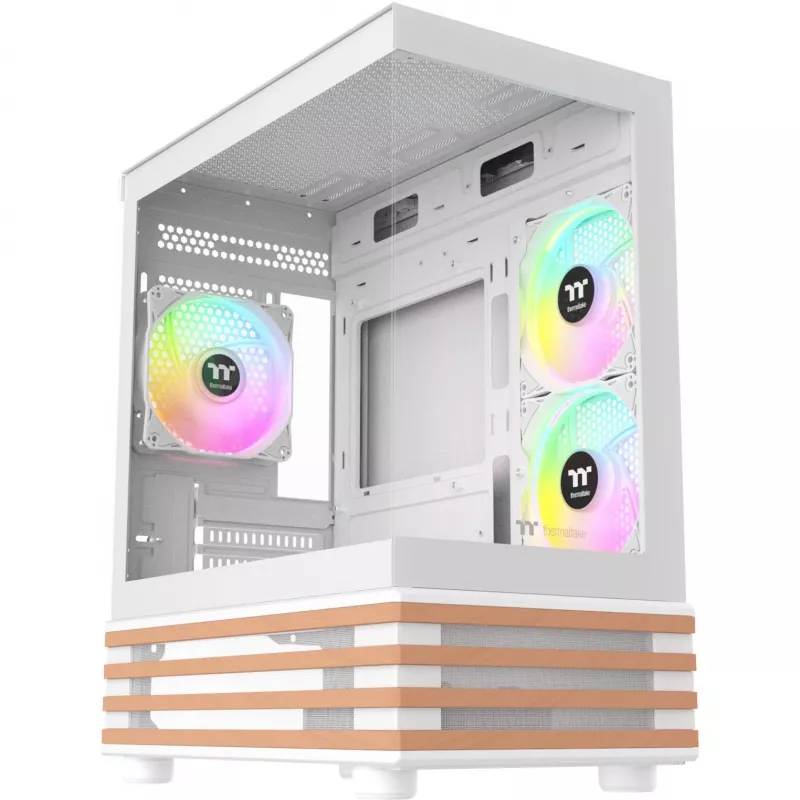

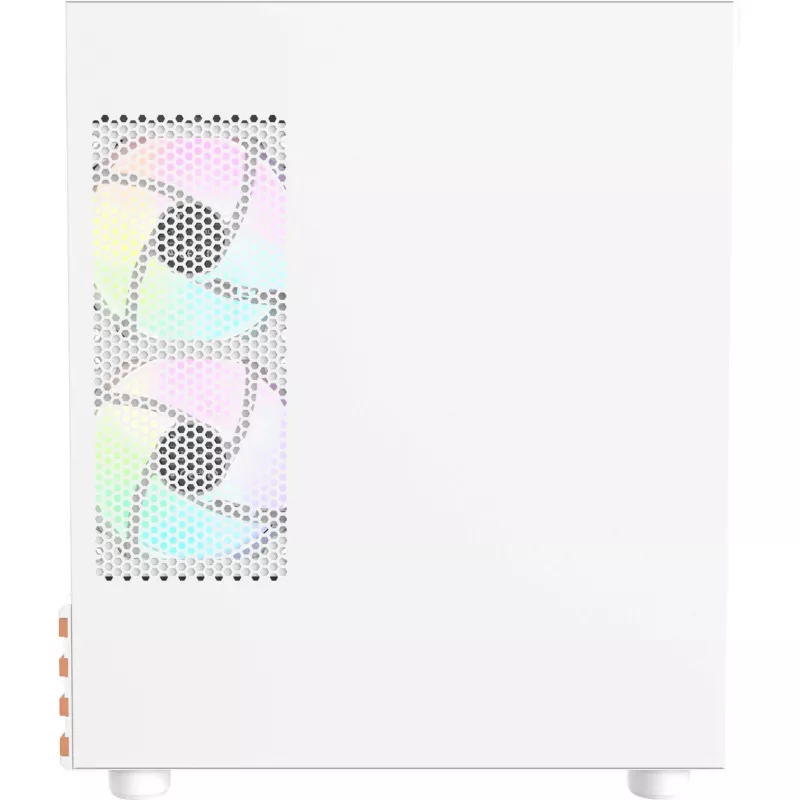

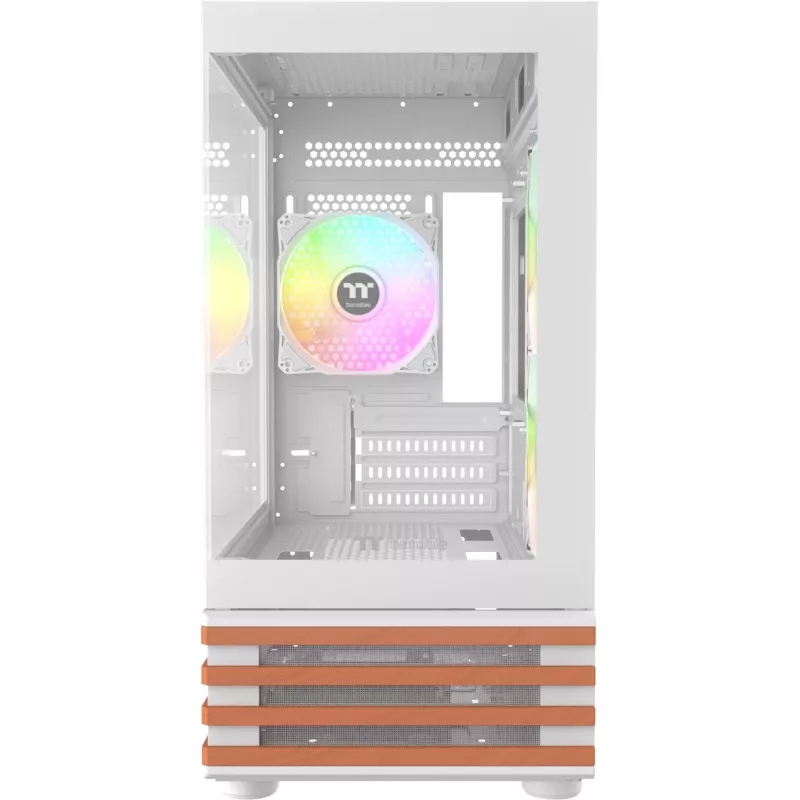

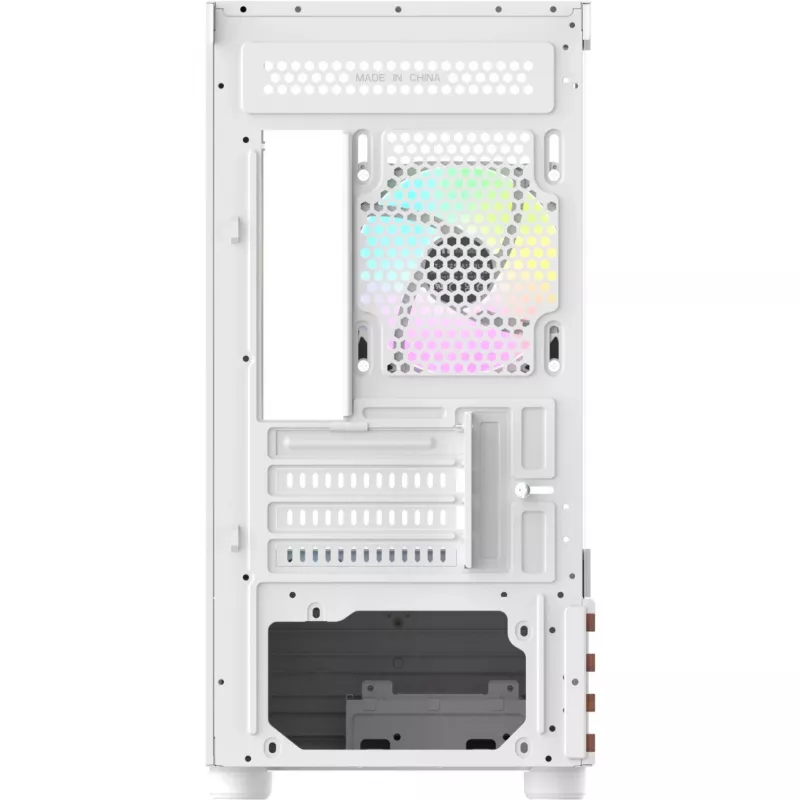

PC Micro Tower case THERMALTAKE View 170 WS ARGB Snow — Micro ATX, white, 2x120mm side, 1x120mm rear, PSU bottom, supports 2.5 inch/3.5 inch

The View 170 WS ARGB Snow Micro Chassis is an M-ATX computer case with tempered glass front and left panels and wood-accented styling. It ships with two 120 mm ARGB Lite reverse fans mounted on the motherboard side and one 120 mm ARGB Lite fan at the rear. The case supports synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome via a 5V addressable RGB header and can accommodate up to seven 120 mm fans in total. A top-mounted radiator up to 280 mm/240 mm is supported.

Advantages

The combination of tempered glass front and side panels provides clear internal visibility while the wood accents add a distinctive, minimalist look. Pre-installed ARGB lighting and fans simplify initial setup and allow software control through compatible motherboard utilities. The chassis supports compact micro ATX and mini-ITX builds while offering space for a relatively large GPU and multiple cooling options.

Key specifications

• Form factor: micro ATX, Mini-ITX
• Included fans: 2 × 120 mm ARGB Lite reverse fans (motherboard side) + 1 × 120 mm ARGB Lite rear fan
• Maximum fans supported: up to 7 × 120 mm
• Radiator support (top): 280 mm / 240 mm
• Maximum CPU cooler height: 160 mm
• Maximum GPU length: 340 mm
• Maximum PSU length: 180 mm
• Drive bays: up to 2 × 2.5" SSD and 1 × 3.5" HDD
• Front/side panels: tempered glass
• Materials: SPCC, tempered glass
• Color: White
• Front I/O: 2 × USB 3.0, HD audio

How to use

Install a micro ATX or mini-ITX motherboard and mount the CPU cooler (maximum height 160 mm), GPU (up to 340 mm) and power supply (up to 180 mm) according to the case layout. Connect the included ARGB fans to the 5V addressable RGB header on a compatible motherboard to enable lighting control through ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light or ASRock Polychrome. Fit additional 120 mm fans or a top radiator (280/240 mm) as required for improved airflow. Install storage drives in the provided mounts: up to two 2.5" SSDs and one 3.5" HDD. Use the top-panel I/O for quick access to two USB 3.0 ports and audio.

Recommendations

For full ARGB control, connect the included fans to a motherboard with a 5V addressable RGB header and enable the corresponding RGB software from ASUS, GIGABYTE, MSI or ASRock. Ensure component dimensions (CPU cooler height, GPU and PSU length) fit within the specified limits before purchase.
