PC Case Zalman Z10 DS Midi Tower Black

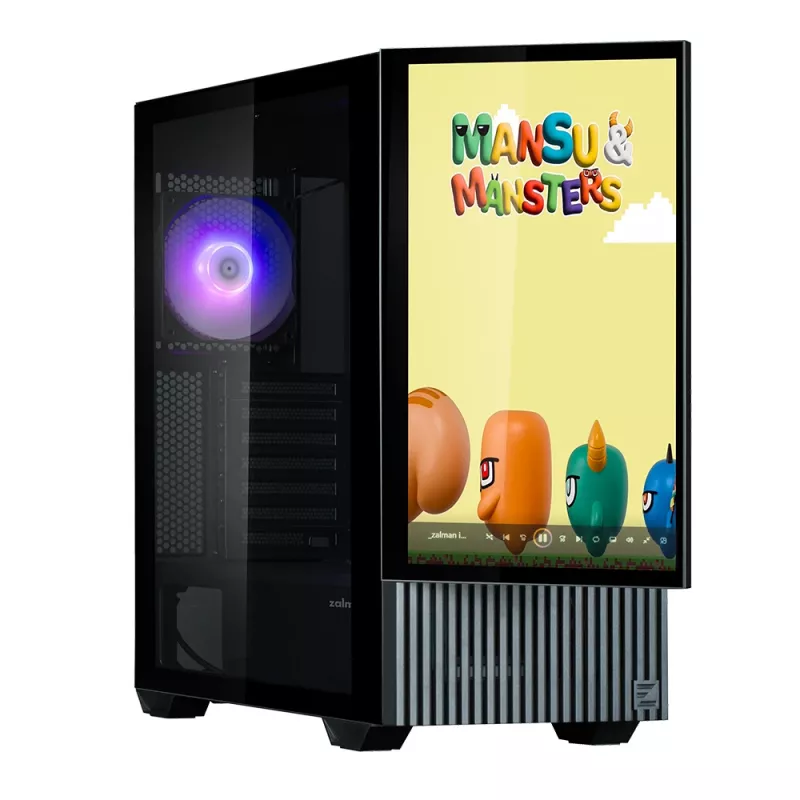

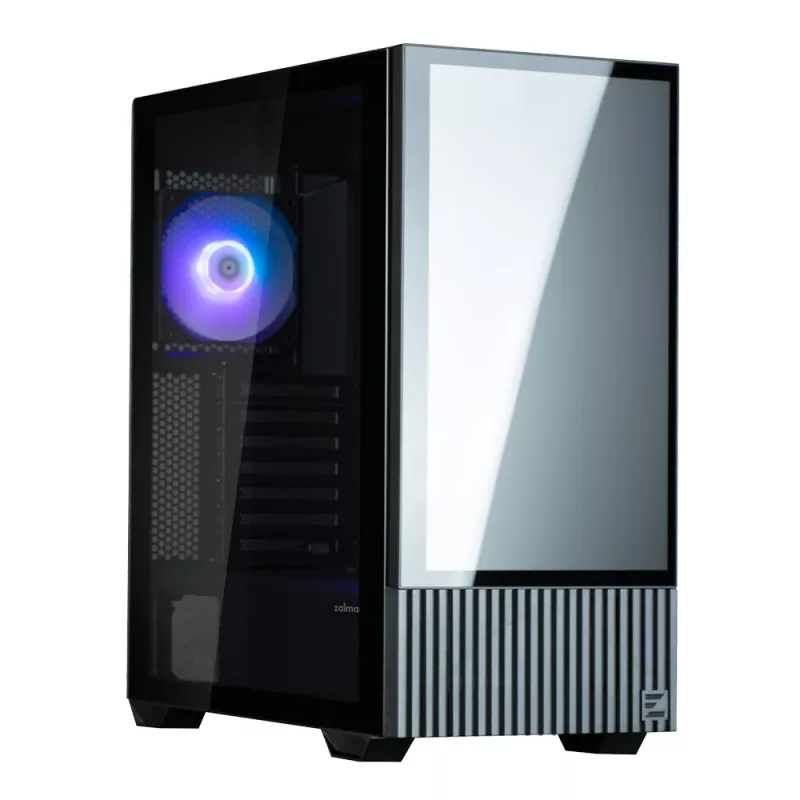

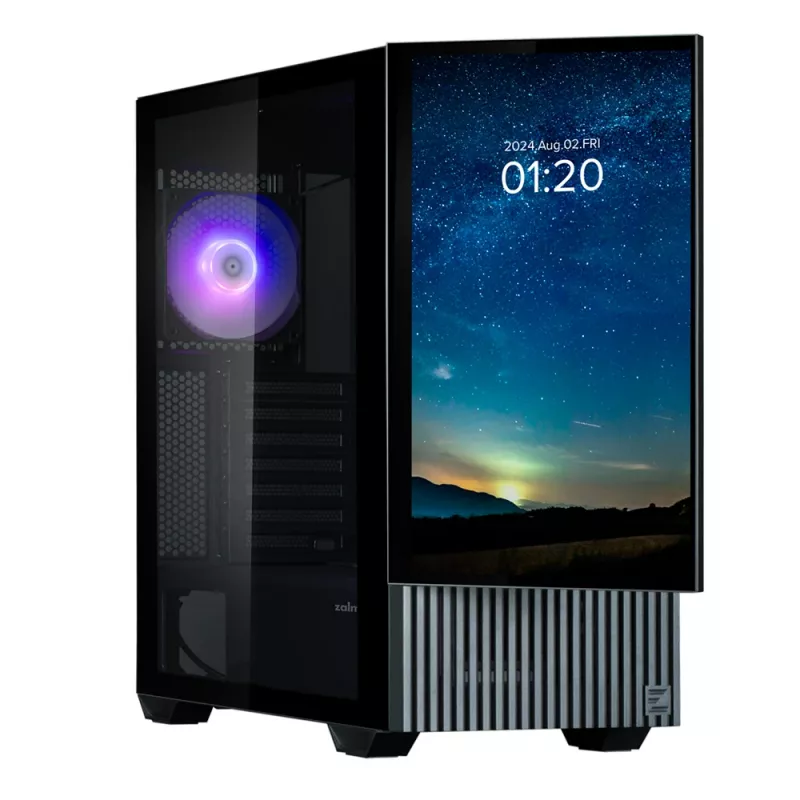

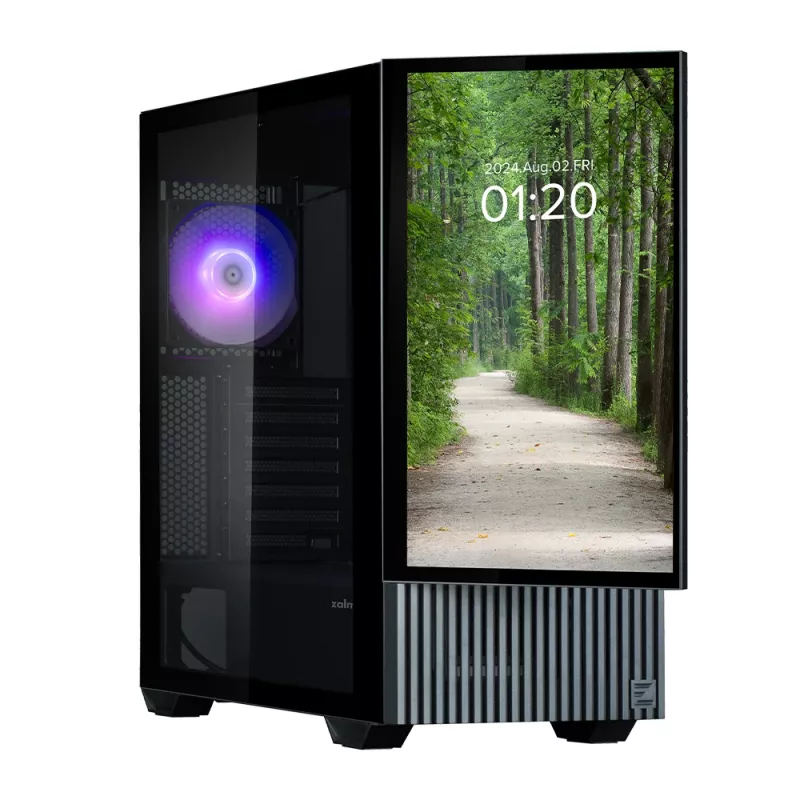

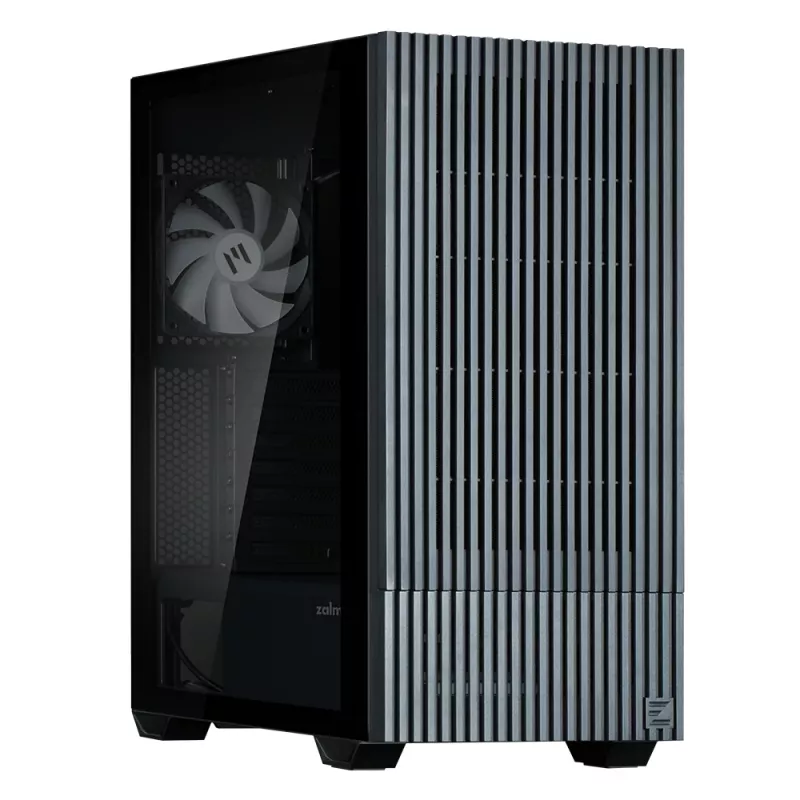

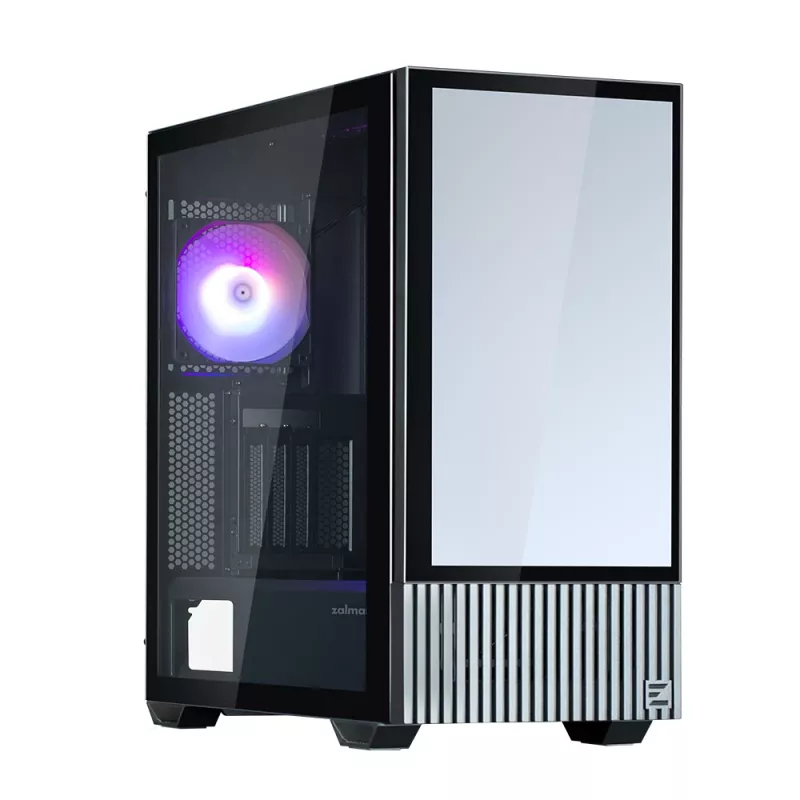

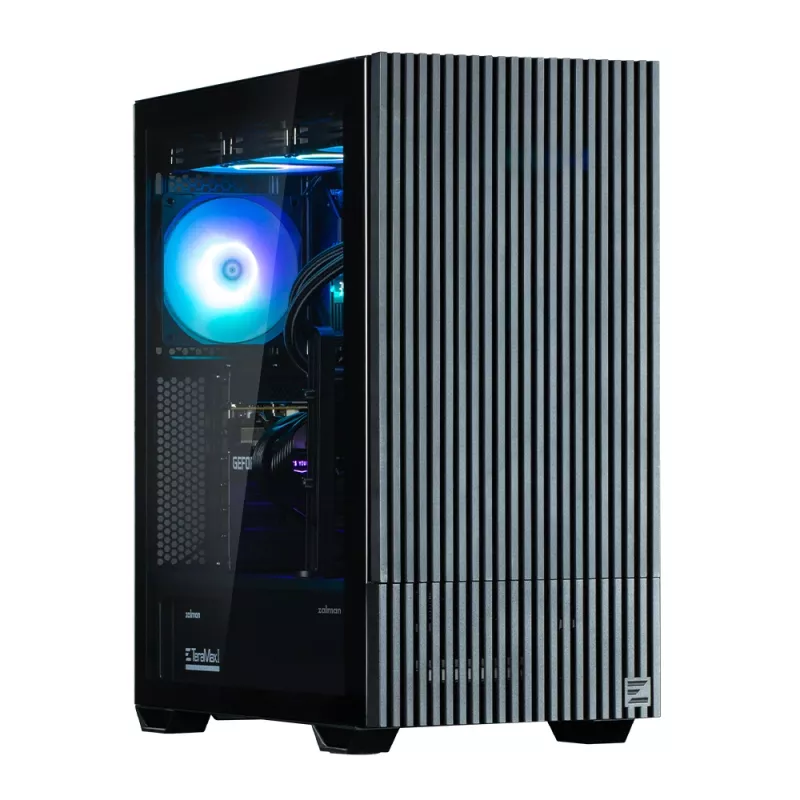

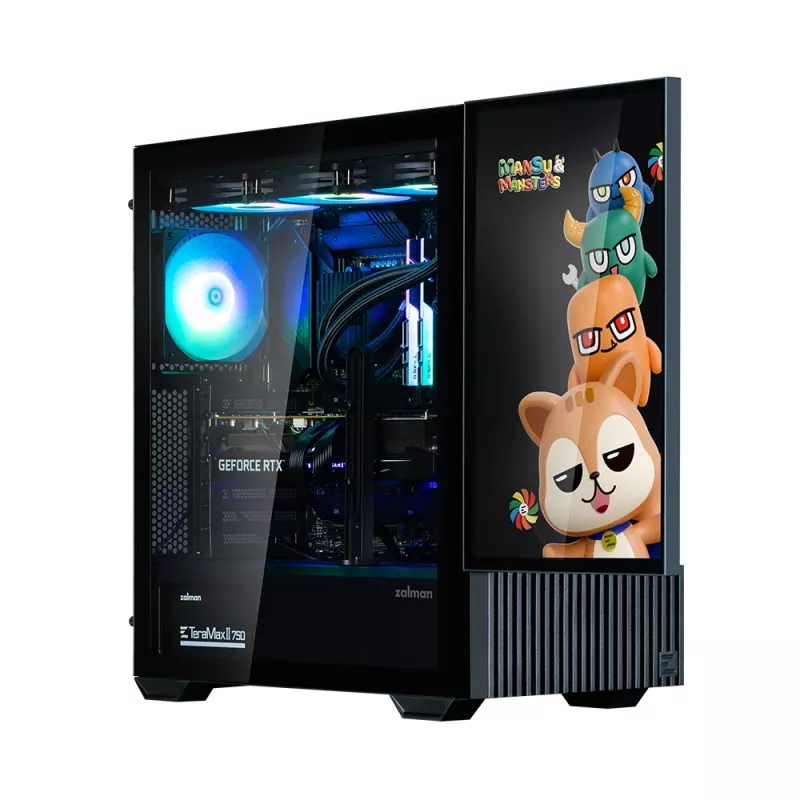

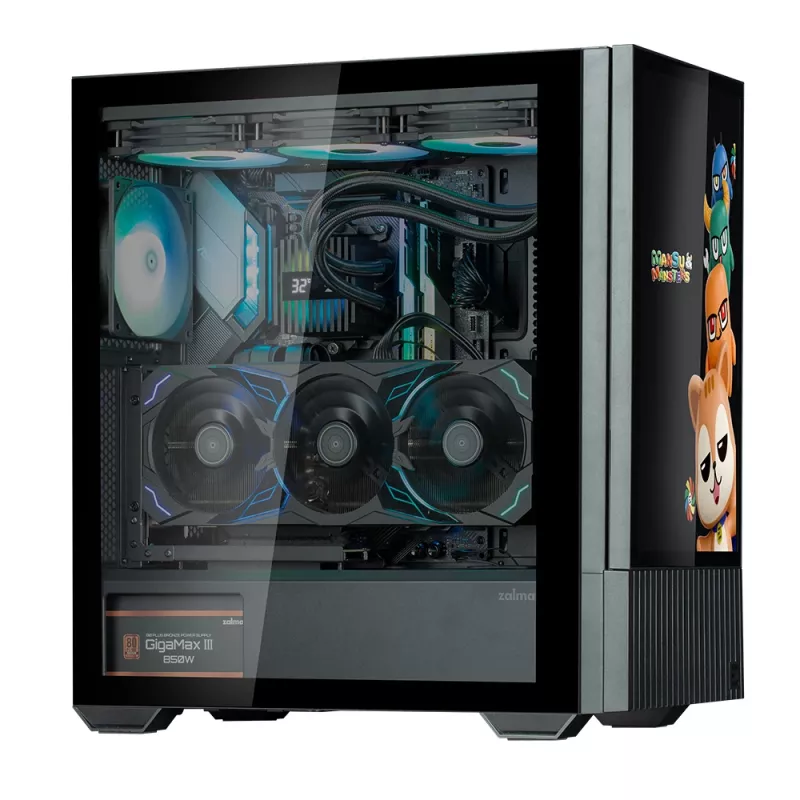

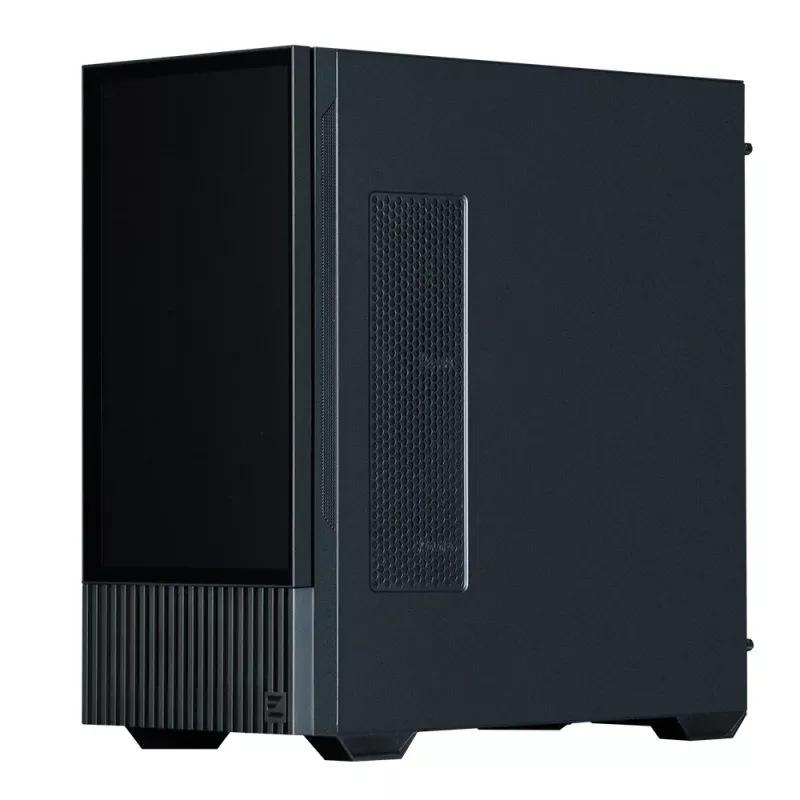

The Zalman Z10 DS Midi Tower Black is a PC case with an integrated 15.6-inch Full HD display and a removable monitor stand, designed to combine a slim monitor panel with a conventional mid-tower chassis. The case features an angle-adjustable display panel, a clean front bezel for optimal airflow when used as a standalone monitor, 4mm tempered glass side panel with hand-screws for easy removal, and multiple cable management openings including a 22 mm space for routing cables. The chassis supports ATX, micro-ATX and mini-ITX motherboards and provides room for full-size components while keeping a compact footprint (width 220 mm, depth 474 mm, height 488 mm).

Advantages

The case integrates a large Full HD monitor with the chassis, eliminating the need for a separate display and offering an angle-adjustable panel and included monitor stand. Expandability is strong for a mid-tower: support for up to 395 mm GPU length, 173 mm CPU cooler height, two 3.5" drives and four 2.5" drives, and multiple radiator and fan mounting options. Practical features include front and rear I/O (USB 3.0 and USB 3.1 Type-C, audio jacks, power/reset, HDD and power LEDs), a vertical GPU bracket with height adjustment, preinstalled fans (2 × 120 mm front, 1 × 120 mm ARGB rear) and a tempered glass side panel with tool-free hand-screws for quick access.

Suitable for

• Home and office builds requiring an integrated monitor and compact mid-tower case
• Gaming systems needing support for long GPUs (up to 395 mm) and multiple fans/radiators
• Content-creation or multitasking setups where a built-in 15.6" Full HD display is useful
• Users who prioritize cable management and easy access via a removable tempered glass panel

Key specifications

• Form factor: Midi Tower (ATX / mATX / Mini-ITX)

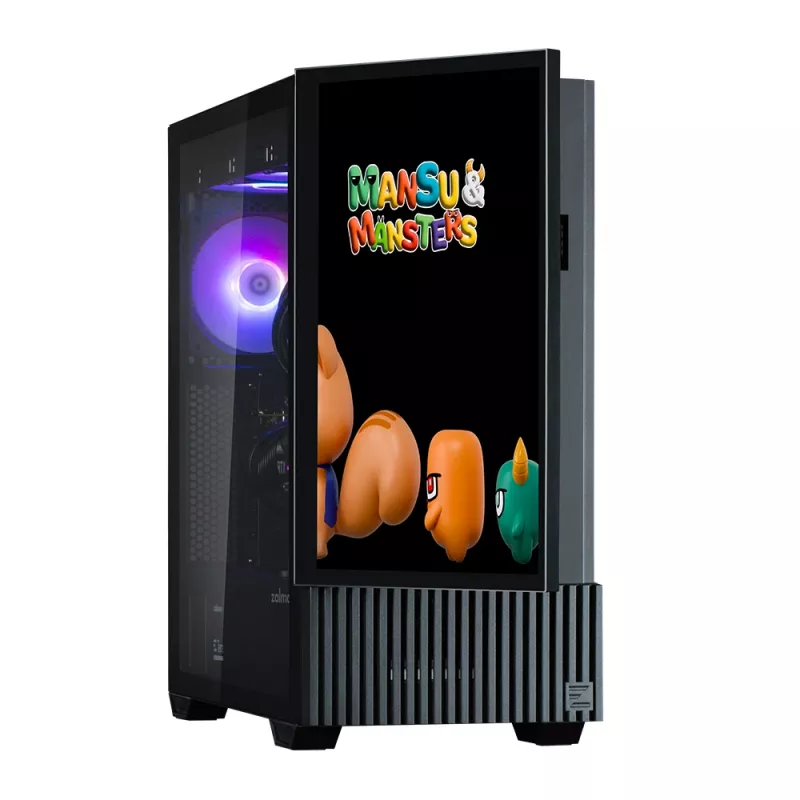

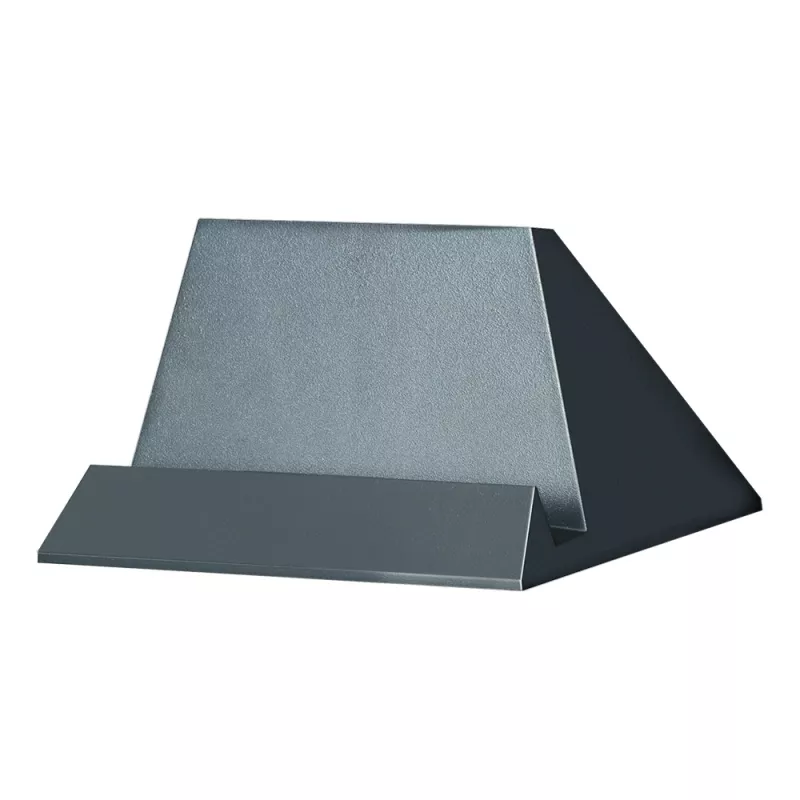

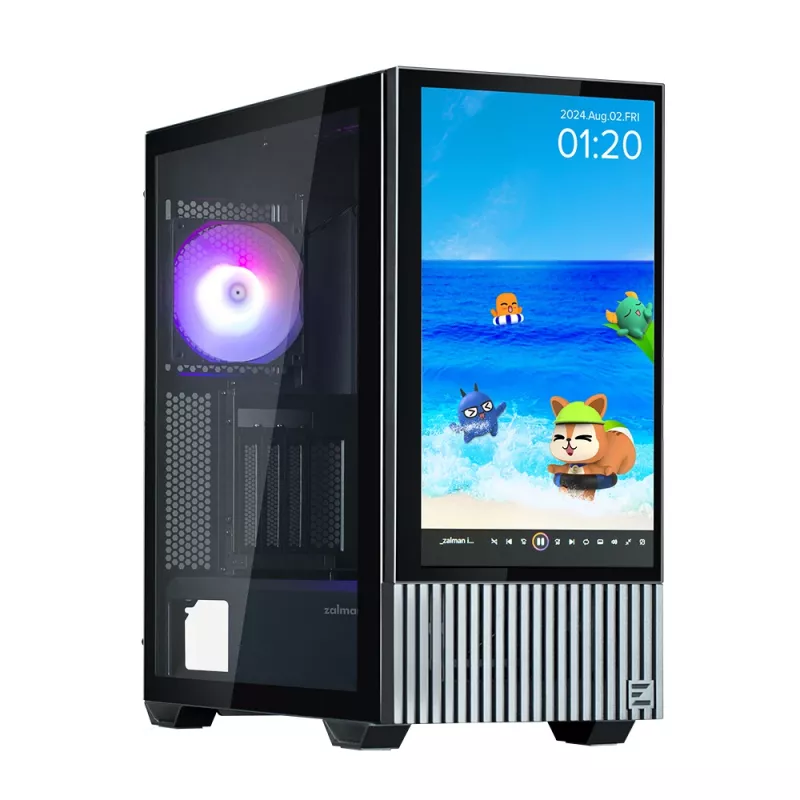

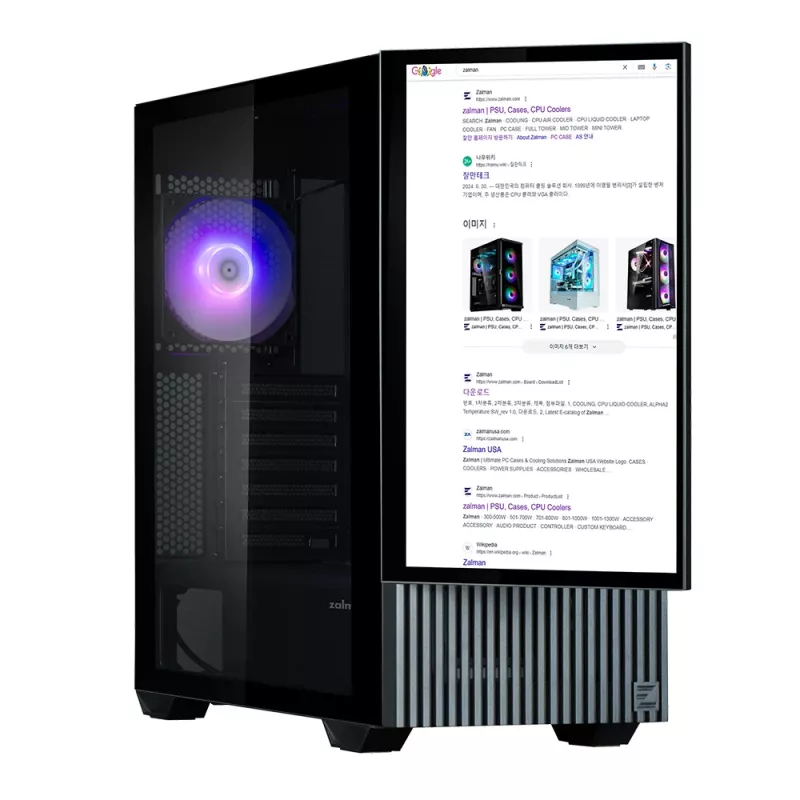

• Display: 15.6" Full HD integrated panel; angle-adjustable; monitor stand included

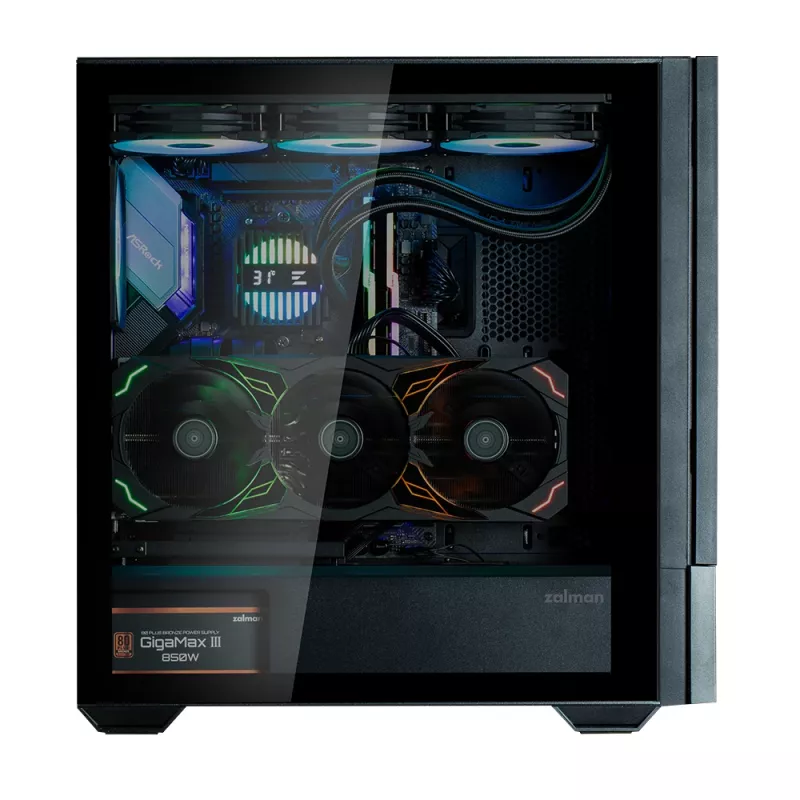

• Side panel: 4 mm tempered glass with hand-screws
• Drive bays: HDD x2 (3.5"), SSD x4 (2.5")
• GPU support: up to 395 mm (vertical GPU bracket included)
• CPU cooler max height: 173 mm
• PSU max length: 200 mm

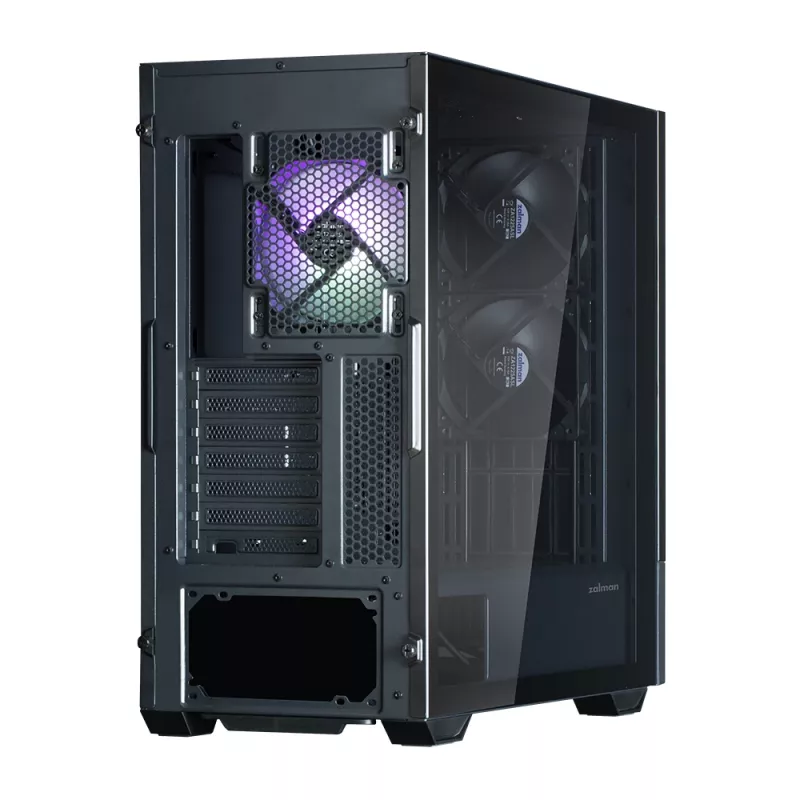

• Pre-installed fans: Front 2 × 120 mm (non-LED), Rear 1 × 120 mm (ARGB)
• Fan support (maximum): up to 11 fans — Front 3×120/3×140, Top 3×120/2×140, Rear 1×120, Bottom 2×120, Side 2×120
• Radiator support: Front/Top 120/140/240/280/360 mm, Rear 120 mm
• I/O ports: Power, Reset, HDD/Power LED, Headphone jack, Microphone jack, USB 3.0 ×2, USB 3.1 Type-C ×1, LED button

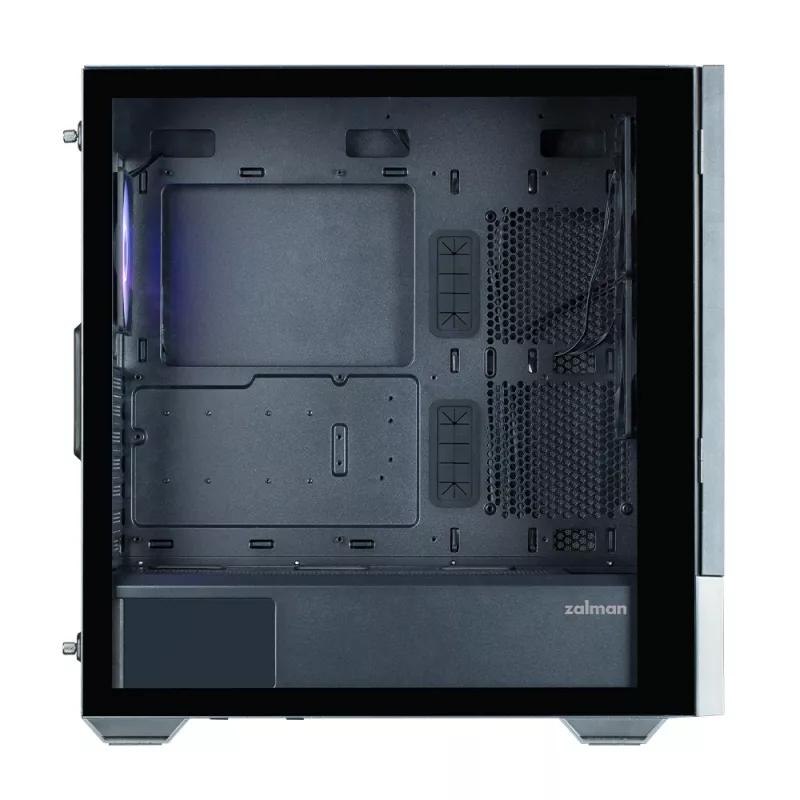

• Cable management: 22 mm routing space
• Materials & colour: Steel/plastic/tempered glass, Black
• Weight: 9.5 kg

How to use

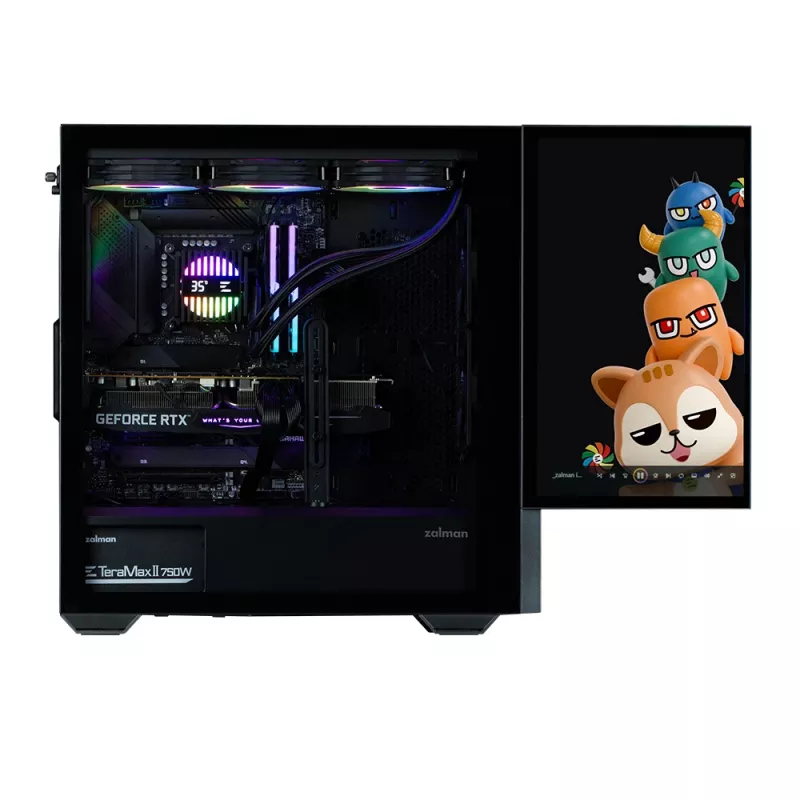

Install the motherboard (ATX, mATX or Mini-ITX) following standard mounting standoffs and route cables through the 22 mm management space. Mount storage drives into the 3.5" and 2.5" bays, install the PSU in the rear compartment (maximum length 200 mm) and fit the CPU cooler and GPU within the stated clearance limits (CPU cooler up to 173 mm, GPU up to 395 mm). Use the included vertical GPU bracket and support bracket to install a GPU vertically if required, adjusting the bracket height to align the card precisely. Connect front-panel I/O including USB and audio, and use the pre-installed fans; add radiators or additional fans according to supported positions if liquid cooling is desired.

Recommendations

For optimal airflow and temperature control, maintain unobstructed front intake and top exhaust areas, secure the tempered glass panel with the hand-screws after cable routing, and verify PSU and GPU clearances before final assembly. When using the integrated 15.6" display as a standalone monitor, attach the front bezel/stand as provided and ensure display cables and power are connected according to the manual.
