PC Case Thermaltake View 270 TG Midi Tower Black

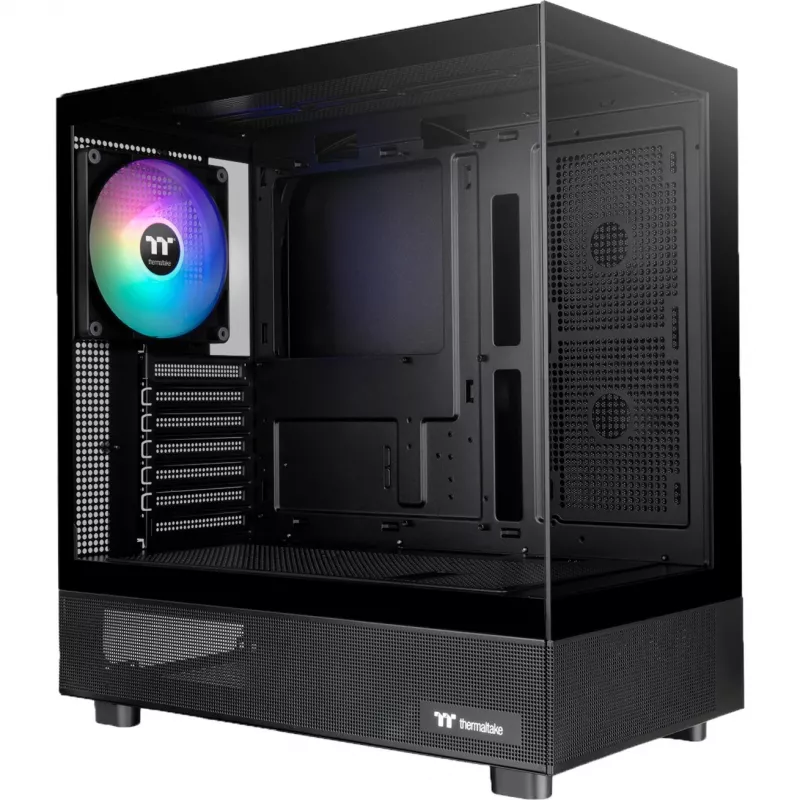

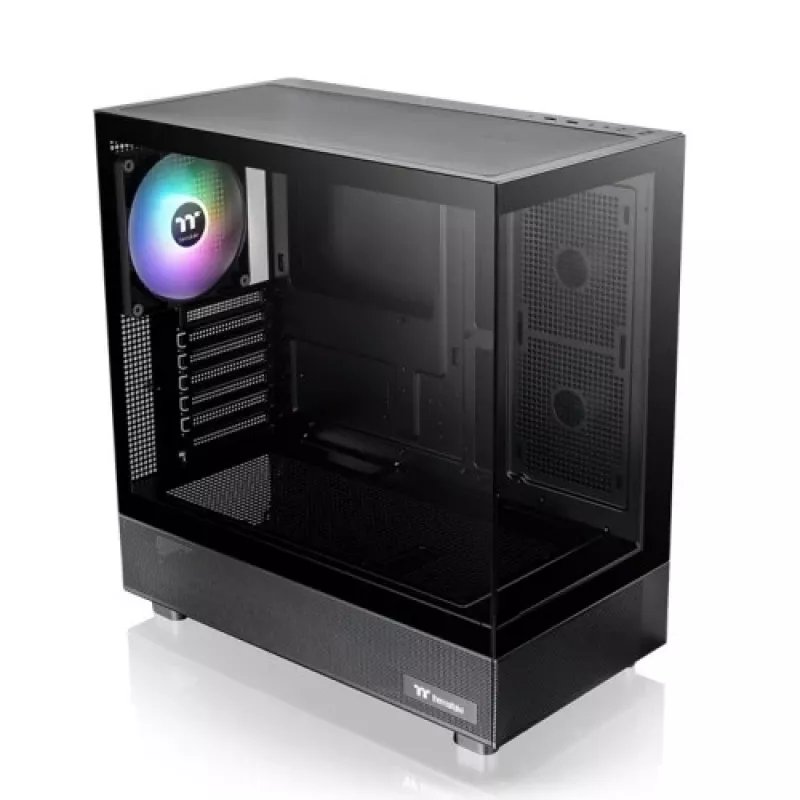

The Thermaltake View 270 TG ARGB Mid Tower Chassis is a black ATX/Midi Tower PC case with tempered glass front and left panels, designed for clear system visibility and flexible cooling options. It ships with one pre-installed CT140 ARGB Sync 140 mm fan at the rear and supports motherboard RGB synchronization via ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome when a 5V addressable RGB header is available.

Advantages

The case offers tempered glass panels for improved visibility of internal components, a full-length PSU cover to hide cables and maintain airflow, and broad expansion potential including support for up to nine 120 mm fans and a top-mounted 360 mm radiator. Front/top I/O includes two USB 3.0 Type-A ports, one USB 3.2 Gen2 Type-C port and HD audio for convenient connection.

Suitable for

Key specifications

• Form factor: Midi/ATX tower; supports Mini-ITX, Micro ATX, ATX, E-ATX

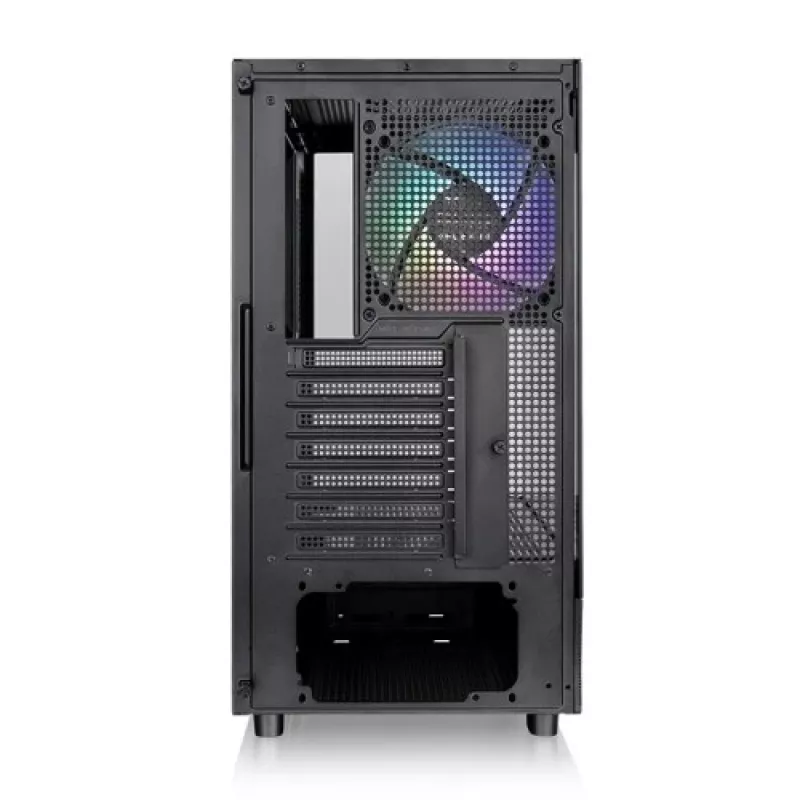

• Pre-installed fan: 1 x CT140 ARGB 140 mm (rear)
• Fan support: up to nine 120 mm fans total
• Radiator support: up to 360 mm on top
• CPU cooler max height: 180 mm
• VGA clearance: up to 420 mm
• PSU length support: up to 220 mm
• Drive bays: up to 2 x 3.5" HDD or 2 x 2.5" SSD (total)
• I/O ports: 2 x USB 3.0 Type-A, 1 x USB 3.2 Gen2 Type-C, HD Audio
• Material and color: SPCC steel, black
• Dimensions (approx.): 230 mm (W) x 454 mm (D) x 456 mm (H)
• Weight: 6.3 kg

How to use

Install the motherboard compatible with Mini-ITX, Micro ATX, ATX or E-ATX form factors and mount the power supply behind the full-length PSU cover. Place storage drives in the designated 2.5" or 3.5" bays and connect the pre-installed CT140 ARGB fan to the chassis headers. For additional cooling, install up to nine 120 mm fans or fit a radiator up to 360 mm on the top. Connect the front-panel USB and audio ports to the motherboard headers as instructed in the motherboard manual.

Recommendations

To synchronize ARGB lighting, connect the case fan(s) to a 5V addressable RGB header on a compatible motherboard and use the vendor RGB software (ASUS, GIGABYTE, MSI, ASRock). Ensure PSU length and cooler height are within supported limits before finalizing component selection.
