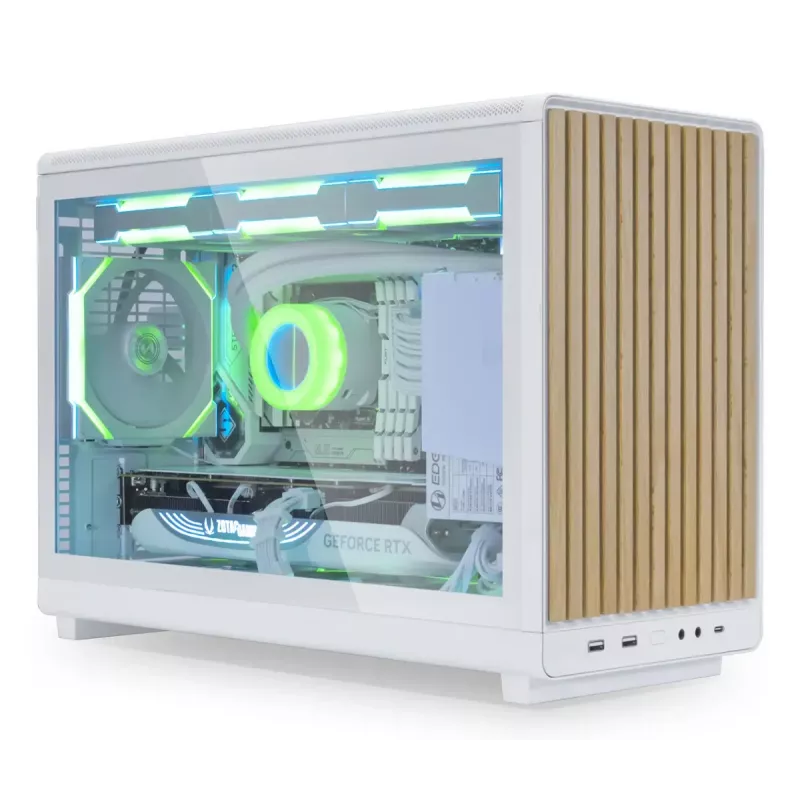

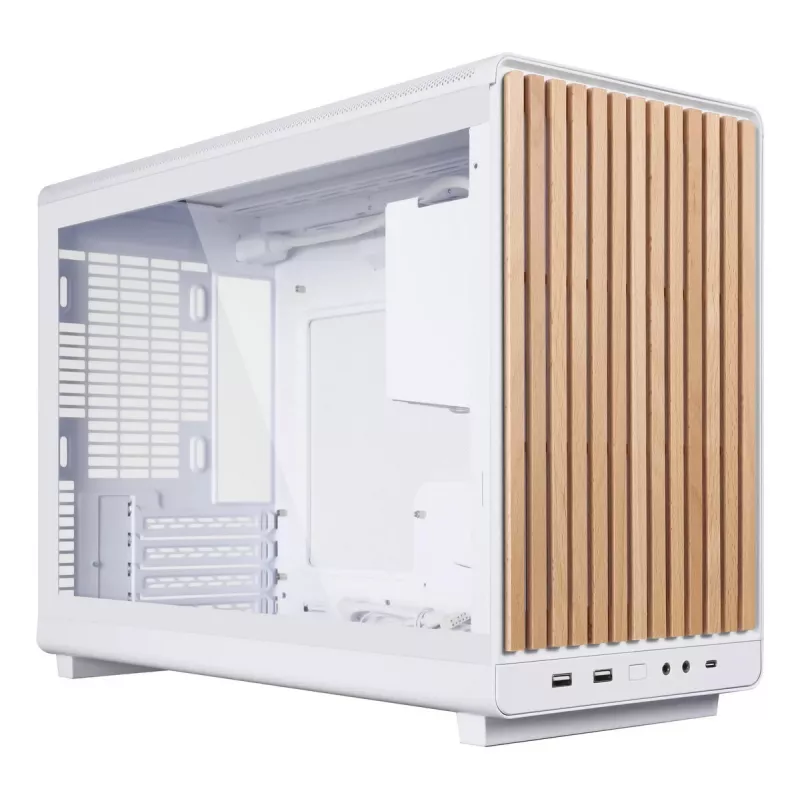

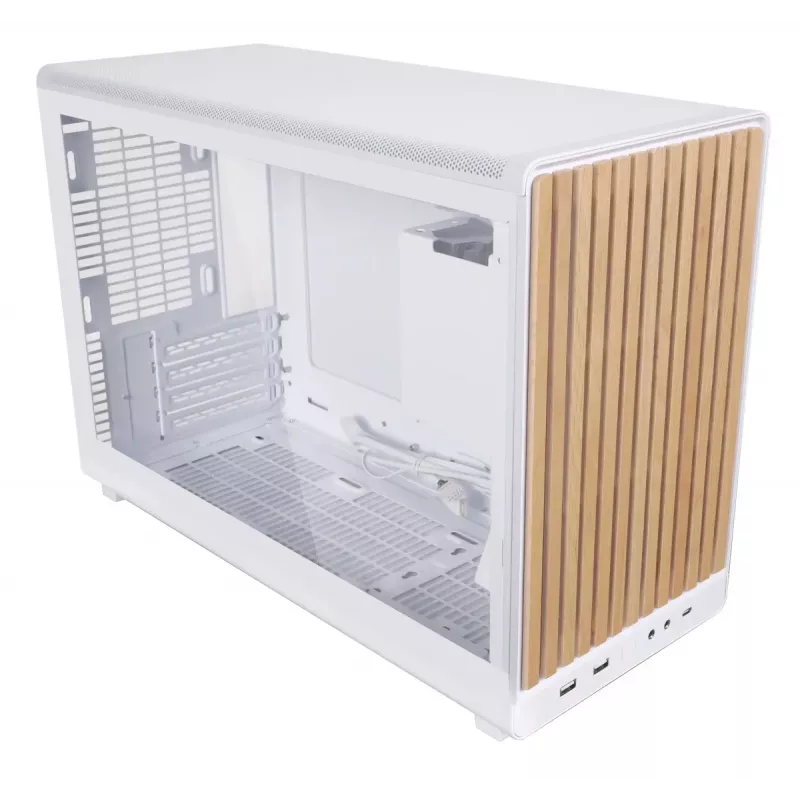

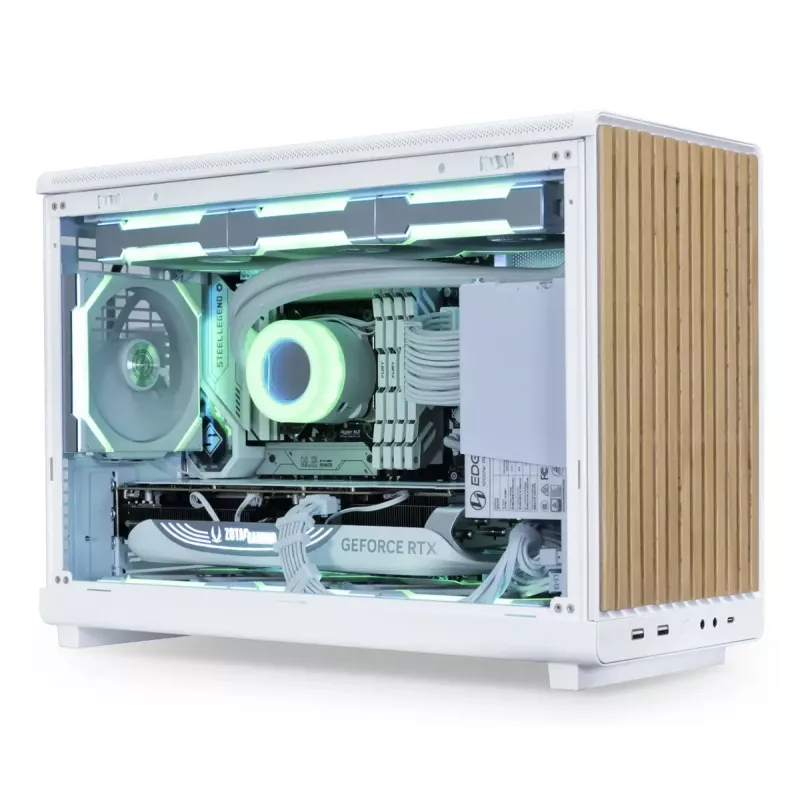

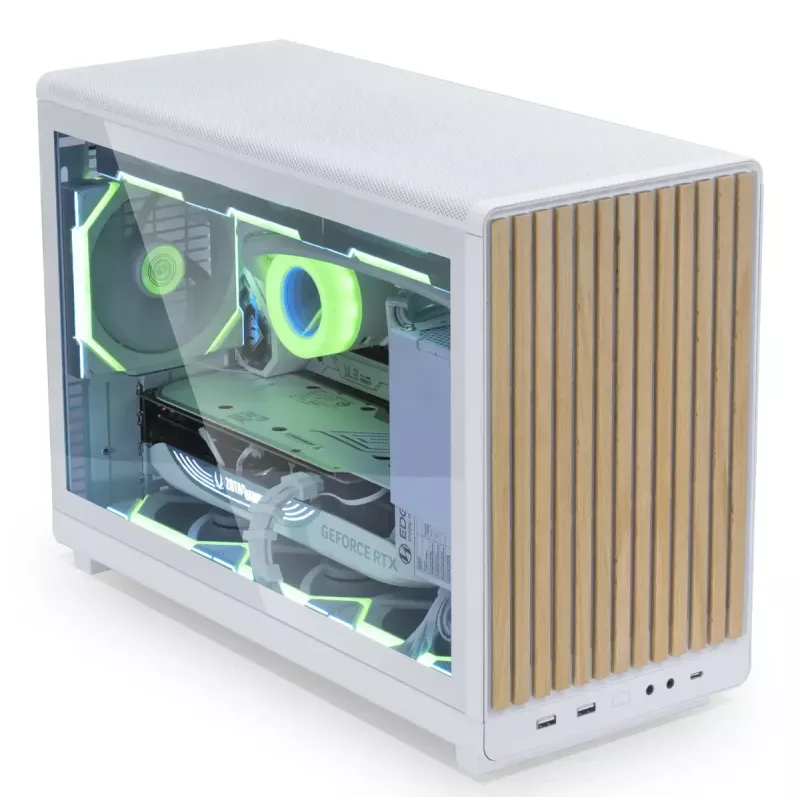

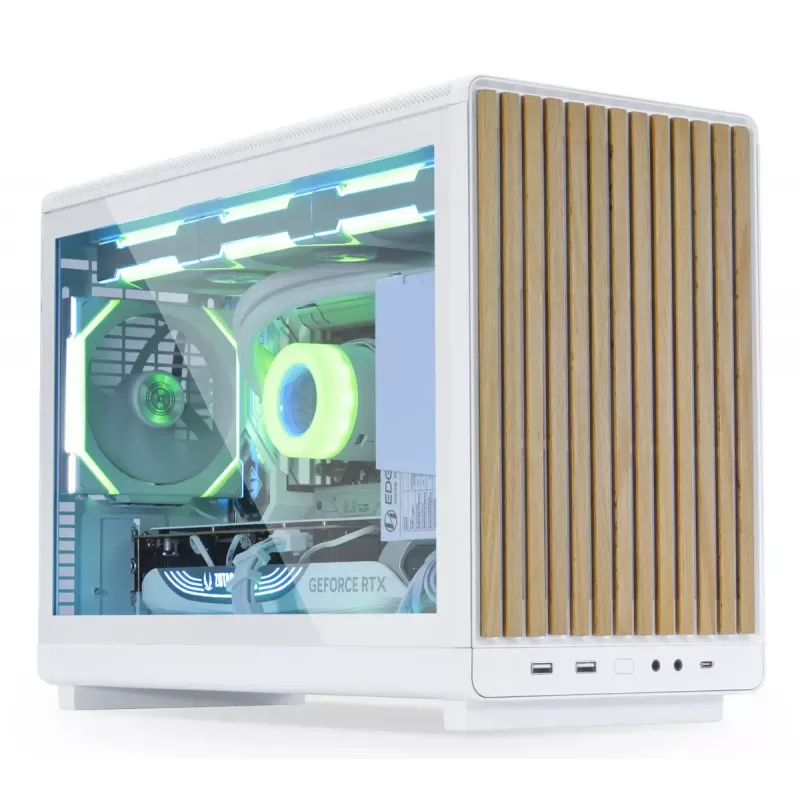

PC Case Lian Li A3-mATX Micro Tower — White with Wood, supports ATX/SFX/SFX-L PSUs, Micro-ATX/Micro-ITX, 1x3.5 inch + 2x2.5 inch

The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.

COMPACT DESIGN,MASSIVE POTENTIAL
Dive into the realm of compactness with the A3-mATX, which unlocks the potential of a small form factor PC case.

WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel, the A3-mATX combines functionality with style, making it the perfect touch to your setup.

The A3-mATX Wood Edition black front panel is made of a sophisticated black walnut trim and white with beech wood, make is a perfect balance of style and functionality.

EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.

VERSATILE COMPATIBILITY, ULTIMATE CUSTOMIZATION
Unleash your creativity with the flexible compatibility A3-mATX without compromising on high-performance, large size components.

The A3-mATX case accommodates a maximum CPU cooler height of 165mm and a 4-slot thick GPU with a maximum length of 415mm. Note that with a 25mm thick fan installed at the bottom, the GPU thickness will be limited to 61mm, allowing for only a 3-slot GPU. Additionally, when installing a radiator and fan combo, there will be no space for the GPU.

The anti-sag GPU bracket is included in the box to ensure the perfect alignment of the graphics card.

SPACE MAXIMIZED FOR COOLING
Maximizing the cooling capacity of this 26.3 liter case, 360mm AIO can be mounted to efficiently cool high-end components.

FLEXIBLE PSU INSTALLATION
Offers multiple mounting slots for a maximum of 220mm ATX/SFX/SFX-L or LIAN LI Edge PSU for ideal PSU placement to best suit your build requirements.

Includes an ATX PSU offset bracket in order to allow longer GPU installation at positions F2 and F2.5

Supports front installation of ATX PSU by mounting it on the SSD bracket using the standoff tool.

The wooden edition open-space design of the front panel allows for optimal airflow, ensuring fresh air intake for the PSU when the PSU is mounted at the front with the fan facing outward, enhancing cooling efficiency.

ADAPTABLE STORAGE SOLUTIONS
Provides 3 drive bays to meet storage needs in a comprehensive build.

SEAMLESS CONNECTIVITY, STYLISH IO
With its front IO featuring essential ports and buttons, along with a sleek and stylish front panel design, the A3-mATX ensures seamless connectivity while showcasing on the desk.

Available in 2 colors and wood version
Offering 2 color choices that combine innovative design, flexible cooling solutions, and extensive compatibility options, making it an ideal choice for enthusiasts seeking a compact yet powerful M-ATX case.

A DAN CASES COLLABORATION
Combining the design of Daniel Hansen from DAN Cases with LIAN Li’s manufacturing prowess, the collaboration brings the A3-mATX to life.

• Minimalistic sleek design 26.3L micro form factor chassis
• Side and top panels are designed with steel mesh
• Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
• Supports up to 360 radiator and 10 x 120mm fans
• Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
• In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI

Summary: Lian Li A3-mATX. Form factor: Micro Tower, Type: PC, Product colour: White, Wood. Supported power supply form factors: ATX, SFX, SFX-L. Side fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 194 mm, Depth: 443 mm, Height: 321.5 mm | Vendor Homepage: https://lian-li.com/product/a3-matx/ | Anti-dust filter: Yes | Cable management: Yes | Form factor: Micro Tower | Material: Steel/Tempered glass | Maximum CPU cooler height: 165 | Maximum graphics card length: 415 | Maximum PSU length: 220 | Number of 2.5" bays: 2 | Number of 3.5" bays: 1 | Number of expansion slots: 4 | On/off button: Yes | Product colour: White/Wood | Side window: Yes | Supported motherboard form factors: micro ATX/Micro-ITX | Tempered glass panel(s): Yes | Type: PC | Power supply included: No | Supported power supply form factors: ATX/SFX/SFX-L | Audio input: Yes | Audio output: Yes | USB 3.0: 2 | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 | Bottom fans diameters supported: 120 | Bottom radiator sizes supported: 240 | Liquid cooling capability: Yes | Number of bottom fans supported (max): 3 | Number of rear fans supported (max): 1 | Number of side fans supported (max): 3 | Number of top fans supported (max): 3 | Rear fans diameters supported: 120 | Side fans diameters supported: 120/140 | Side radiator sizes supported: 240/280/360 | Top fans diameters supported: 120 | Top radiator sizes supported: 240/360 | SSD form factor: 2.5" | Supported HDD sizes: 3.5 | Manual: Yes | Warranty period: 1 | Depth: 443 | Height: 321.5 | Width: 194 | Volume: 26.3 | Model name: A3W-WDG | Model: A3-mATX-WDG White | Units per Pallet: 0 | Units per Shipping Box: 1 | Unit Calculated Volume: 0.05423 | Unit Calculated Weight: 6.2

How to use

Install the chosen Micro-ATX or Mini-ITX motherboard and mount storage to the dedicated 3.5" and 2.5" bays. Position the PSU in the preferred mounting slot (front, sideways or bottom offset) and secure it using the provided brackets and standoffs; an ATX offset bracket is included to allow longer GPU installation in specified positions. Fit the GPU and use the supplied anti-sag bracket to maintain alignment. For cooling, install fans or a radiator according to available space—note that a bottom 25 mm fan reduces allowable GPU thickness. Remove exterior panels to access the interior for cable routing and maintenance; the bottom dust filter is removable for cleaning.

Recommendations

For best airflow and compatibility, plan component heights and GPU thickness before installation: if you intend to use a 360 mm radiator or a thick bottom fan, verify GPU clearance and consider mounting the PSU in an alternate position to maximize space for the graphics card.
