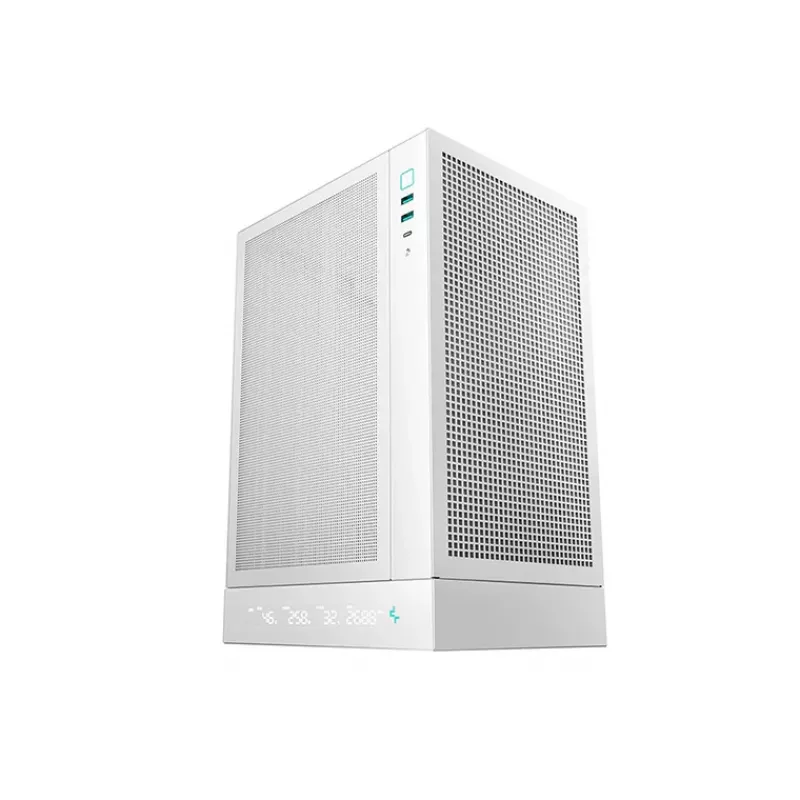

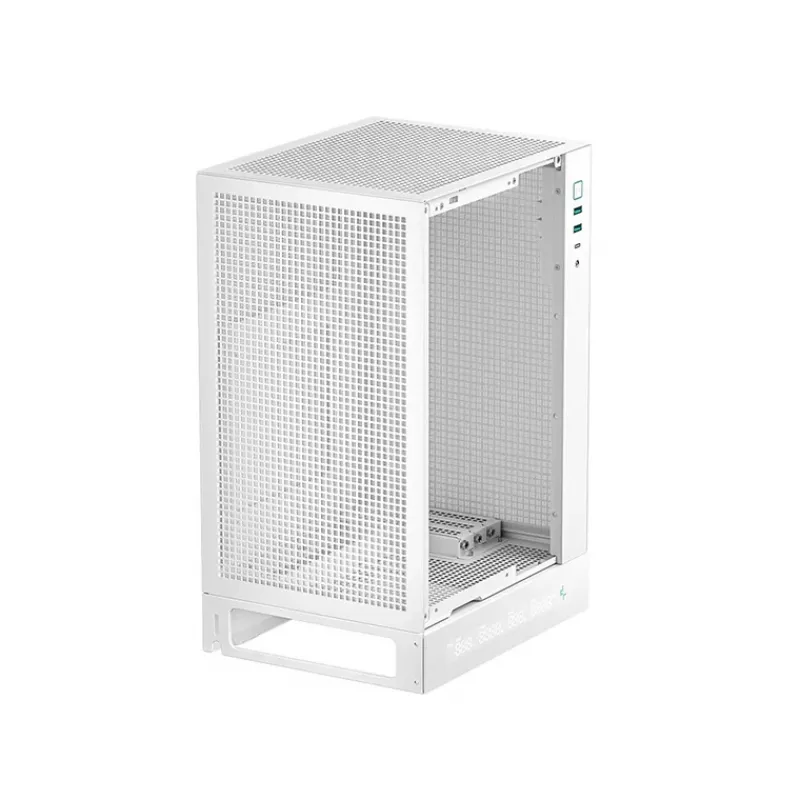

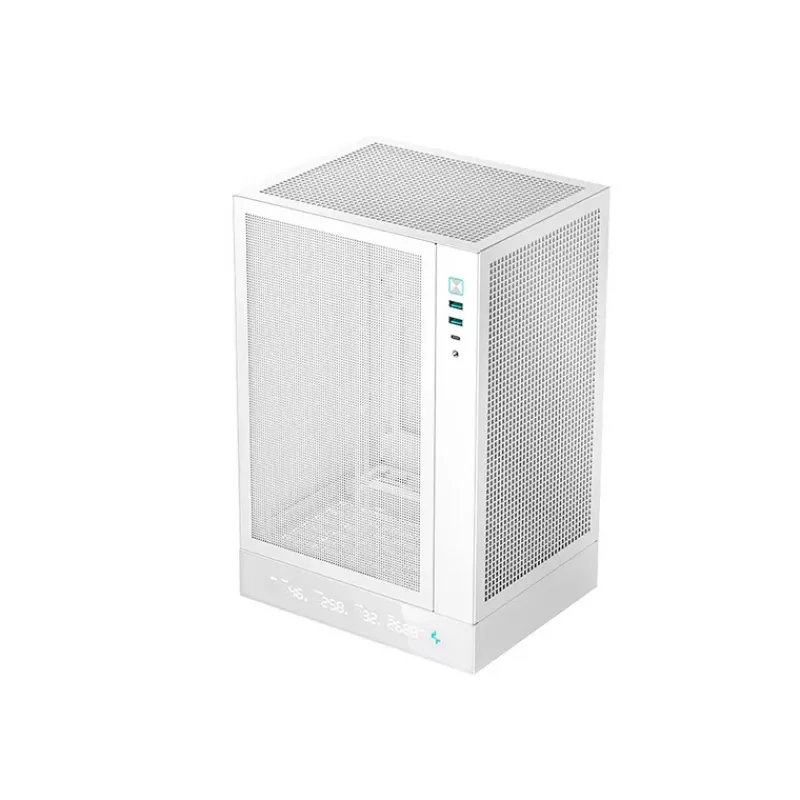

PC case DeepCool R-CH170-WHNPI0D-G-1 Tower white, Mini-ATX, LED display, 305 mm GPU, 172 mm CPU cooler

CH170 DIGITAL is a compact high-airflow mini-ITX case designed for powerful small-form-factor builds. Mesh panels on all sides provide strong ventilation, while a digital base displays multiple system data points such as CPU, GPU, and PSU status. The chassis supports large air coolers up to 172 mm in height and can also accommodate a standard 240 mm AIO radiator with a dedicated bracket and full-mesh panel. It accepts a variety of power supply form factors and supports dual-fan GPUs up to specified length and width limits without requiring a riser cable. Additional convenience features include removable fan brackets, three dust filters, front I/O with two USB 3.0 ports, one USB-C, and a hybrid audio port.

Advantages

The case combines full-perimeter mesh panels for continuous airflow with a compact tower footprint, enabling high cooling performance in an mITX enclosure. The integrated digital base simultaneously displays four vital data points and can cycle through CPU, GPU, and PSU metrics. Support for up to 172 mm tower air coolers or a 240 mm AIO offers flexibility in thermal solutions. The design allows installation of most 65 mm thick dual-fan GPUs shorter than 305 mm without a riser cable, avoiding added GPU latency. Removable brackets and filters simplify installation and maintenance, while multiple front I/O options increase connectivity.

Key specifications

• Form factor: mini-ITX case
• Panels: full mesh on all sides
• Digital display: base shows four simultaneous data points (CPU/GPU/PSU focus, timed scroll)
• Maximum CPU air cooler height: 172 mm
• Liquid cooling support: up to 240 mm AIO (with radiator bracket and mesh panel)
• Maximum GPU length: SFX/SFX-L PSU: 305 mm; ATX PSU: 230 mm
• Supported GPU thickness: most dual-fan GPUs up to 65 mm thickness
• Supported GPU width: up to 138 mm
• Power supply compatibility: ATX, SFX, SFX-L (up to 140 mm depth)
• Drive/fan bracket: top removable bracket supports SSD, HDD or 120 mm fan
• Filters: three removable dust filters
• Front I/O: 2× USB 3.0, 1× USB-C, hybrid audio port

How to use

Install a mini-ITX motherboard and choose a compatible power supply (ATX, SFX or SFX-L) within the supported depth limit. For air cooling, fit a tower cooler up to 172 mm tall; for liquid cooling, mount a 240 mm AIO using the provided radiator bracket and the full-mesh panel. Insert a dual-fan GPU (≤65 mm thick) directly into the motherboard slot if its length does not exceed the maximum allowed for your PSU type to avoid using a riser cable. Use the removable top bracket to mount an SSD, HDD or an additional 120 mm fan as needed. Connect peripherals to the front I/O ports and keep the dust filters in place to reduce maintenance; remove them periodically for cleaning.

Recommendations

Choose GPU and PSU combinations that fit the listed maximum lengths to ensure direct motherboard insertion without a riser cable. Regularly clean the three removable dust filters and consider using the top removable bracket for storage drives or extra cooling depending on your build priorities.
