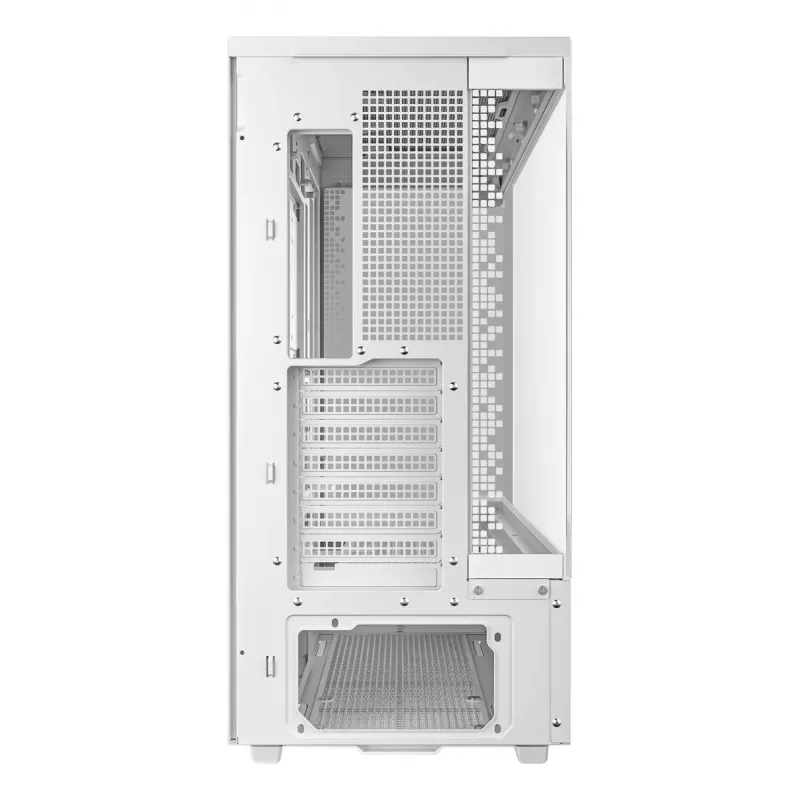

PC case DeepCool CH690 Tower White — ATX/microATX support, LCD display, 3x2.5 inch bays, 1x3.5 inch, GPU up to 450 mm, CPU cooler height 182 mm

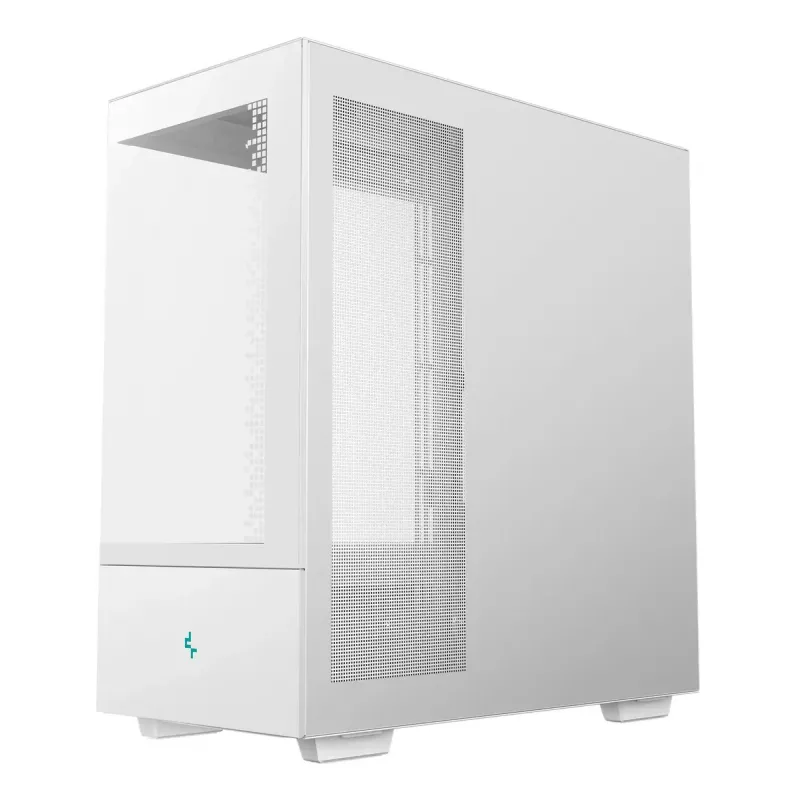

The DeepCool CH690 Tower White is a mid-tower PC case with a semi-glass side panel and an integrated digital LCD display for real-time system monitoring. It supports ATX, Micro-ATX and Mini-ITX motherboards, a 180mm power supply, and graphics cards up to 450mm. Storage options include one 3.5" drive bay and multiple 2.5" bays. The case offers modular airflow options by allowing the semi-glass panel to be replaced by a mesh panel and fan bracket, and provides a slot for light strips to add customizable illumination.

Advantages

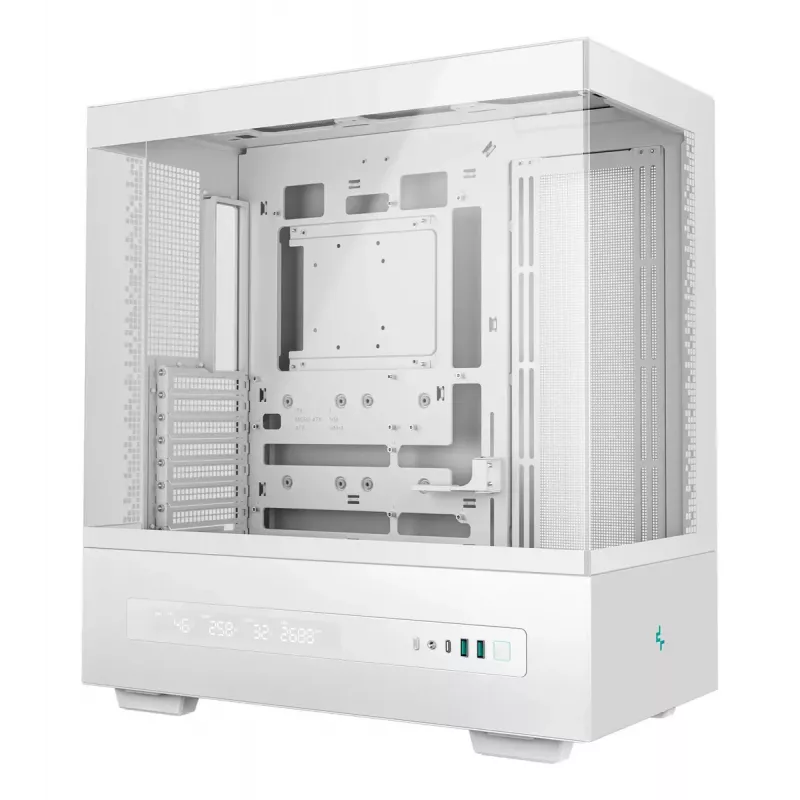

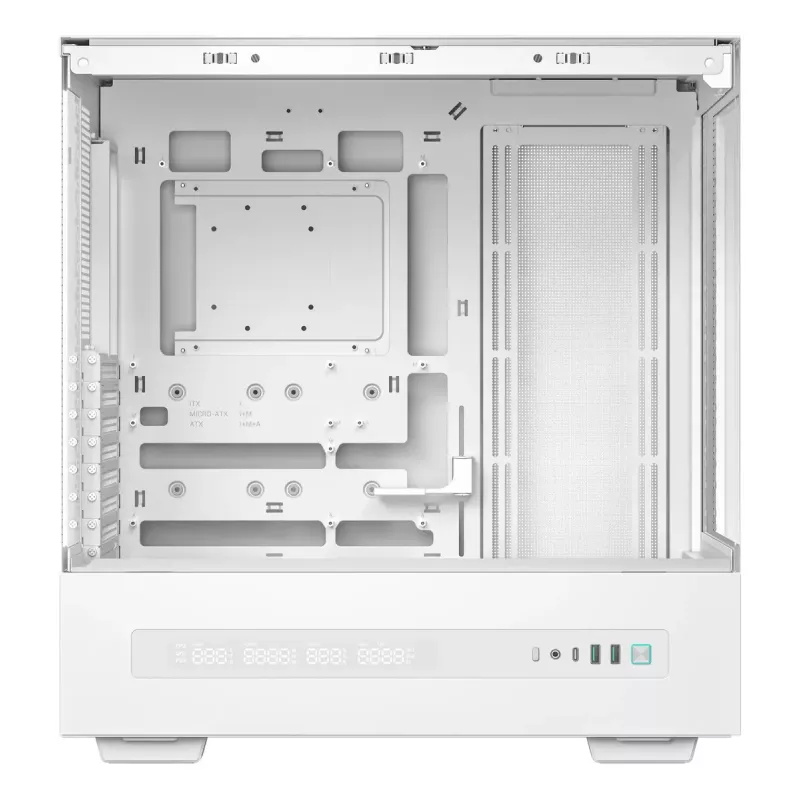

The CH690 DIGITAL WH combines a large viewing panel with modular cooling and monitoring features. Its digital display reports temperature, power consumption, usage and frequency in selectable CPU, GPU and PSU modes, while fan speed can be monitored in CPU and PSU modes. The case supports a wide set of radiator and fan layouts, offers removable expansion slots and accommodates long GPUs and a full-size PSU for flexible system builds.

Suitable for

• Gaming PC builds requiring long GPUs and flexible cooling
• Workstations that need real-time monitoring of temperatures and power
• Custom rigs that use light strips and modular side panels

Key specifications

• Supported motherboard sizes: Mini-ITX, Micro ATX, ATX
• Drive bays: 1×3.5", 2–3×2.5" (product data lists 3×2.5" total)
• Maximum GPU length: 450 mm
• Maximum CPU cooler height: 182 mm
• PSU compatibility: up to 180 mm
• Fan support: up to 3×140 mm on top, side and PSU shroud; 1×140 mm rear (supports 120/140 mm where applicable)
• Radiator support: up to 420 mm (top), 280 mm (side), 360 mm (PSU shroud)
• Expansion slots: up to 8 removable slots

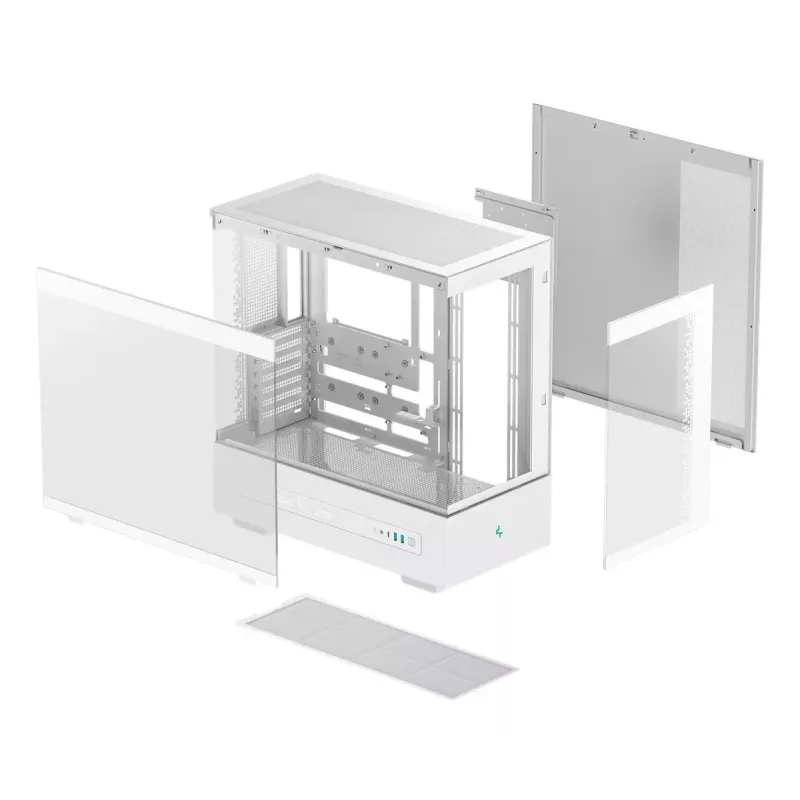

• Front/side panel: semi-glass (replaceable with mesh and fan bracket)
• Material: ABS, tempered glass, SPCC
• Color: White
• I/O: 2× USB 3.2 Gen1 Type-A
• Weight: 9.8 kg

How to use

Install the chosen motherboard into the standoffs for Mini-ITX, Micro-ATX or ATX. Fit the PSU at the base (up to 180 mm) and insert the GPU (up to 450 mm) into the expansion slots. Mount storage devices into the 3.5" and 2.5" bays as required. Connect case front-panel I/O and power cables to the motherboard, then route and secure cables to maintain unobstructed airflow. Use the digital LCD controls to switch display modes between CPU, GPU and PSU monitoring and select temperature units (°C/°F).

Recommendations

For improved horizontal airflow, replace the semi-glass side panel with the optional mesh panel and fan bracket and install additional 140 mm fans on the side or PSU shroud. Place radiators in supported locations according to your cooling layout and monitor temperatures on the built-in display to balance fan speed and noise.
