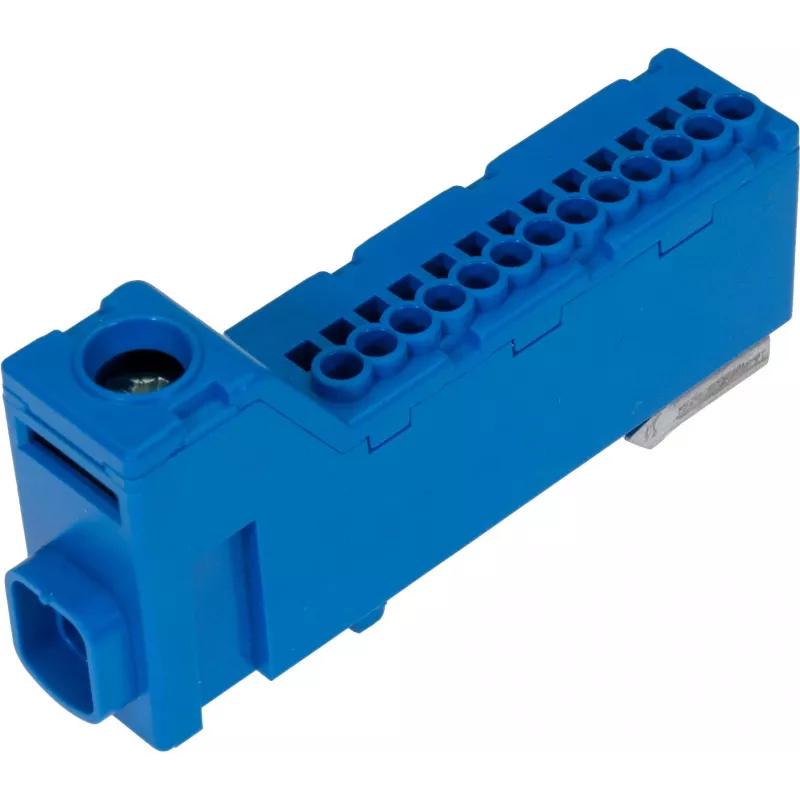

PAWBOL LZB E.4136N Screwless Terminal Strip Blue 12-Pole 450V 24A

The PAWBOL LZB E.4136N is a high-quality screwless terminal strip designed for reliable and efficient electrical connections. With 12 poles and a push-in connection system, it ensures fast and secure wiring without the need for tools. Ideal for a wide range of applications, this terminal strip offers excellent conductivity and durability.

Advantages

Tool-free push-in connection saves installation time. Compact design with 12 poles maximizes space efficiency. High rated voltage and current capacity suitable for demanding applications. Robust polyamide housing provides excellent insulation and mechanical strength.

Suitable for

• Electrical installations in residential and commercial buildings
• Control cabinets and distribution boards
• Lighting and power circuits
• Industrial automation systems

Key specifications

• Product Type: Terminal Strip
• Connection Method: Screwless (Push-in)
• Number of Poles: 12
• Rated Voltage: 450 V
• Rated Current: 24 A
• Min. Conductor Cross-Section: 0.5 mm²
• Max. Conductor Cross-Section: 2.5 mm²
• Conductor Type: Solid and Stranded
• Housing Material: Polyamide (PA)
• Contact Material: Brass
• Color: Blue
• Operating Temperature Range: -25°C to +85°C
• Mounting Type: Free-hanging
• Insulation: Fully Insulated
• Standard Compliance: PN-EN 60998-1, PN-EN 60998-2-2
• Series: LZB

Recommendations

For optimal performance, use with appropriate wire ferrules for stranded conductors. Ensure proper stripping length as per manufacturer guidelines. This terminal strip is suitable for indoor use only.
