Patch panel DELOCK 67628 1U, black nylon, 483 mm depth, 70x44.5 mm

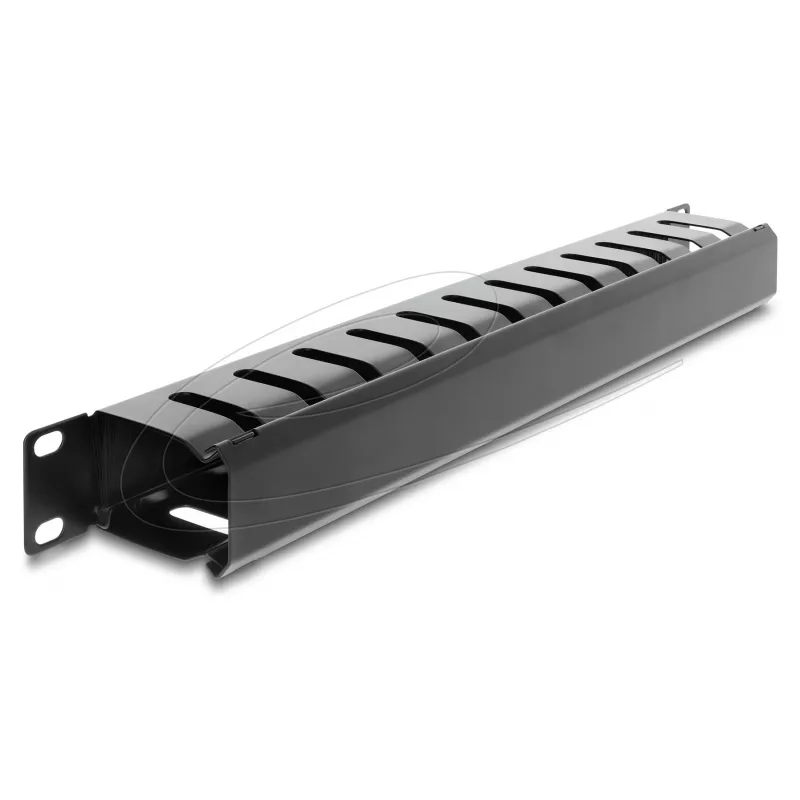

DELOCK 67628 is a 1U rack-mounted patch panel constructed from black nylon and metal components, designed for use in standard 19-inch server racks and network cabinets. With overall dimensions of 70 x 44.5 mm for the front panel and a depth of 483 mm, this compact routing panel offers a clean front appearance while allowing cables to be routed from the front to the rear. The panel includes a removable cover and integrated nylon brush to reduce dust ingress and to protect and conceal cables.

Advantages

The removable cover conceals open cables and provides mechanical protection, while the nylon brush reduces the entry of dust and dirt into the cabinet. The shallow 483 mm depth makes the panel suitable for cabinets with limited rear clearance, and the standard 1U form factor ensures compatibility with 19-inch rack systems. Materials combine the rigidity of metal with the dust-sealing properties of nylon elements for a durable, serviceable front routing solution.

Suitable for

• Cable routing and patching in server cabinets
• Network closets and telecommunications racks
• Environments where dust protection at cable entry points is required
• Installations with limited rack depth requiring a shallow panel

Key specifications

• Form factor: 1U, suitable for 19-inch rack installation
• Front panel dimensions: 70 mm (width) x 44.5 mm (height)
• Depth: 483 mm
• Material: metal panel with nylon elements and brush
• Colour: black

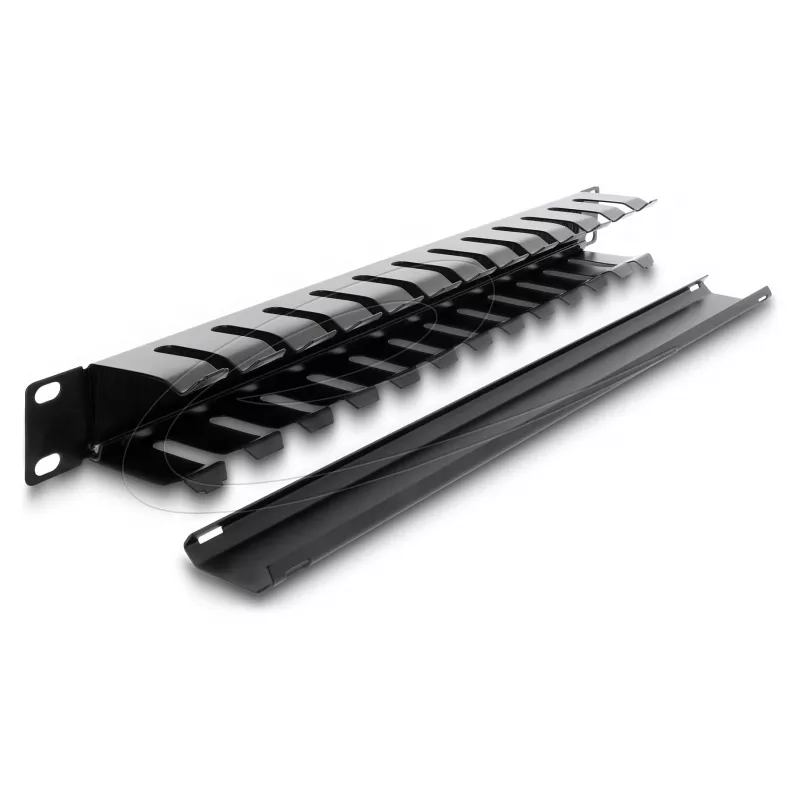

• Removable cover for cable concealment and protection

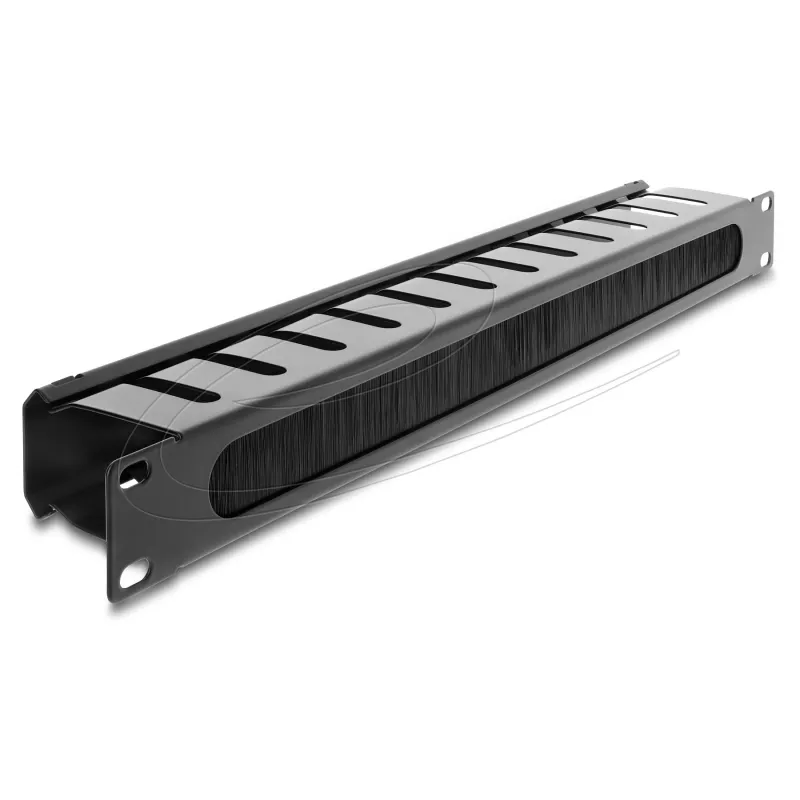

• Integrated nylon brush to reduce dust ingress

How to use

Mount the panel into a free 1U position in a 19-inch rack using appropriate rack screws. Route network cables from the front through the brush opening toward the rear of the cabinet, then secure cables using cable management accessories as required. If necessary, remove the front cover to access cables for installation or maintenance, then reattach the cover to conceal and protect the cable entries.

Recommendations

Install the panel at a height that facilitates cable access and minimizes bending radius. Use additional cable ties or Velcro straps behind the panel to organize bundles and avoid strain on connections. Regularly inspect and clean the nylon brush to maintain dust protection and replace the cover if damaged to preserve cable protection.
