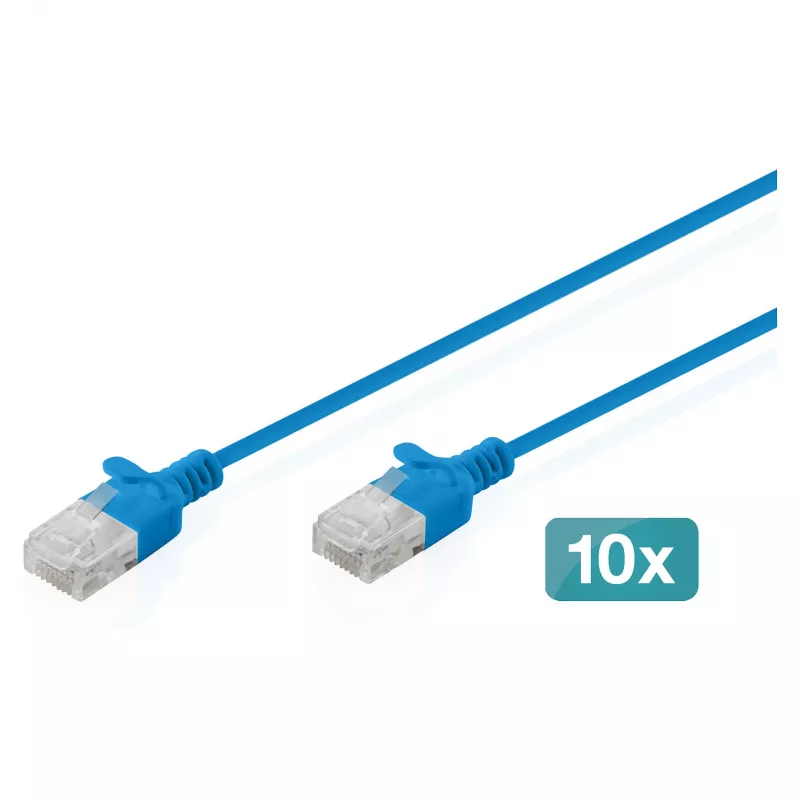

Patch cable DIGITUS CAT 6 U-UTP Slim, 1.5 m, blue, pack of 10

DIGITUS CAT 6 U-UTP Slim patch cable pack contains ten slim, unshielded twisted-pair Ethernet cables, each 1.5 m long in blue. Developed for Gigabit Ethernet and structured cabling, these CAT 6 cables deliver up to 1 Gbit/s transmission speed at frequencies up to 250 MHz while offering a reduced outer diameter for neat routing in patch panels, switches and high-density installations. The cables use stranded AWG 32/7 pure copper conductors, HD-PE insulation and molded RJ45 plugs with integrated strain relief to reduce risk of damage during installation and operation.

Advantages

The slim 2.7 mm ± 0.15 mm outer diameter and flexible jacket simplify installation in confined spaces and behind equipment, enabling cleaner cable management and denser port placement. Compliance with ISO/IEC 11801 and EN 50173 CAT 6 standards ensures predictable electrical performance and interoperability in structured networks. Low Smoke Zero Halogen (LSZH) outer material, flame retardant and low smoke characteristics provide safer use in indoor environments. Built for frequent connections, the cable construction supports up to 750 mating cycles and includes anti-kink sleeves and locking lever protection on the RJ45 plug.

Suitable for

• Office Ethernet networks and desktop connections

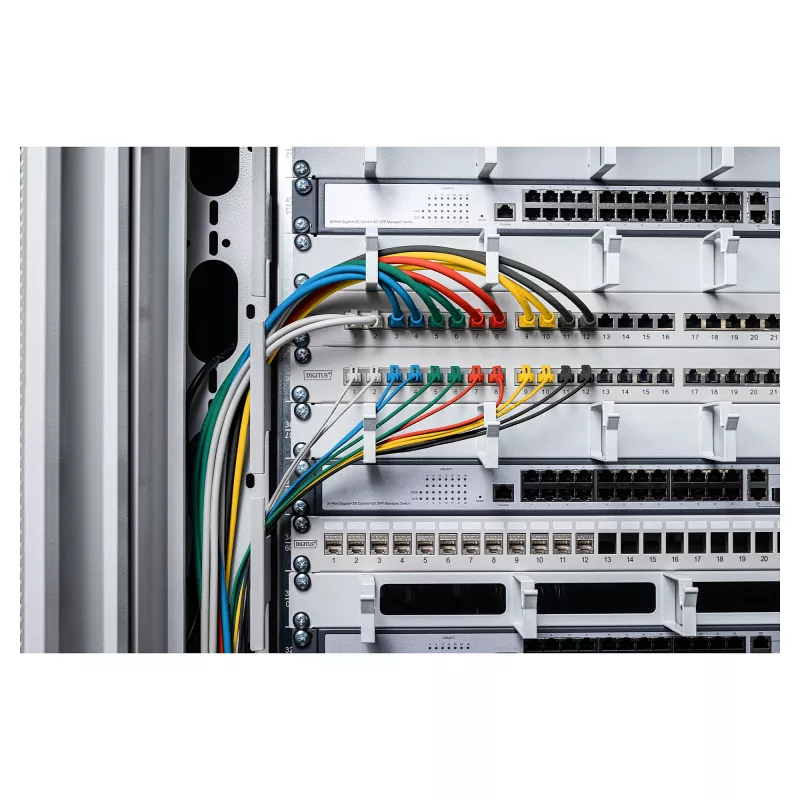

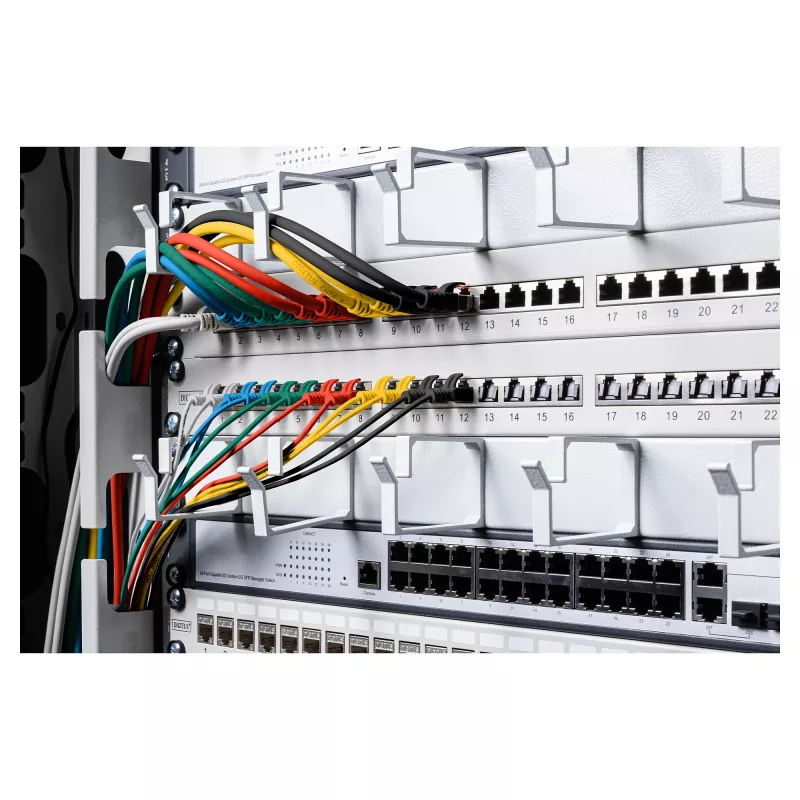

• Patch panels, switches and server cabinets with high cabling density
• Home networks and multimedia streaming at Gigabit speeds
• Power over Ethernet (PoE / PoE+) applications

Key specifications

• Cable category: CAT 6 U-UTP
• Length: 1.5 m
• Conductor type: stranded bare copper (AWG 32/7)
• Outer diameter: 2.7 mm ± 0.15 mm
• Insulation: HD-PE (high-density polyethylene)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Transmission performance: up to 1 Gbit/s, frequency up to 250 MHz

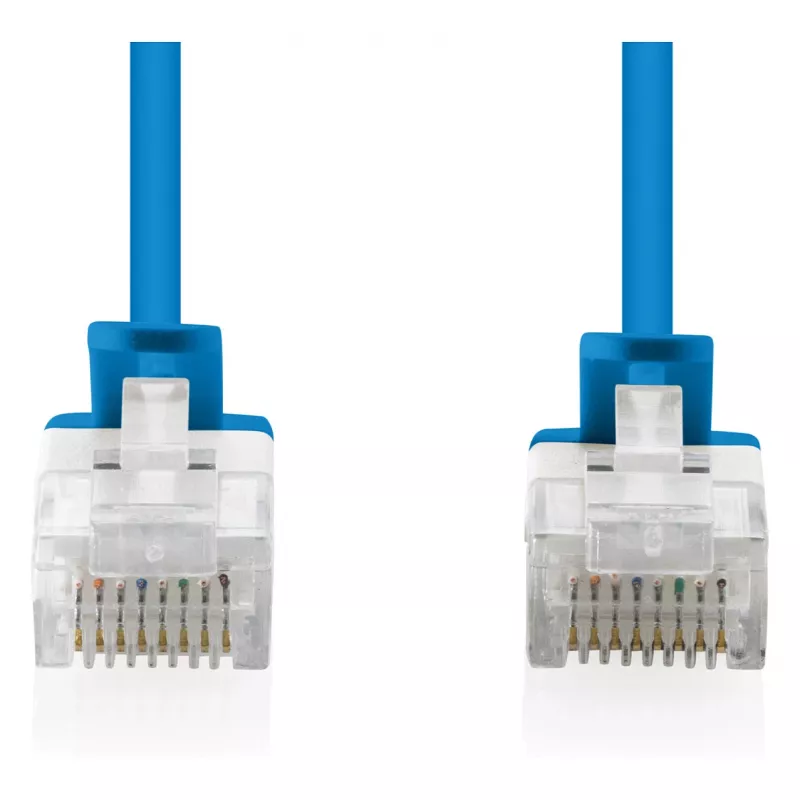

• Connector: molded RJ45 plug with strain relief and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke: IEC 60332-1 and IEC 61034 compliant
• Typical supported standards: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: approx. 750 mating cycles
• Packaging: pack of 10 cables

How to use

Connect an RJ45 plug at each end of the required link to network ports on switches, patch panels, routers or devices; the cables are pre-terminated and ready for immediate use. Route the slim cables through cable management channels, behind racks or along desk grommets to make efficient use of space. Ensure connectors are fully inserted until the locking lever engages and avoid tight kinks to preserve signal integrity. The cables support PoE and PoE+ so they can supply power to compatible devices when used with a suitable power source and network equipment.

Recommendations

For best long-term performance, avoid sharp bends and do not exceed the recommended bending radius. Use the slim cables in high-density patching areas to reduce congestion, and choose LSZH cabling where low smoke and halogen-free properties are required by building regulations or site safety policies.
