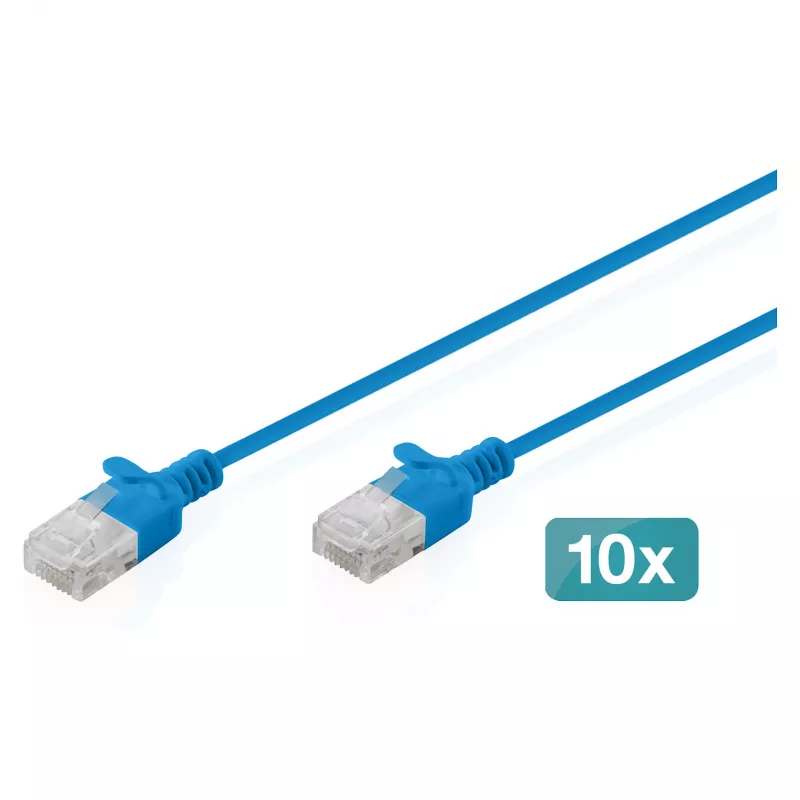

Patch cable CAT6 U-UTP slim 3 m, blue, DIGITUS, pack of 10

DIGITUS CAT6 U-UTP slim patch cables, 3 m, blue, pack of 10 provide space-saving unshielded Ethernet connections for Gigabit networks. Each slim cable has a reduced outer diameter and flexible jacket that make routing in patch panels, switches and high-density racks easier while maintaining CAT6 performance up to 250 MHz and transmission speeds up to 1 Gbit/s. Constructed with stranded bare copper conductors and RJ45 plugs with molded anti-kink sleeves and strain relief, these patch leads are designed for structured cabling in offices, data rooms and home networks.

Advantages

The slim 2.7 mm diameter and flexible LSZH jacket enable neat cable management in confined spaces without compromising signal integrity. Built to CAT6 standards, the cables support Gigabit Ethernet and PoE/PoE+ thanks to pure copper conductors. Molded RJ45 connectors with locking lever protection and strain relief reduce risk of connector damage and ensure long service life across frequent mating cycles. Compliance with international standards provides predictable, interoperable performance in standard network environments.

Suitable for

• Patching between switches, patch panels and network outlets in office environments
• Home networks and multimedia connections where space is limited
• High-density cabling racks and data room installations
• PoE and PoE+ deployments for IP phones, access points and cameras

Key specifications

• Cabling category: CAT6, U-UTP (unshielded twisted pair)
• Length: 3 m
• Conductor type: stranded bare copper (AWG 32/7)
• Outer jacket material: LSZH (Low Smoke Zero Halogen)
• Total outer diameter: 2.7 mm ± 0.15 mm
• Frequency rating: up to 250 MHz
• Maximum data transmission: up to 1 Gbit/s (1000BASE-T)
• Insulation: HD-PE (high-density polyethylene)
• Bending radius: 15 × outer diameter

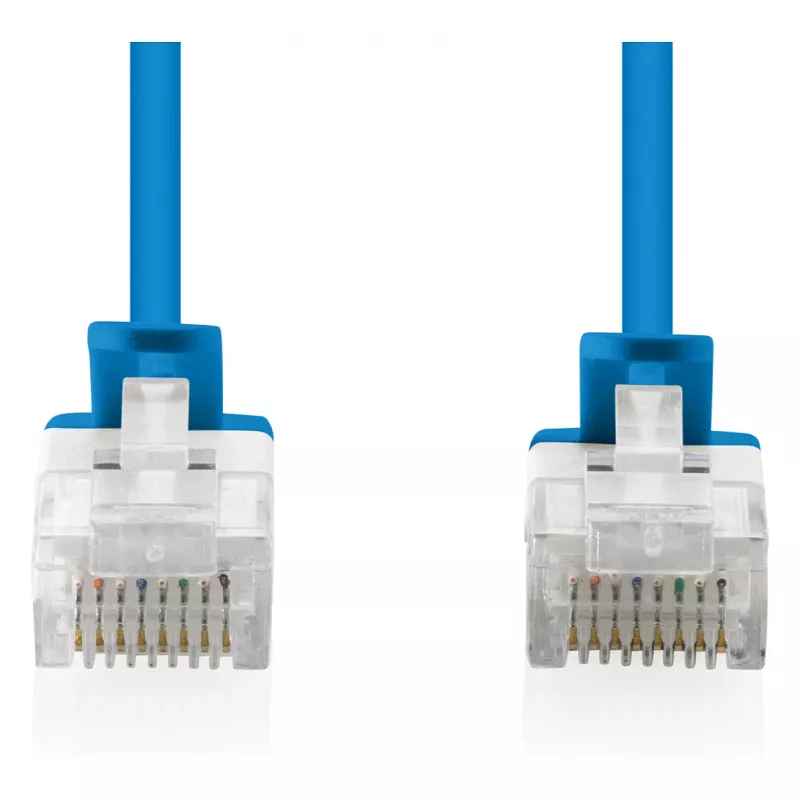

• Plug type: RJ45 with molded anti-kink sleeve and locking lever protection
• Cabling standard: EIA/TIA 568B, PIN assignment 1:1
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke emission standards: IEC 60332-1, IEC 61034
• Typical supported Ethernet: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: approximately 750 mating cycles
• Pack quantity: 10 pieces

How to use

Connect one end of the patch cable to the RJ45 port of a switch, patch panel or network outlet and the other end to the device to be networked. Ensure the locking tab is engaged to secure the connection. Route cables following the recommended bending radius and avoid sharp bends or tight knots. Use cable management accessories such as horizontal managers, cable ties or trays to keep runs neat and reduce mechanical stress on the connectors. For PoE devices, verify switch or injector compatibility and power budget before deployment.

Recommendations

For reliable long-term performance, avoid routing the slim cables near strong electromagnetic sources or power cabling and maintain the specified bending radius. Use the cables in environments within the stated temperature range and replace any cable with visible damage to the jacket or connectors. When planning high-density installations, label both ends and group runs by purpose to simplify maintenance.
