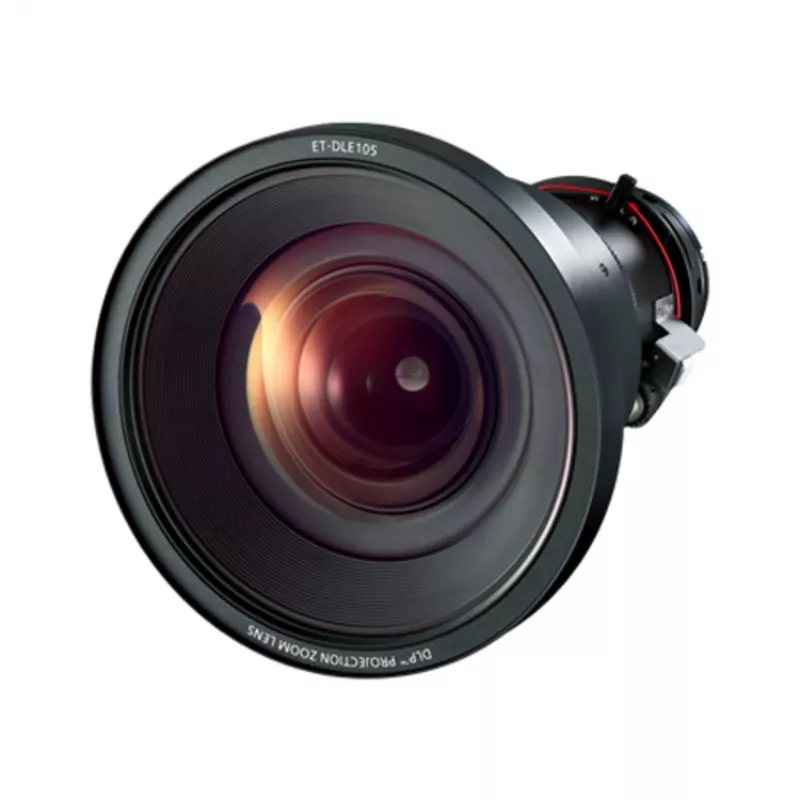

Panasonic ET-DLE105 Short-Throw Zoom Lens for PT-DW750, DW830, DX100, DX820, DZ780, RW620, RW730, RW930

The Panasonic ET-DLE105 is a short-throw zoom lens engineered for large-venue projection at close range. Its 1.5:1 zoom ratio and motorized focus give integrators the flexibility to adapt to varied installation geometries without swapping lenses, while the manual zoom allows precise framing once the projector is mounted.

Highlights

• Short-throw design with 0.97–1.5:1 throw ratio (model-dependent)
• Motorized focus, manual zoom
• Focal length 21.4–31.9 mm, aperture F2.0–2.6
• Compatible with Panasonic PT-DW750, DW830, DX100, DX820, DZ780, RW620, RW730, RW930

In daily use

The lens mounts via Panasonic’s proprietary bayonet, ensuring a secure fit. Its optical design delivers sharp, high-contrast images even at short throw distances, making it suitable for auditoriums, museums, and digital signage where space is limited.

Full specifications

• Lens type: Short-throw zoom lens
• Focal length range: 21.4–31.9 mm
• Aperture range: F2.0–2.6
• Zoom ratio: 1.5:1
• Focus adjustment: Motorized (via projector)
• Zoom adjustment: Manual
• Throw ratio: 0.97–1.5:1 (varies by projector model and aspect ratio)
• Compatibility: Panasonic PT-DW750, PT-DW830, PT-DX100, PT-DX820, PT-DZ780, PT-RW620, PT-RW730, PT-RW930

Final note

The ET-DLE105 is a practical choice for AV professionals needing a reliable short-throw zoom solution across multiple Panasonic projector lines.
