Outlet Box Type F Kindermann 7492000031 Grey White

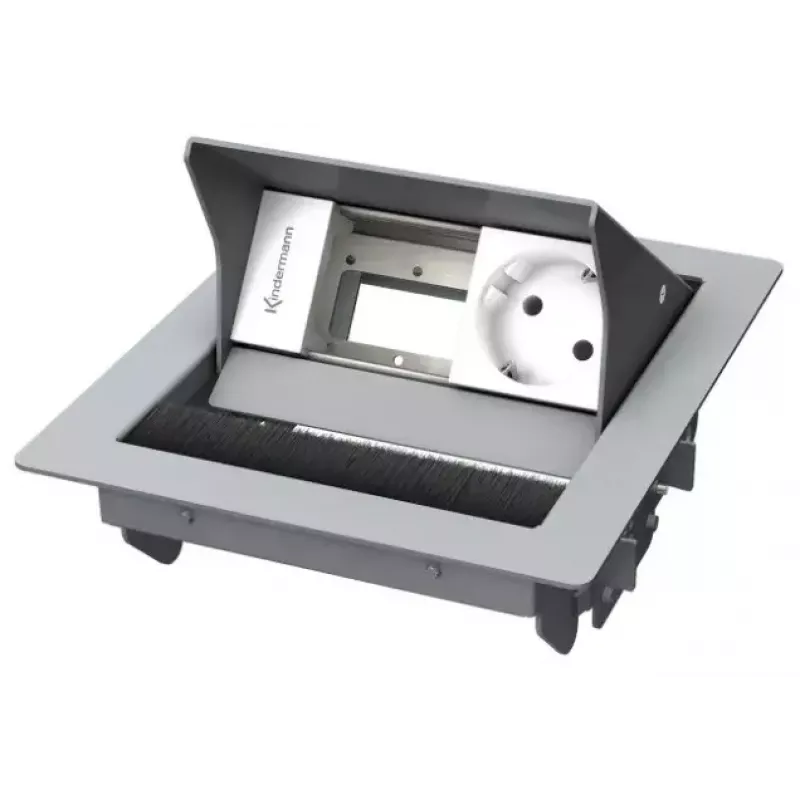

Desktop casing for 2 insets in powder-coated RAL 9006 finish, pre-mounted with one Schuko mains socket and one empty module. The unit is compatible with Konnect flex 45 adapter plates for individual configuration and is intended for installation in desktops up to 40 mm thick. Installation depth is 65 mm, and the mains connection uses a 3-pin GST 18 plug. Dimensions and neutral grey-white colour help the outlet box blend into professional and office environments.

Advantages

Quick click-mechanism mounting allows fast installation from above. Level-mounted interfaces provide a homogeneous appearance and permit seamless desktop integration. The design is compatible with media control modules, USB chargers and other Konnect flex 45 components. Pre-mounted Schuko socket plus an empty module simplifies initial setup while leaving space for customisation.

Suitable for

Key specifications

How to use

Cut an opening in the desktop appropriate for the unit dimensions and ensure the desktop thickness does not exceed 40 mm. Insert the outlet box from above and engage the click-mechanism to secure it in place. Connect the mains cable using the supplied 3-pin GST 18 plug. Fit additional Konnect flex 45 adapter plates or modules into the empty module slot as required and route internal wiring to connected devices.

Recommendations

For safe operation, install the outlet box according to local electrical regulations and, if necessary, have the mains connection performed by a qualified electrician. Verify that installed modules (USB chargers, media controls) are compatible with Konnect flex 45 plates and do not exceed the electrical ratings of the Schuko socket and GST 18 connection.
