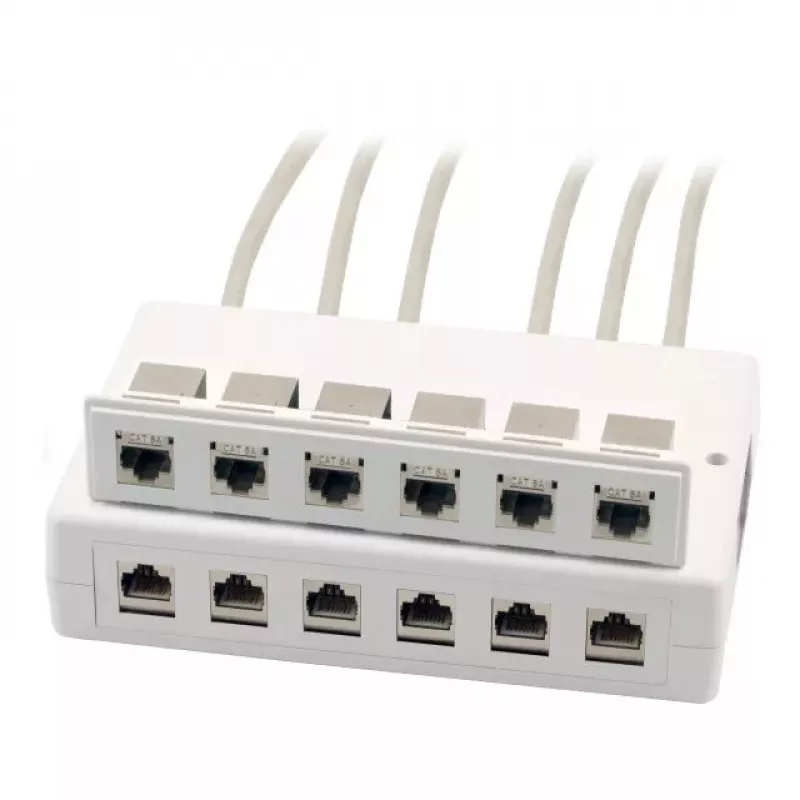

Outlet Box RJ-45 EFB Elektronik ET-25174.1

The compact plastic case is designed for cable junctions and keystone module installation in desks, raised ceilings or underfloor systems. It can also be mounted on walls and is supplied empty, allowing you to install keystone modules and cable entries as needed.

Advantages

The plastic housing is modular and adapts to different installation situations. Multiple accessory inserts enable flexible configuration for keystone modules and cable entries. The case is lightweight, suited for both surface and recessed installations, and includes fixing holes for secure wall mounting.

Key specifications

• Material: plastic
• Configuration options: up to 6 keystone modules using rear cable entries
• Maximum keystone capacity: up to 12 keystone modules when using cable entries on both sides
• Included parts: 1 upper housing shell, 1 lower housing shell, 2 adapter inserts with openings for 6 keystones, 1 adapter insert for 6 cable entries, 2 side covers
• Delivery: without keystone modules
• Mounting: fixing holes for wall mounting; opening for cable entry in lower part

How to use

Open the case and select the adapter inserts that match your desired configuration of keystone modules and cable entries. Fit the upper and lower housing shells together, position the adapter inserts, and secure the side covers. Feed cables through the designated openings and mount the assembled case to the wall using the provided fixing holes or install it into the underfloor or ceiling structure as required.

Recommendations

Install keystone modules and perform cable terminations before final mounting. Verify compatibility of keystone connectors with the adapter insert openings and follow local electrical and cabling regulations during installation.
