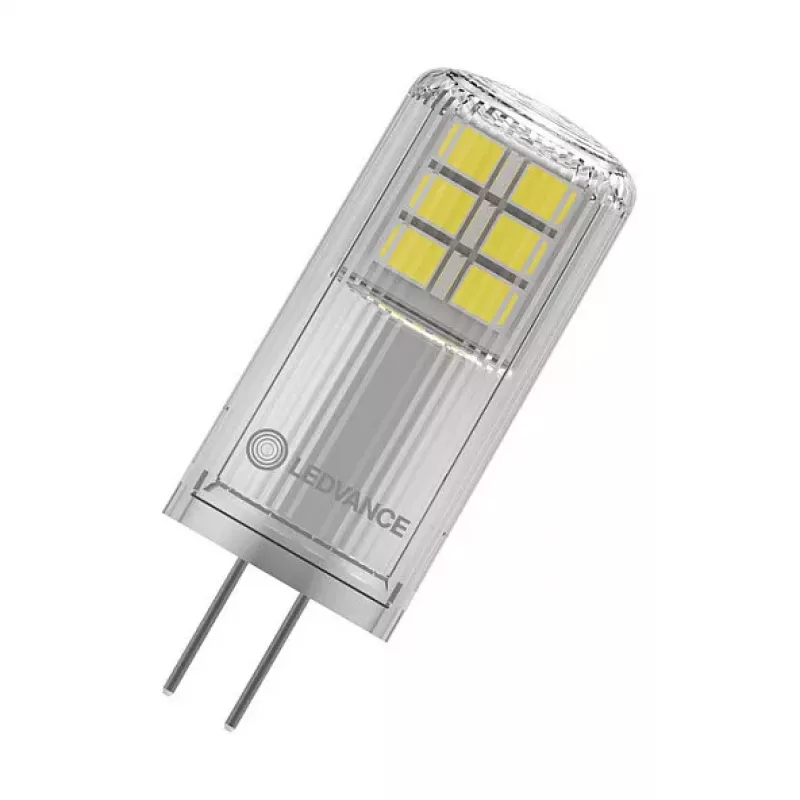

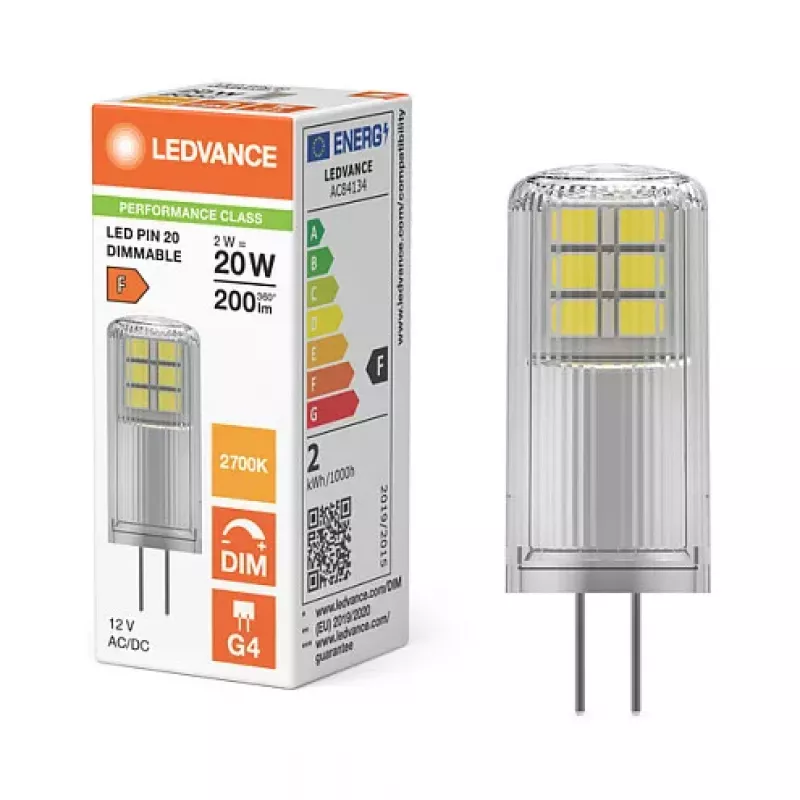

OSRAM LED PIN 12V P 2.2W 827 Clear G4 12V Low-Voltage LED Lamp with Plug Base

The OSRAM LED PIN 12V P 2.2W 827 Clear G4 is a high-quality, energy-efficient LED pin lamp designed for 12V low-voltage applications. With a G4 base and clear finish, it provides warm white light at 2700K, making it ideal for accent lighting, display cases, and decorative fixtures. This lamp offers a luminous flux of 200 lumens while consuming only 2.2 watts, equivalent to a 20W incandescent bulb, resulting in significant energy savings.

Advantages

Energy-efficient LED technology reduces power consumption by up to 90% compared to traditional halogen lamps. Long lifetime of 15,000 hours minimizes replacement frequency. Instant start-up with no warm-up time ensures immediate full brightness. Environmentally friendly with zero mercury content.

Suitable for

• Accent lighting in retail displays and showcases
• Decorative lighting in chandeliers and pendant fixtures
• Under-cabinet lighting in kitchens and workspaces
• Landscape and garden lighting (low-voltage systems)
• Marine and RV lighting where 12V is required

Key specifications

• Lamp type: LED Pin Lamp
• Base: G4
• Power consumption: 2.2W
• Equivalent incandescent power: 20W
• Voltage: 12V AC/DC
• Luminous flux: 200 lm
• Color temperature: 2700K (Warm White)
• Color rendering index (CRI): Ra > 80
• Beam angle: 300°
• Dimmable: No
• Lifetime: 15,000 h (L70/B50)
• Switching cycles: 100,000
• Energy efficiency class: G (new EU)
• Finish: Clear
• Mercury content: 0.0 mg
• Operating temperature: -20 to +40 °C
• Start-up time: < 0.5 s
• Warm-up time (60%): < 0.5 s

Recommendations

For optimal performance, use with a suitable 12V electronic transformer. Ensure proper ventilation in enclosed fixtures. Not suitable for use with emergency lighting systems or dimmers.
