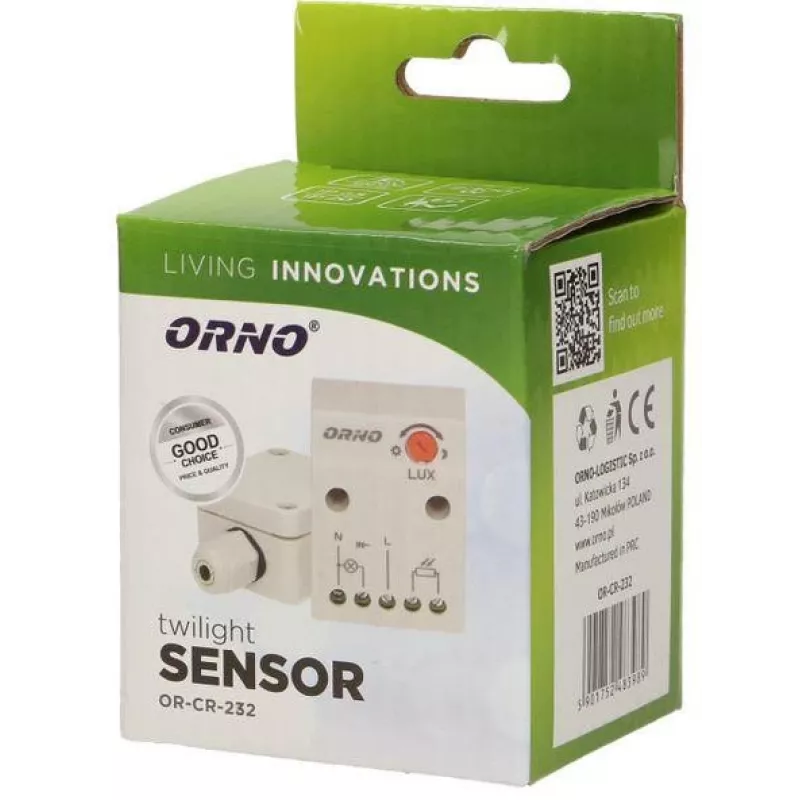

ORNO OR-CR-232 Dusk Sensor with Hermetic External Probe in Junction Box

The ORNO OR-CR-232 is a professional dusk sensor (photocell switch) designed for automatic lighting control. It features a hermetically sealed external probe housed in a junction box, ensuring reliable operation in outdoor environments. The sensor automatically switches lighting on at dusk and off at dawn, providing energy savings and convenience.

Advantages

Automatic light control based on ambient light level; hermetically sealed external probe for outdoor use; adjustable light threshold from <3 to 2000 LUX; high load capacity up to 2300W; low standby power consumption <0.5W; robust ABS plastic enclosure.

Suitable for

• Outdoor lighting control (gardens, pathways, parking lots)
• Street lighting automation
• Industrial and commercial lighting systems
• Security lighting

Key specifications

• Supply Voltage: 230V AC, 50Hz
• Max. Load: 2300W (10A)
• Light Intensity Adjustment Range: <3-2000 LUX
• External Probe Protection Rating: IP65
• Control Module Protection Rating: IP20
• Operating Temperature: -20°C to +40°C
• Probe Cable Length: 1 meter
• Mounting Type: Surface Mounted
• Power Consumption (Standby): <0.5W
• Switching Delay: 10-15 seconds
• Sensor Type: External Photocell Probe
• Enclosure Material: Plastic (ABS)
• Connectivity: Wired

Recommendations

For optimal performance, install the external probe in a location with unobstructed natural light. Ensure the control module is mounted indoors or in a weather-protected area. The sensor is suitable for use with incandescent, halogen, and LED lighting loads within the specified power limits.
