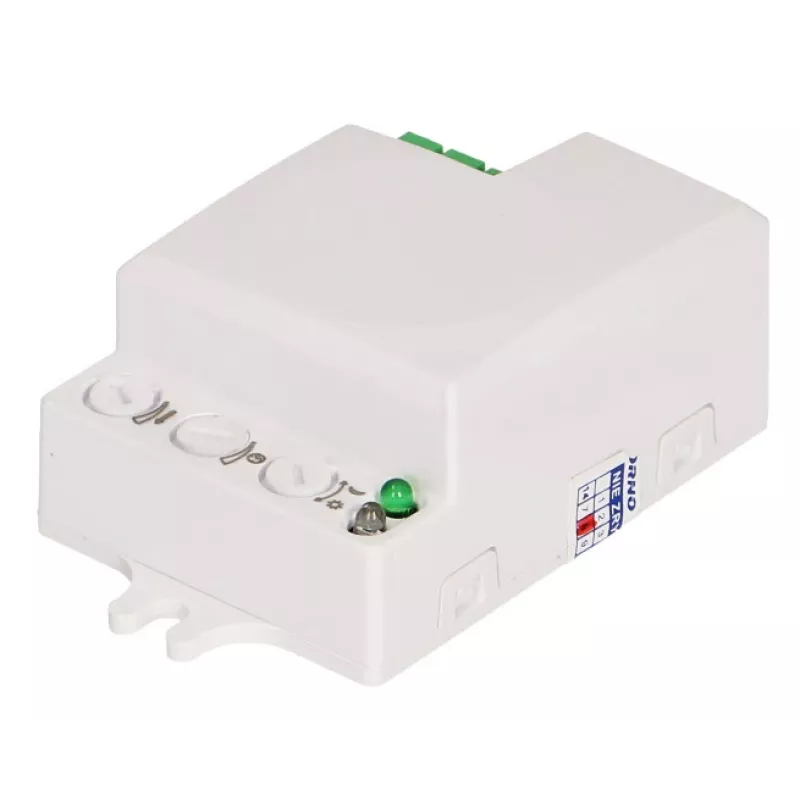

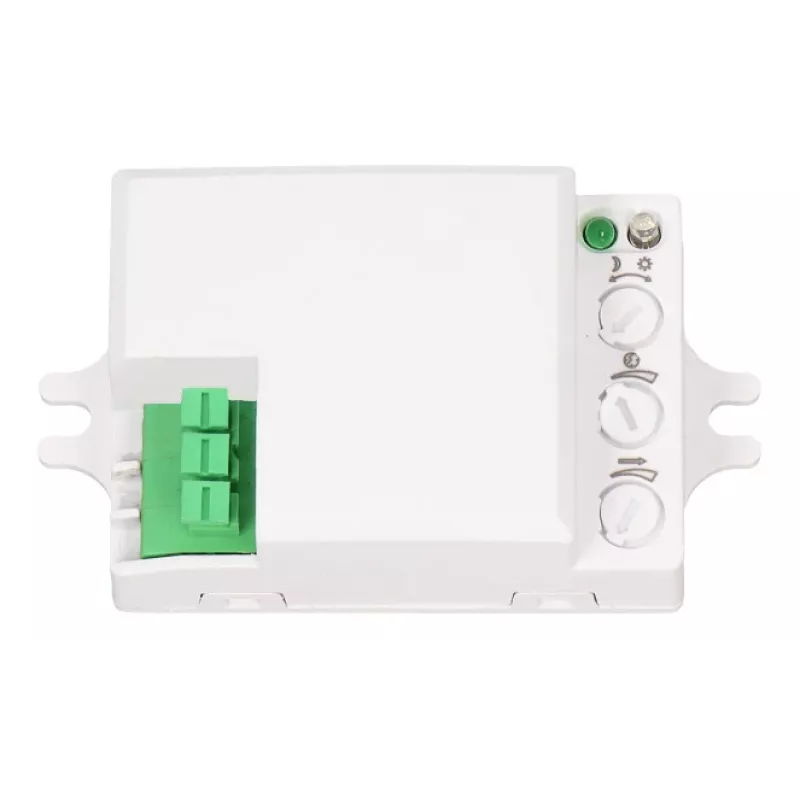

ORNO OR-CR-214 Microwave Motion Sensor, 5.8 GHz, 360°, 1-8 m, White

The ORNO OR-CR-214 is a high-quality microwave motion sensor designed for automatic lighting control in indoor environments. Utilizing Doppler effect technology at 5.8 GHz, it detects movement through walls and non-metallic obstacles, offering a 360° detection angle and an adjustable range of 1 to 8 meters. Ideal for corridors, staircases, basements, and garages, this ceiling-mounted sensor ensures energy-efficient operation with a standby power consumption of less than 0.9W.

Advantages

• Reliable microwave detection unaffected by temperature changes
• Adjustable time delay (10 sec – 12 min) and light sensitivity (3-2000 lux)
• Suitable for resistive loads up to 1200W and LED/inductive loads up to 300W
• Easy ceiling surface mount with compact design

Suitable for

• Indoor lighting control in hallways, staircases, and utility rooms
• Automatic on/off for energy saving in commercial and residential spaces
• Areas where infrared sensors may be limited by temperature or obstacles

Key specifications

• Sensor Type: Microwave (Radar)
• Operating Frequency: 5.8 GHz
• Power Supply: 230V AC, 50Hz
• Max Resistive Load: 1200W
• Max Inductive/LED Load: 300W
• Detection Angle: 360°
• Detection Range: 1-8 m (adjustable)
• Time Delay: 10 sec – 12 min
• Light Sensitivity: 3-2000 lux
• Installation Height: 1.5-3.5 m
• Operating Temperature: -20°C to +40°C
• IP Rating: IP20
• Standby Power: <0.9W
• Detection Speed: 0.6-1.5 m/s
• Mounting: Ceiling Surface Mount
• Housing Material: Plastic
• Colour: White

Recommendations

For optimal performance, mount the sensor at a height of 2-3 meters and avoid placing near large metal objects or sources of vibration. Adjust the detection range and time delay according to the specific area requirements.
