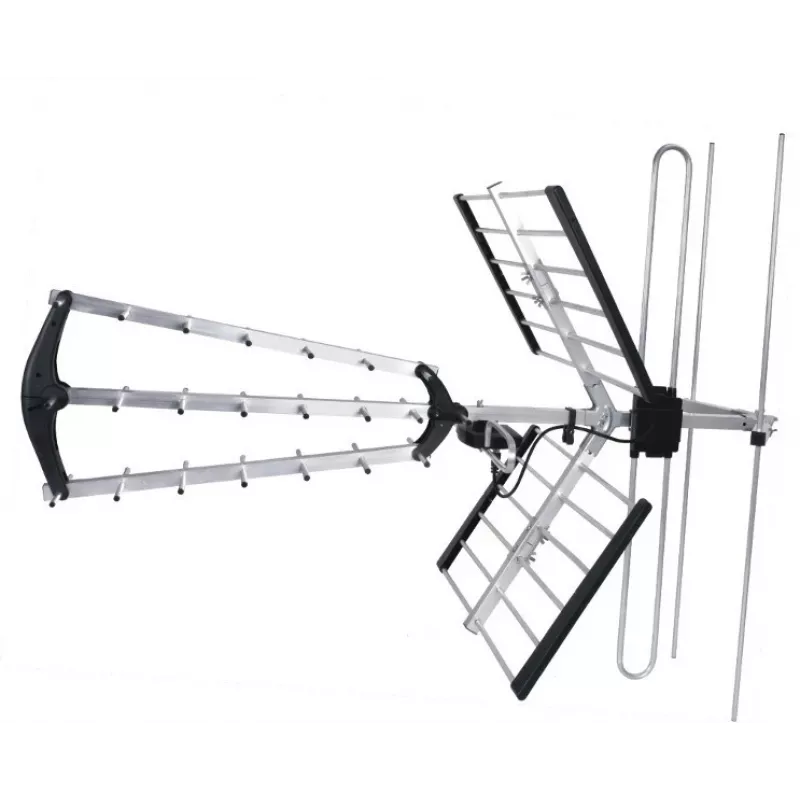

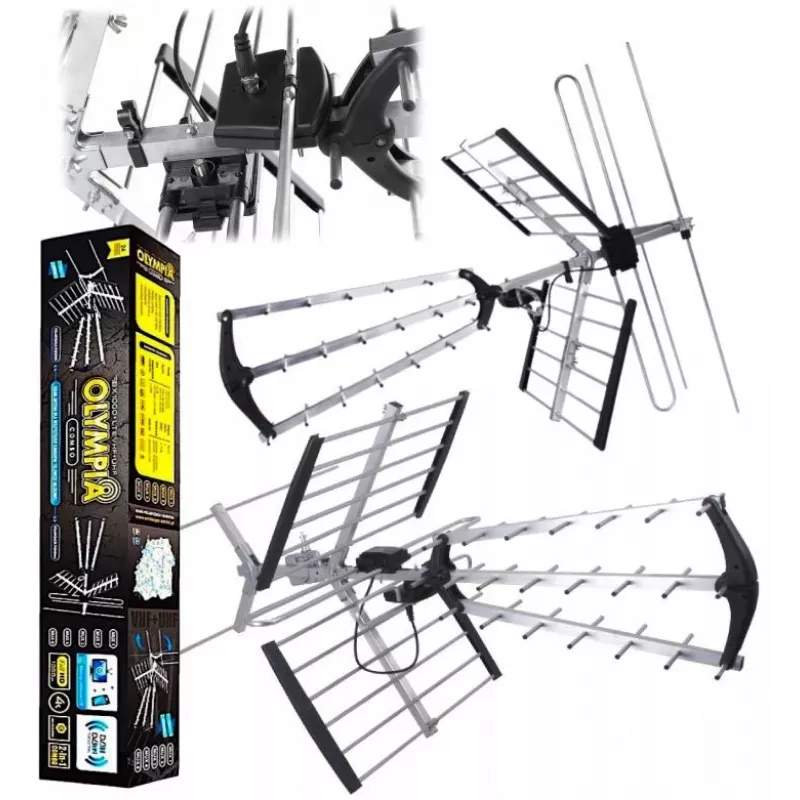

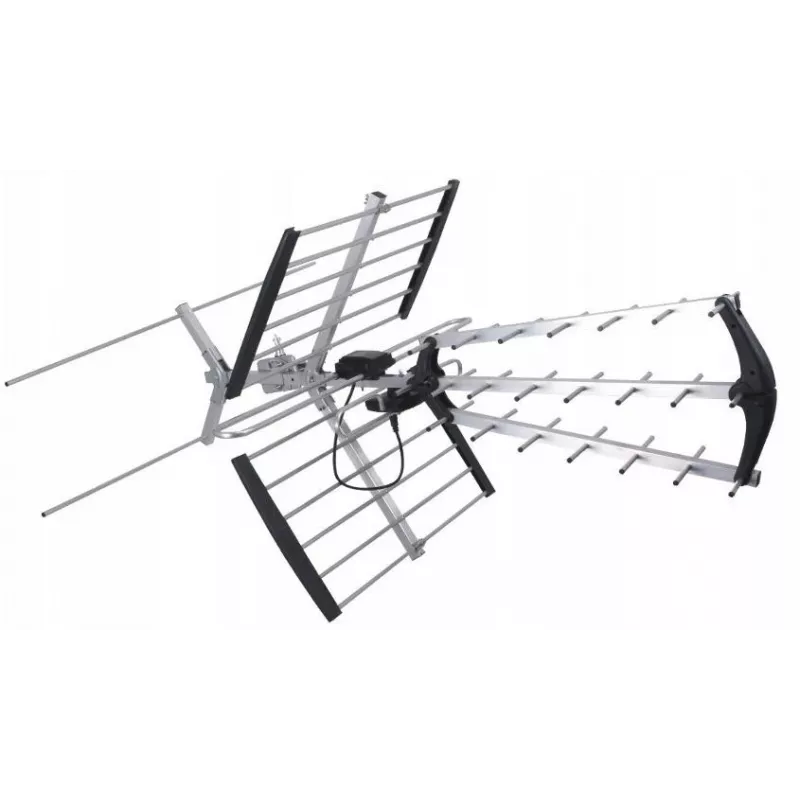

OPTICUM DVB-T 1000+ LTE Antenna OLYMPIA COMBO Red Eagle (BX-1000)

The OPTICUM DVB-T 1000+ LTE Antenna OLYMPIA COMBO Red Eagle (BX-1000) is a high-performance outdoor directional antenna designed for superior reception of DVB-T and DVB-T2 signals, including HDTV and 4K UHD content. With an integrated LTE filter, it effectively suppresses interference from 700 MHz LTE networks, ensuring clear and stable TV reception.

Advantages

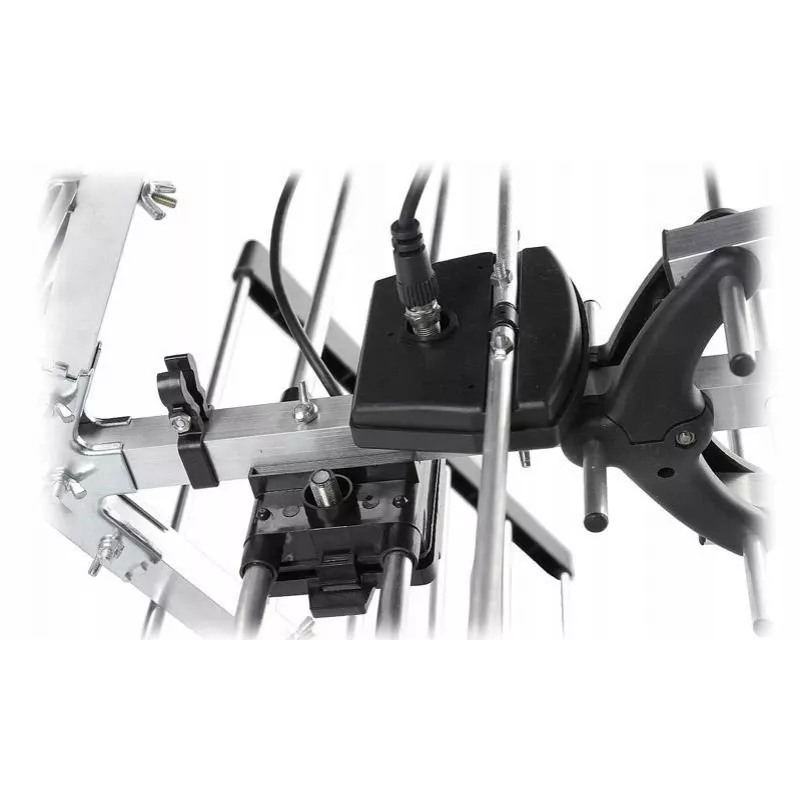

This antenna combines a multi-element Yagi design with a built-in low-noise amplifier, delivering exceptional gain of up to 36 dB in the UHF band and 28 dB in the VHF band. Its robust construction with aluminum and UV-resistant plastic ensures long-lasting outdoor performance. The included mast clamp allows easy mounting on poles up to 50 mm in diameter.

Suitable for

• Outdoor DVB-T/T2 reception in areas with weak or moderate signal strength
• Users requiring 4K UHD and HDTV broadcast reception
• Installations near LTE base stations where filtering is essential

Key specifications

• Antenna Type: Outdoor Directional DVB-T/T2
• Frequency Bands: VHF 174-230 MHz, UHF 470-694 MHz
• Integrated LTE Filter: Yes (700 MHz band)
• Max Gain: 28 dB (VHF), 36 dB (UHF) with amplifier
• Output Impedance: 75 Ohm
• Connector: F-type
• Polarization: Horizontal
• Built-in Amplifier: Yes, Low Noise (<2.5 dB noise figure)
• Power Supply: DC 5-24V via coaxial cable
• Mounting: Mast Clamp (up to 50 mm diameter)
• Material: Aluminum, UV-resistant Plastic
• Weather Resistance: Outdoor Rated
• VSWR: <2.0

Recommendations

For optimal performance, use with a DVB-T/T2 tuner or TV that provides 5V antenna power. Ensure proper alignment towards the broadcast tower for best signal reception.
