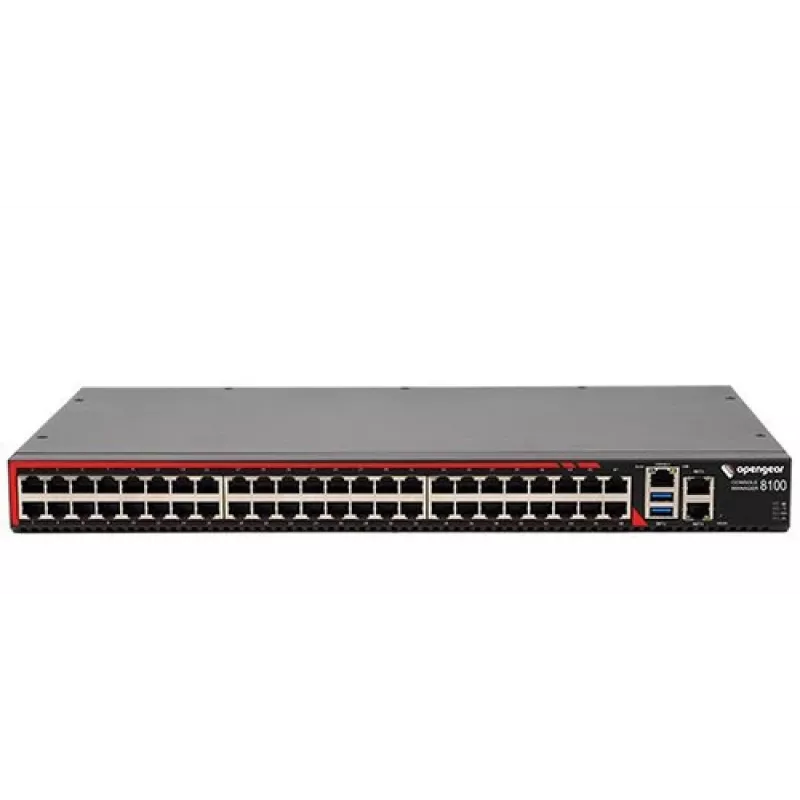

Opengear CM8148-10G 48-Port Smart Console Server, Dual 10GbE SFP+, Dual GbE, ARM Cortex-A9 1.6GHz, 2GB RAM, 16GB eMMC, Dual AC, 1U Rackmount

With 48 Cisco-pinout RJ45 RS-232 serial ports, dual 10GbE SFP+ uplinks, and a 1.6GHz dual-core ARM Cortex-A9 processor, the Opengear CM8148-10G delivers uncompromising out-of-band management for dense infrastructure. This 1U rackmount console server centralizes access to routers, switches, firewalls, and servers—even when the primary network is down.

Overview

The CM8148-10G is engineered for data centers, remote sites, and edge deployments that demand always-on management. Its 48 serial ports connect directly to console ports of critical equipment using Cisco straight-through pinout, eliminating the need for adapters. Two 10 Gigabit SFP+ ports provide high-speed out-of-band connectivity, while two Gigabit RJ45 ports offer flexible management network options. The dual-core ARM Cortex-A9 processor, paired with 2GB DDR3 RAM and 16GB eMMC flash, ensures responsive performance for concurrent sessions and local logging.

What stands out

• High-density serial connectivity: 48 RJ45 RS-232 ports with Cisco straight-through pinout—no adapters needed for most Cisco gear.
• Dual 10GbE SFP+ uplinks: future-proof bandwidth for out-of-band management and data collection.
• Redundant dual internal AC power supplies: no external bricks, no single point of failure.
• Advanced security: FIPS 140-2 validated cryptography, TPM 2.0, and Secure Boot protect the management plane.
• Smart OOB™ and Lighthouse integration: automate failover, cellular failover (with optional modem), and centralized management across thousands of devices.

Technical details

• Processor: ARM Cortex-A9 Dual Core 1.6 GHz
• System Memory: 2 GB DDR3 RAM
• Internal Storage: 16 GB eMMC Flash
• Serial Ports: 48 x RJ45 RS-232 (Cisco straight-through)
• Network: 2 x 10GbE SFP+, 2 x Gigabit RJ45 (10/100/1000Base-T)
• USB Ports: 2 x USB 3.0 Type-A
• Power Supply: Dual Internal AC (100-240V)
• Form Factor: 1U Rackmount
• Operating System: Opengear Linux
• Security: FIPS 140-2, TPM 2.0, Secure Boot
• Management: Smart OOB™, Lighthouse Integration
• Operating Temperature: 5°C to 50°C (41°F to 122°F)
• Power Consumption: Max 40W
• Mounting Kit: Rackmount kit included

Our verdict

The Opengear CM8148-10G is a formidable console server for enterprises needing high-density serial access and blazing-fast out-of-band connectivity. Its dual 10GbE SFP+ ports and redundant power supplies make it a resilient choice for mission-critical environments.
