Open End Wrench Gedore 6057190 Weight 45g Package Depth 65mm

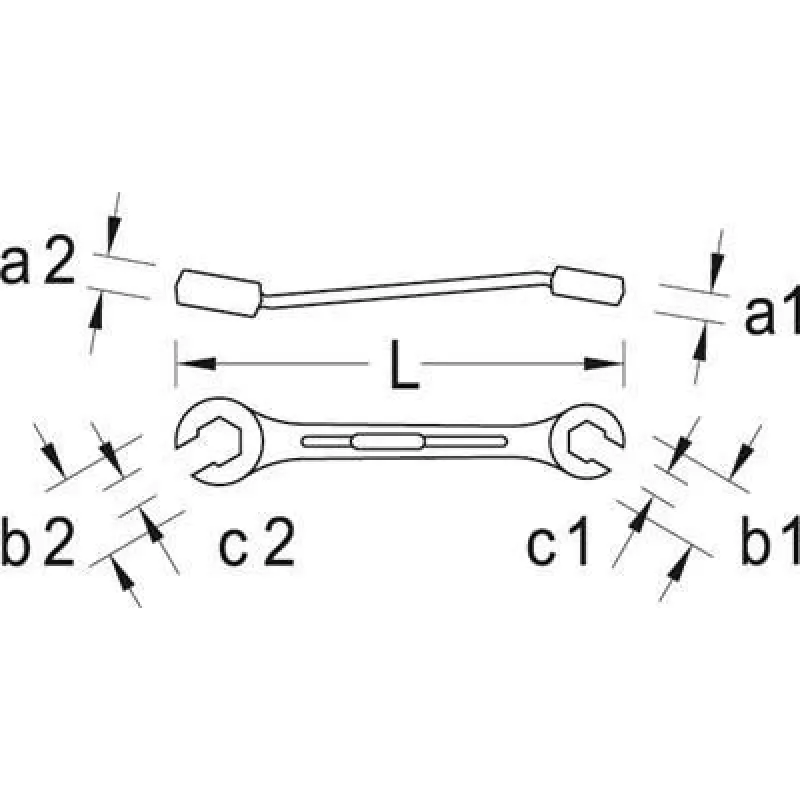

The Gedore 6057190 open end wrench is manufactured from vanadium steel (31CrV3) and chrome-plated for corrosion resistance. The wrench follows DIN 3118 dimensions with a ring offset of 15° from the shaft, a hexagon gap offset by 30°, and a UD-section at 15° offset. Sizes cover metric openings from 8x10 mm up to 12x14 mm with hexagon profile where applicable. The tool is lightweight at approximately 45 g and comes in a compact package.

Advantages

Chromium-plated vanadium steel construction provides durability and wear resistance while keeping weight low. The standardized offsets (ring 15°, hexagon gap 30°, UD-section 15°) improve accessibility in confined spaces and reduce the need to reposition the wrench frequently. Compact dimensions support easy storage and portability.

Suitable for

Key specifications

How to use

Select the correct open-end size for the fastener and position the wrench so the hexagon or open jaws fully engage the flats of the nut or bolt. Apply steady force to turn the fastener, using the offset ring and hexagon gap to access oblique or recessed positions. Avoid side impacts and excessive torque beyond the tool's capacity to prevent deformation.

Recommendations

For safe and long-lasting performance, keep the wrench clean and dry, inspect for wear or damage before use, and use the appropriate size to minimize rounding of fastener heads. Use with standard manual force; do not use as a hammer or with extension bars unless the tool is specifically rated for such use.
