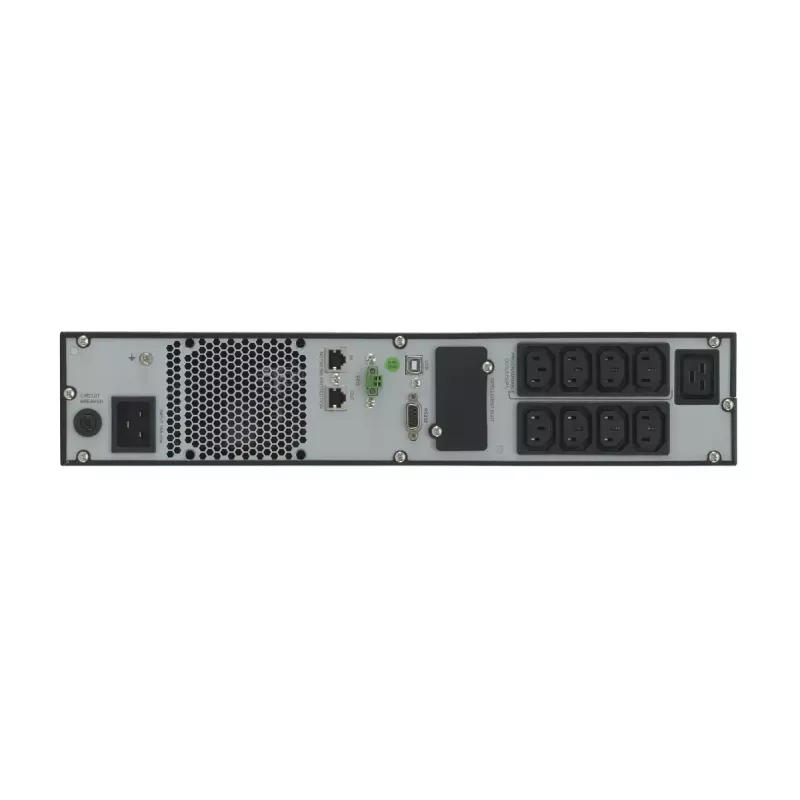

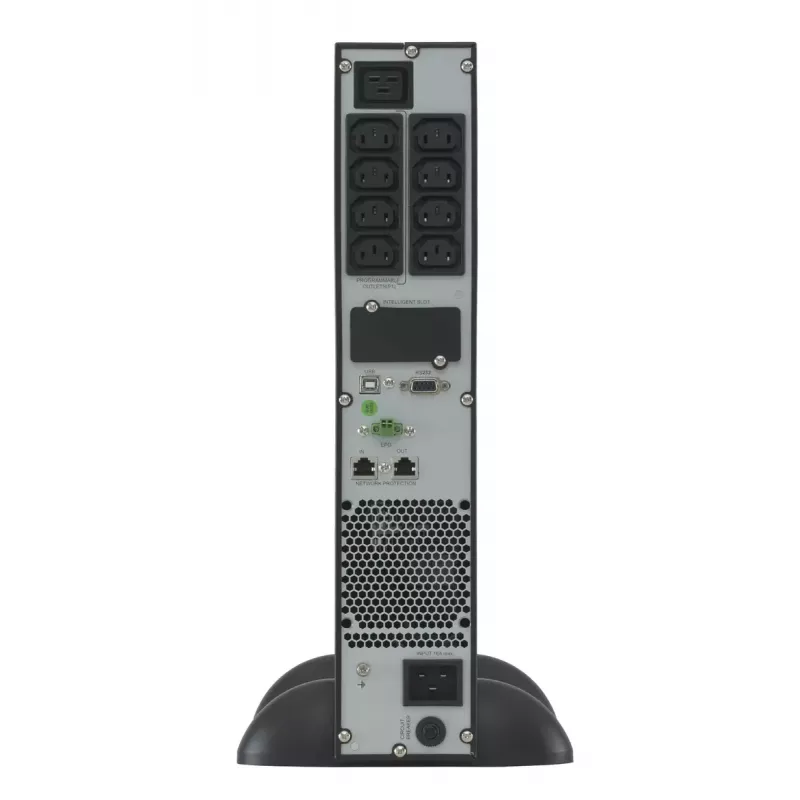

Uninterruptible Power Supply UPS ONLINE USV-Systeme ZINTO 3000

The ONLINE USV-Systeme ZINTO 3000 is a Line-Interactive uninterruptible power supply (UPS) with 3 kVA nominal capacity and 2700 W output power. Designed for rackmount or tower use (2U), it provides protection against mains failures, voltage fluctuations and data loss for servers, IT equipment and sensitive devices. The unit includes a 72 V battery (9 Ah), nine AC outlets (combined C13 and C19), one USB 2.0 port and is certified to EN62040-2.

Advantages

ZINTO 3000 uses Dynamic Power Technology (DPT) to adapt output power to the connected load and can deliver up to 90% of the UPS rated value in active power when needed. The model operates without a fan under normal conditions up to its 3000 VA range, reducing noise. Buck-and-boost voltage regulation handles input voltage fluctuations without engaging the battery, extending battery life and lowering operating costs. The combination of higher effective power and compact 2U form factor allows for cost-efficient selection of smaller UPS models while maintaining protection.

Suitable for

• Rack servers and network equipment in small to medium data racks
• Workstations and IT peripherals requiring short-term battery backup
• Medical analysis equipment where uninterrupted power is critical
• Small office and branch environments with mixed C13/C19 load

Key specifications

• Output power: 2700 W
• Output power capacity: 3 kVA
• Batteries: 72 V, 9 Ah
• AC outlets: 9 (C13 and C19)
• USB ports: 1 × USB 2.0
• Form factor: 2U rack / tower
• Weight: 29.3 kg
• Standards: EN62040-2 certified
• Color: Black

How to use

Install the ZINTO 3000 in a compatible 2U rack or position it as a tower on a stable surface. Connect the UPS to mains power and allow the internal battery to charge fully before relying on battery backup. Attach critical devices to the UPS outlets according to their power requirements, using the C13/C19 sockets as appropriate. Monitor load levels to ensure the connected equipment does not exceed the 2700 W output rating; Dynamic Power Technology will increase available active power when needed but must operate within the UPS specifications.

Recommendations

For reliable operation, perform regular battery checks and replace batteries according to the manufacturer’s schedule. Locate the UPS in a ventilated environment free from excessive dust and within the specified ambient temperature range. Use a UPS monitoring tool or the USB interface to track events and shutdown servers gracefully during extended outages.
