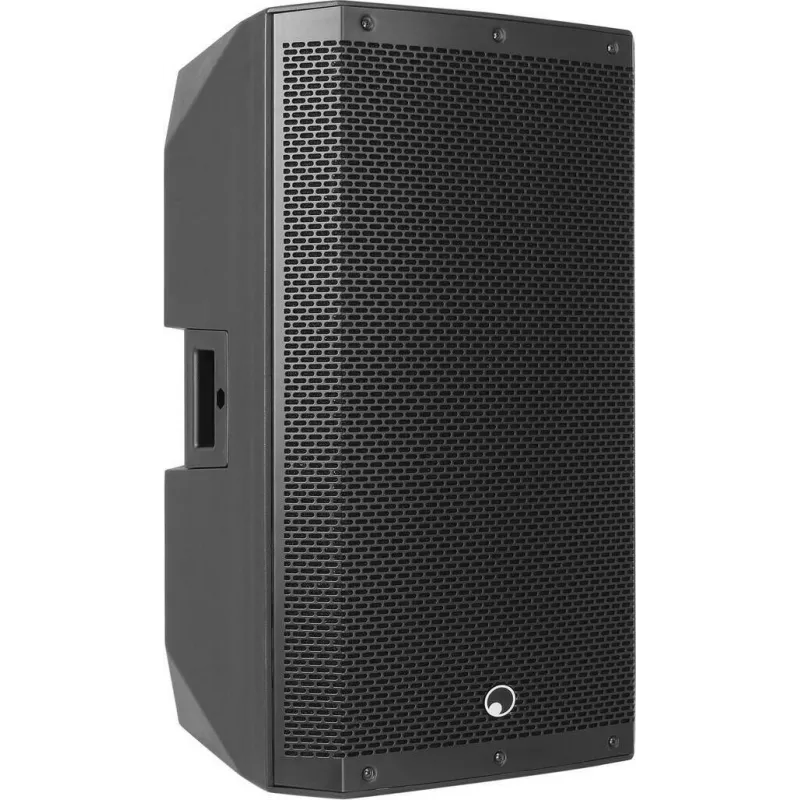

OMNITRONIC XNG-215A 2-Way Active DSP Loudspeaker 2x15 inch 1200W 11038076

Delivering 1200 W peak power and a massive 128 dB max SPL, the OMNITRONIC XNG-215A is a dual 15-inch active DSP loudspeaker built for demanding live sound and installation scenarios. Its Class D amplification and onboard DSP with four presets ensure precise, high-output performance in any venue.

Overview

The XNG-215A combines two 15-inch woofers with 3-inch voice coils and a 1.35-inch compression driver in a rugged plywood enclosure. A 600 W RMS Class D amplifier drives the system, while the integrated DSP provides crossover, limiting, delay, and four EQ presets (Music, Live, Speech, DJ) for instant optimization. Connectivity includes two combo XLR/6.3 mm jack inputs, stereo RCA, and a balanced XLR mix output. The cabinet features a 35 mm pole socket and M10 rigging points for flexible deployment.

What stands out

• Dual 15" woofers with 3" voice coils for deep, punchy bass down to 45 Hz
• Onboard DSP with four presets, low-cut filter, delay, and limiter
• High-output Class D amplification: 600 W RMS, 1200 W peak
• Wide 90° x 60° dispersion for even coverage
• Rugged plywood cabinet with M10 rigging points and 35 mm pole mount
• Flexible connectivity: two combo XLR/jack inputs, RCA, and XLR mix out

Technical details

• Speaker type: 2-way active DSP loudspeaker
• Woofer: 2 x 15" (38 cm) with 3" voice coil
• Tweeter: 1.35" (3.5 cm) compression driver
• RMS power: 600 W
• Peak power: 1200 W
• Frequency response: 45 Hz – 20 kHz
• Max SPL: 128 dB
• Amplifier class: Class D
• DSP: 4 presets (Music, Live, Speech, DJ), low-cut filter, delay, volume, limiter, crossover
• Inputs: 2 x XLR/6.3 mm jack combo (balanced), 1 x stereo RCA
• Outputs: 1 x XLR (balanced mix out)
• Dispersion: 90° x 60°
• Crossover frequency: 2.5 kHz
• Cabinet material: plywood
• Mounting: 2 x M10 threaded inserts, 35 mm flange
• Power supply: 230 V AC, 50 Hz
• Power consumption: 150 W
• Controls: power switch, volume, DSP preset selector, input gain

Our verdict

The OMNITRONIC XNG-215A is a powerhouse PA speaker that delivers exceptional clarity and low-end punch. Its DSP flexibility and robust build make it a top choice for mobile DJs, bands, and fixed installations requiring high SPL and reliable performance.
