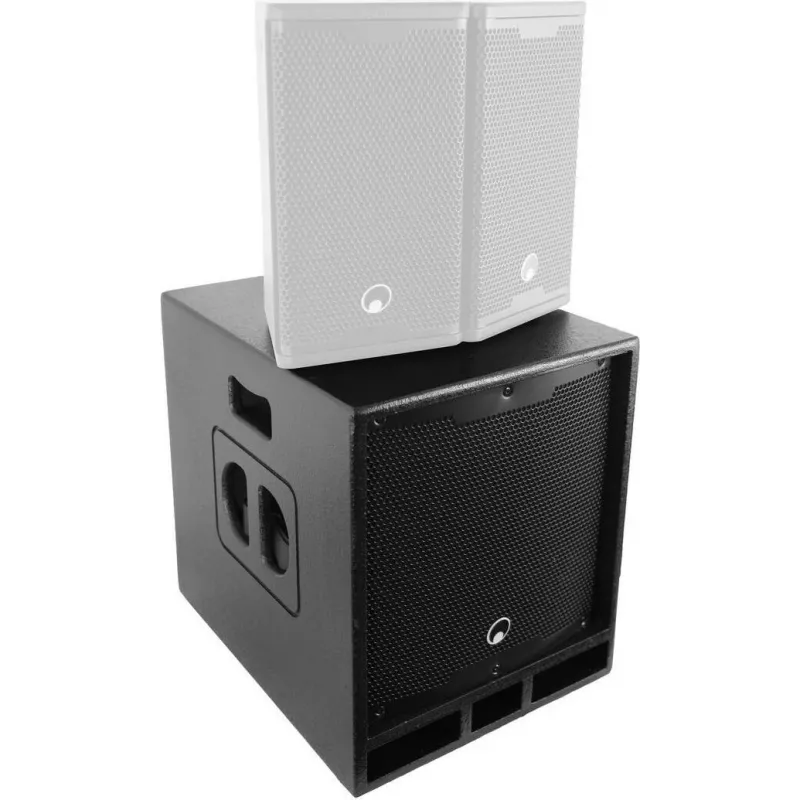

OMNITRONIC MAXX-1206DSP 2.1 Active Subwoofer System 12 inch with DSP 11039062

Small PA systems often struggle to deliver deep, controlled bass without distortion, leaving live performances and DJ sets sounding thin. The OMNITRONIC MAXX-1206DSP solves this by combining a 12-inch subwoofer with two satellite outputs in a single powered package, delivering 600 W RMS of clean, DSP-managed sound.

Who is it for

Mobile DJs, small bands, and event organizers who need a compact yet powerful 2.1 system with easy setup. Its integrated DSP presets make it suitable for both music playback and speech applications without external processing.

Main features

• 12-inch birch plywood subwoofer with scratch-resistant lacquer finish
• Built-in DSP with 4 presets (Music, Live, Speech, DJ), crossover, phase, delay, and limiter
• 600 W total RMS power: 300 W subwoofer + 2 x 150 W satellite outputs
• Versatile connectivity: XLR/6.3 mm combo and RCA inputs, XLR parallel and filtered outputs, Speakon satellite outputs
• M20 threaded flange for satellite pole mounting and two integrated handles for transport

Specifications

• System type: 2.1 active subwoofer system
• Subwoofer driver: 12" (30 cm)
• Total RMS power: 600 W
• Subwoofer RMS power: 300 W
• Satellite RMS power per channel: 150 W @ 8 Ohms
• Frequency response: 40 Hz – 20 kHz
• Maximum SPL (peak): 125 dB
• DSP features: 4 presets, crossover, phase, delay, limiter
• Inputs: 2 x XLR/6.3 mm combo, 2 x RCA
• Outputs: 2 x XLR (parallel), 2 x XLR (filtered), 2 x Speakon (satellites)
• Cabinet material: birch plywood with scratch-resistant lacquer
• Mounting: M20 threaded flange
• Power supply: 230 V AC, 50 Hz
• Power consumption: 1000 W
• Controls: master volume, subwoofer volume, DSP menu
• Handles: 2 integrated

Tips

Use the DJ preset for bass-heavy music and the Speech preset for presentations to optimize clarity. Pair with 8-ohm passive satellite speakers for a complete mobile PA setup.
