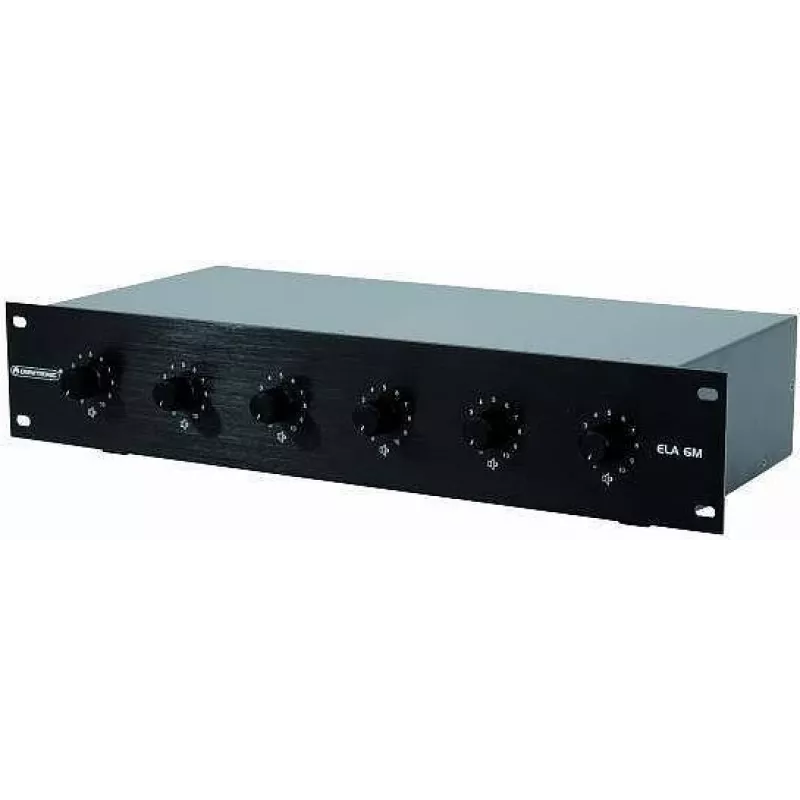

Omnitronic audio zone level controller ELA 6M-Zonen LS-Regler 5W black — 6-zone, 5 W output

The Omnitronic audio zone level controller ELA 6M-Zonen LS-Regler 5W black is a compact 6-zone volume controller for distributed sound installations. It provides independent level adjustment for six separate zones and a total nominal output rating of 5 W, designed for background music, paging and small public-address setups. The unit’s straightforward front-panel controls and compact black housing allow practical installation in commercial or residential environments where simple zone-level management is required.

Advantages

Independent rotary controls for each of the six zones permit precise balancing of audio levels without the need to access a central amplifier. The device’s low overall power rating is suitable for background-music applications and short-range paging, helping to reduce power consumption in small installations. Its compact format and unobtrusive black finish facilitate integration into existing racks or wall-mounted enclosures while providing clear front-panel labeling for everyday operation.

Suitable for

Key specifications

How to use

Install the unit in a suitable location and connect the input source and loudspeaker lines according to the system wiring requirements. Use the front-panel rotary controls to set individual zone levels to the desired loudness. Ensure that the combined load and cable runs are compatible with the overall output rating to maintain audio quality and avoid overdriving the unit. For paging, connect the paging microphone or console to the input and adjust levels as required.

Recommendations

For reliable operation, match speaker impedance and cable lengths to the installation environment, keep the zone levels moderate to avoid clipping, and check connections periodically. Use this controller in applications where low-power distributed audio is sufficient; for larger areas or higher SPL requirements, consider systems with higher output ratings.
