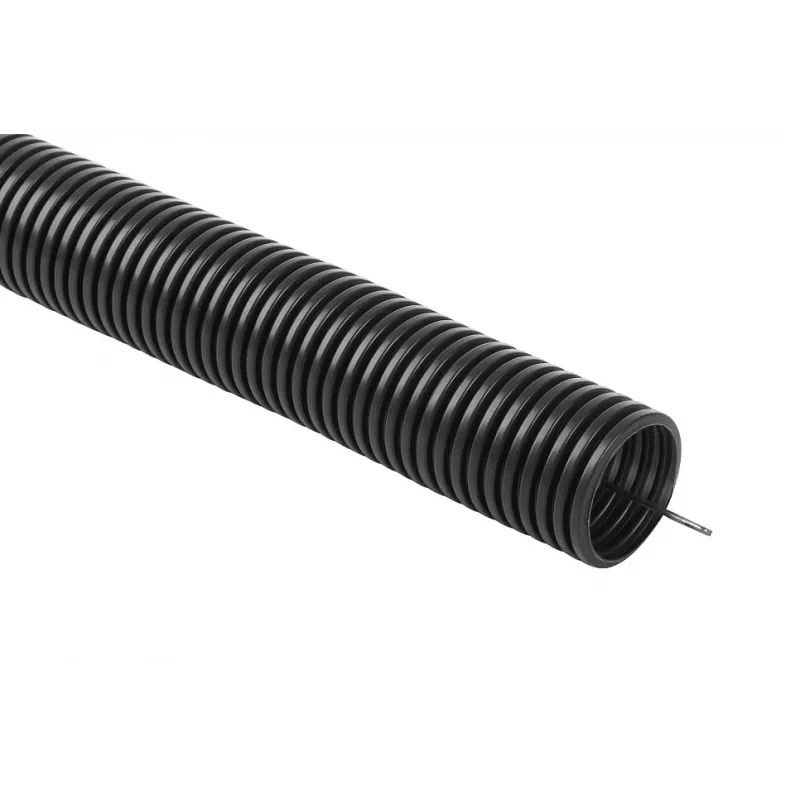

OLLO Flexible Corrugated Conduit PVC UV 320N with Pilot Wire 50/43 mm 25 m Grey

The OLLO flexible corrugated conduit is a high-quality PVC conduit designed for electrical cable protection in both concealed and surface installations. With an outer diameter of 50 mm and inner diameter of 43 mm, this conduit offers excellent flexibility and durability. It is UV stabilized for outdoor use and includes a pilot wire for easy cable pulling. The conduit has a compression strength of 320 N (medium) and is self-extinguishing, ensuring safety in various applications.

Advantages

This conduit provides reliable protection for electrical cables against mechanical impacts, moisture, and UV radiation. Its corrugated design allows for easy bending and installation around corners, while the integrated pilot wire simplifies cable pulling. The PVC material is resistant to aging and offers high electrical insulation.

Suitable for

• Electrical cable protection in residential, commercial, and industrial buildings
• Concealed installations in walls, floors, and ceilings
• Surface installations on walls and ceilings
• Outdoor applications requiring UV resistance
• Protection of cables in harsh environments

Key specifications

• Product Type: Flexible Corrugated Conduit
• Material: PVC (Polyvinyl Chloride)
• Outer Diameter: 50 mm
• Inner Diameter: 43 mm
• Length: 25 m
• Compression Strength: 320 N (Medium)
• UV Resistance: Yes (UV Stabilized)
• Pilot Wire Included: Yes
• Colour: Grey
• Operating Temperature Range: -5°C to +60°C
• Flammability: Self-extinguishing
• Standard Compliance: PN-EN 61386-22
• Impact Resistance: Medium
• Electrical Insulation: High
• Protection Class: IP40
• Flexibility Class: Class 2 (Flexible)
• Manufacturer Series: RKG-P

Recommendations

For optimal performance, ensure the conduit is properly supported and secured during installation. Use appropriate fittings and connectors to maintain the protection class. This conduit is suitable for use with cables up to 43 mm diameter.
