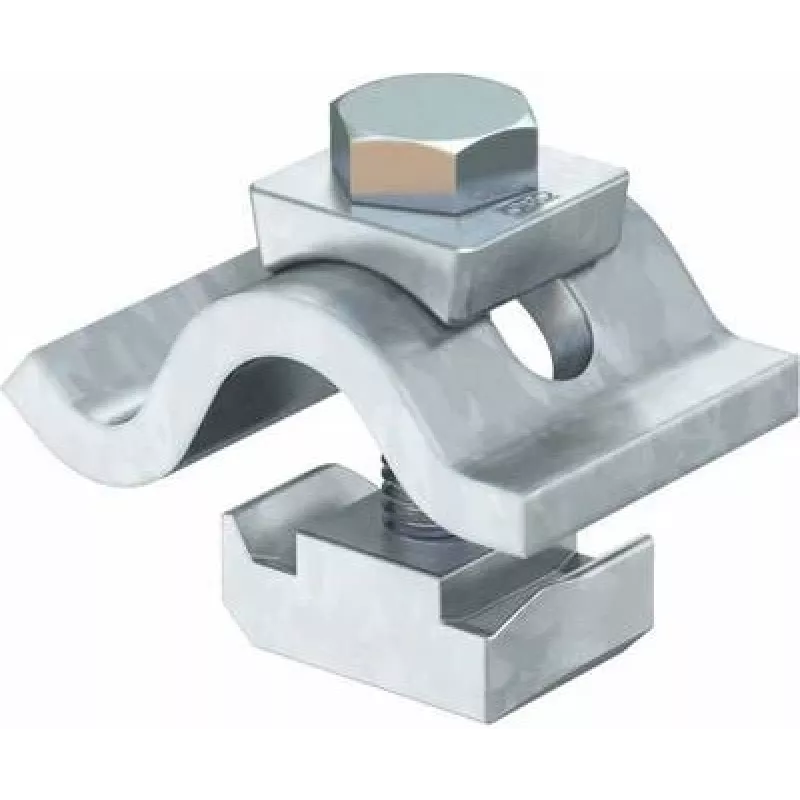

OBO Bettermann Vertical Tension Clamp Light with Sliding Nut M10x50 TKH 6355812

This vertical tension clamp secures steel beams and profiles with a light yet robust grip, delivering a static load capacity of 1.5 kN for reliable fastening in indoor and outdoor environments. The hot-dip galvanised finish ensures long-term corrosion resistance, while the integrated sliding nut M10x50 allows for quick and precise adjustments during installation.

Advantages

The clamp's light design reduces overall weight without compromising strength, making it easier to handle on site. Its sliding nut mechanism enables flexible positioning along the beam flange, accommodating various profile thicknesses from 3 to 20 mm. Hot-dip galvanisation to DIN EN ISO 1461 provides a durable, maintenance-free surface that withstands harsh weather conditions.

Suitable for

• Fastening cable trays, conduits, and pipework to steel I-beams, U-channels, and C-profiles
• Industrial installations requiring corrosion-resistant components
• Outdoor applications exposed to moisture and temperature fluctuations
• Construction projects with standard steel beam dimensions

Key specifications

• Product type: Vertical tension clamp, light version
• Connection: With sliding nut
• Thread dimension: M10
• Bolt length: 50 mm
• Material: Steel
• Surface finish: Hot-dip galvanised
• Flange thickness range: 3 - 20 mm
• Max. static load: 1.5 kN (approx. 150 kg)
• Colour: Metallic (silver-grey)
• Standard compliance: DIN EN ISO 1461

Recommendations

For optimal performance, ensure the beam flange is clean and free of debris before clamping. Tighten the sliding nut to the recommended torque for a secure hold. Pair with OBO Bettermann mounting rails and accessories for a complete fastening solution.
