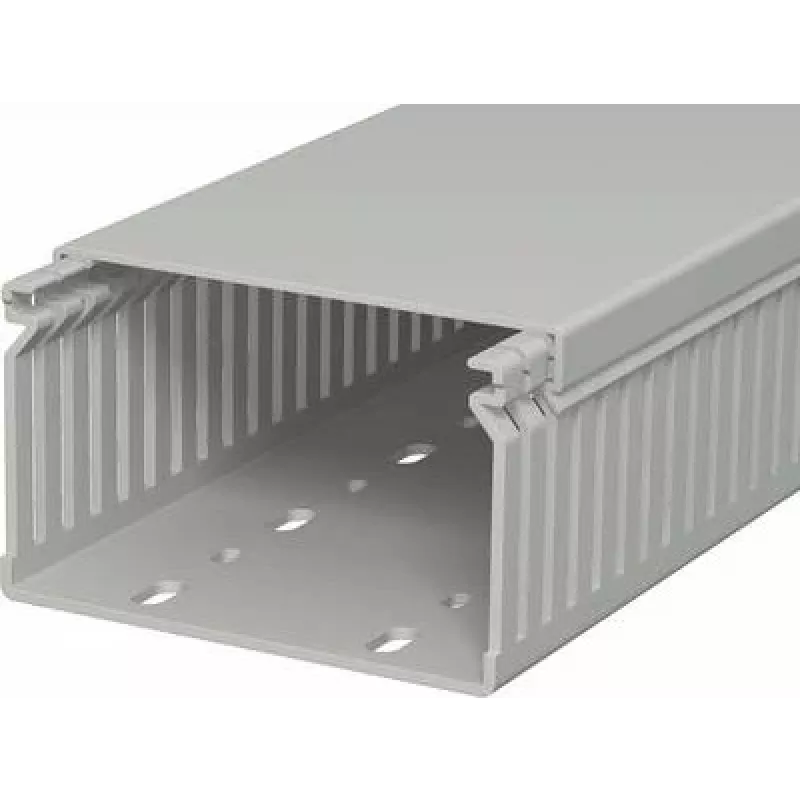

OBO Bettermann 6178037 Wiring Duct WDK 2000x100x60 mm Stone Grey

Managing cables in industrial and commercial installations often means wrestling with tangled wires, unsafe routing, and time-consuming maintenance. The OBO Bettermann 6178037 wiring duct solves this by providing a robust, organized pathway for cables, ensuring a neat and safe electrical setup. This 2-meter-long duct, in stone grey, accommodates a high volume of wiring while keeping it accessible and protected.

Who is it for

Electricians, panel builders, and facility managers who need a reliable cable management solution for control panels, switchgear, or building installations. It suits both new projects and retrofits where cable organization and protection are critical.

Main features

• Generous internal dimensions of 100 mm width and 60 mm height to house multiple cables.
• Integrated lid snaps securely, yet can be removed easily for cable access.
• PVC material offers excellent insulation and resistance to common chemicals.
• Pre-punched base holes allow quick screw mounting to panels or walls.
• Finger design with 4 mm slots and 6 mm spacing enables clean cable breakout at any point.
• Complies with EN 50085-2-3 for assured quality and safety.

Specifications

• Brand: OBO Bettermann
• Model: 6178037
• MPN: 6178037
• EAN: 4012196001736
• Length: 2000 mm
• Width: 100 mm
• Height: 60 mm
• Material: PVC (Polyvinyl Chloride)
• Colour: Stone Grey (RAL 7030)
• Slot Width: 4 mm
• Slot Spacing: 6 mm
• Finger Width: 6 mm
• Lid Included: Yes
• Halogen-free: No
• Temperature Resistance: -5 to +60 °C
• Fire Behaviour: Self-extinguishing
• Standard: EN 50085-2-3
• Protection Class: IP20 (with lid)
• Mounting Type: Base perforation for screw mounting
• Series: WDK
• Quantity per Pack: 1 piece

Tips

For a clean installation, plan cable routes before mounting the duct. Use the pre-punched holes to secure the base at regular intervals, then lay cables in the duct and snap on the lid. To modify cable entries, simply cut the fingers as needed with a suitable tool. The duct can be cut to shorter lengths using a fine-tooth saw.
