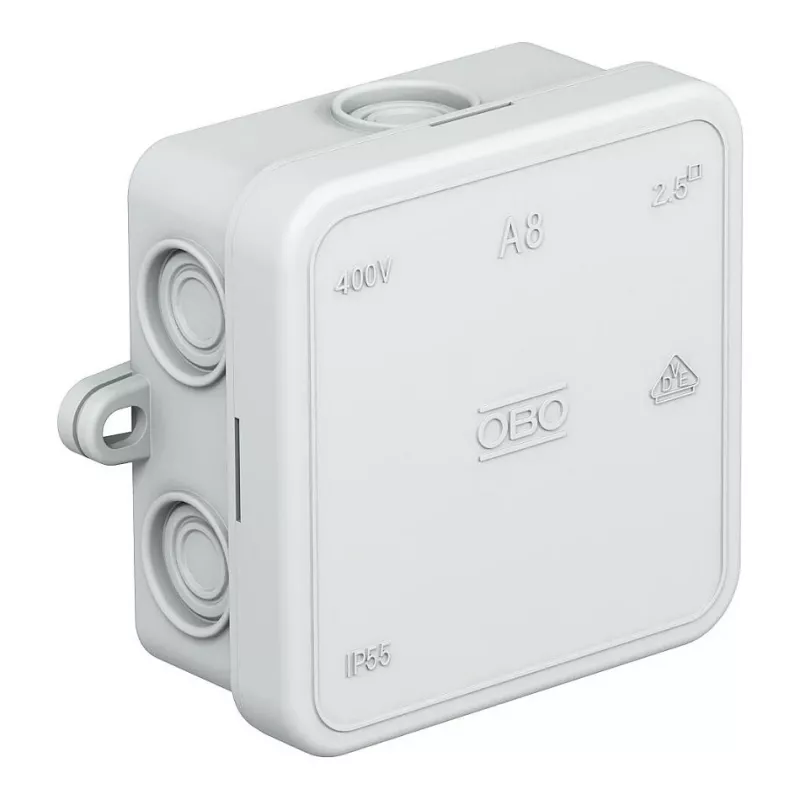

OBO A 8 Cable Junction Box 75x75x36 mm PE Light Grey RAL 7035 IP55 8 Entries

Rated at 400 V and 16 A with an IP55 protection class, this OBO A 8 junction box is built for dependable cable management in demanding environments. Its 75 x 75 x 36 mm footprint and eight self-sealing elastic membrane entries make it a practical choice for surface-mounted installations.

Overview

The OBO A 8 is a surface-mounted cable junction box made from halogen-free, UV-resistant polyethylene in light grey (RAL 7035). It provides a secure enclosure for electrical connections, with a snap-on lid for quick access during installation and maintenance. The box is suitable for protected outdoor areas and complies with VDE, RoHS, and CE standards.

What stands out

• Eight elastic membrane entries allow cables to be inserted without additional grommets, saving time and ensuring a tight seal.
• Impact resistance rated IK07 means the box can withstand mechanical stress without cracking.
• Halogen-free material enhances safety in case of fire, reducing toxic smoke emissions.
• Operating temperature range of -25 °C to +40 °C makes it suitable for a variety of climates.

Technical details

• Material: Polyethylene (PE)
• Colour: Light grey (RAL 7035)

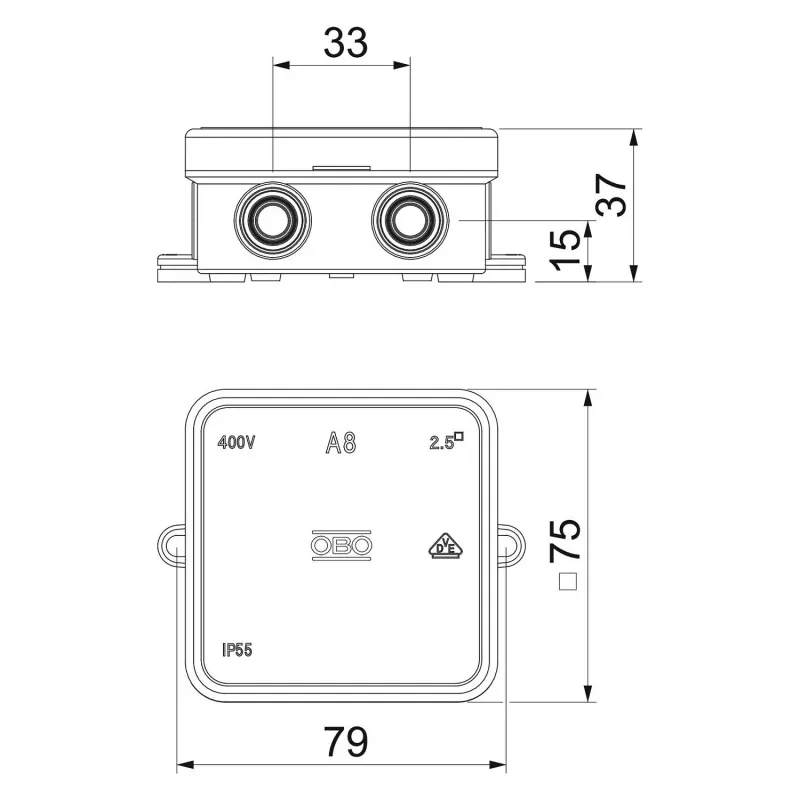

• External dimensions (L x W x H): 75 x 75 x 36 mm
• Internal depth: 30 mm
• Protection class: IP55
• Rated insulation voltage: 400 V
• Rated current: 16 A
• Number of cable entries: 8
• Entry type: Elastic membrane (self-sealing)
• Mounting type: Surface mounted
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature range: -25 °C to +40 °C
• Glow-wire test: 750 °C
• Impact resistance: IK07

Our verdict

A robust and versatile junction box that combines ease of installation with high safety standards, making it an excellent choice for both indoor and protected outdoor electrical projects.
