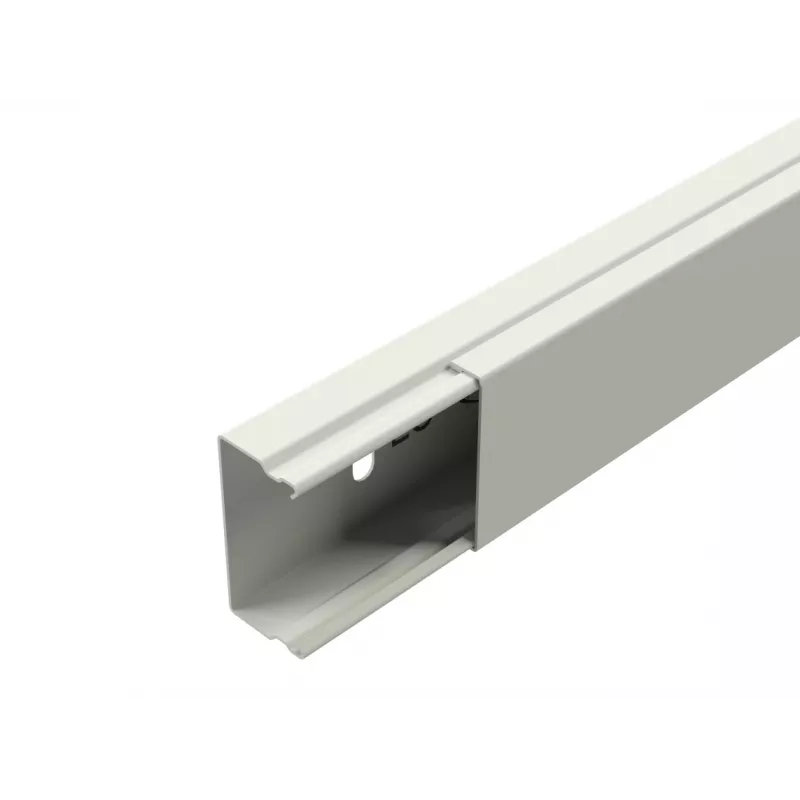

Niedax NIED Sheet Steel Cable Trunking LLK 16.030 R with Lid, Pure White (RAL 9010), 30mm x 16mm x 2000mm

The Niedax NIED LLK 16.030 R is a high-quality sheet steel cable trunking system designed for professional indoor cable routing. This complete unit includes a snap-on lid and is finished in pure white (RAL 9010) with a durable powder coating. Ideal for surface mounting in electrical installations, it provides reliable cable protection and organization.

Advantages

Robust sheet steel construction ensures long-lasting durability. The powder-coated surface offers excellent corrosion protection and a clean, uniform appearance. The snap-on lid allows quick and secure closure, saving installation time. Halogen-free materials enhance safety in case of fire.

Suitable for

• Indoor cable routing in commercial and residential buildings
• Surface-mounted electrical installations
• Protecting and organizing low-voltage and power cables

Key specifications

• Product Type: Cable Trunking
• Material: Sheet Steel
• Colour: Pure White (RAL 9010)
• External Width: 30 mm
• External Height: 16 mm
• Length: 2000 mm
• Lid Type: Snap-on
• Surface Finish: Powder Coated
• Number of Compartments: 1
• Mounting Method: Surface Mount
• Internal Cross-Sectional Area: approx. 392 mm²
• Wall Thickness: 0.75 mm
• Halogen-Free: Yes
• Temperature Resistance: -30°C to +90°C
• Standard Compliance: DIN EN 50085-1, DIN EN 50085-2-1

Recommendations

For a complete installation, use compatible Niedax accessories such as corners, end caps, and mounting brackets. Ensure the trunking is securely fixed to the wall or surface using appropriate screws and anchors.
