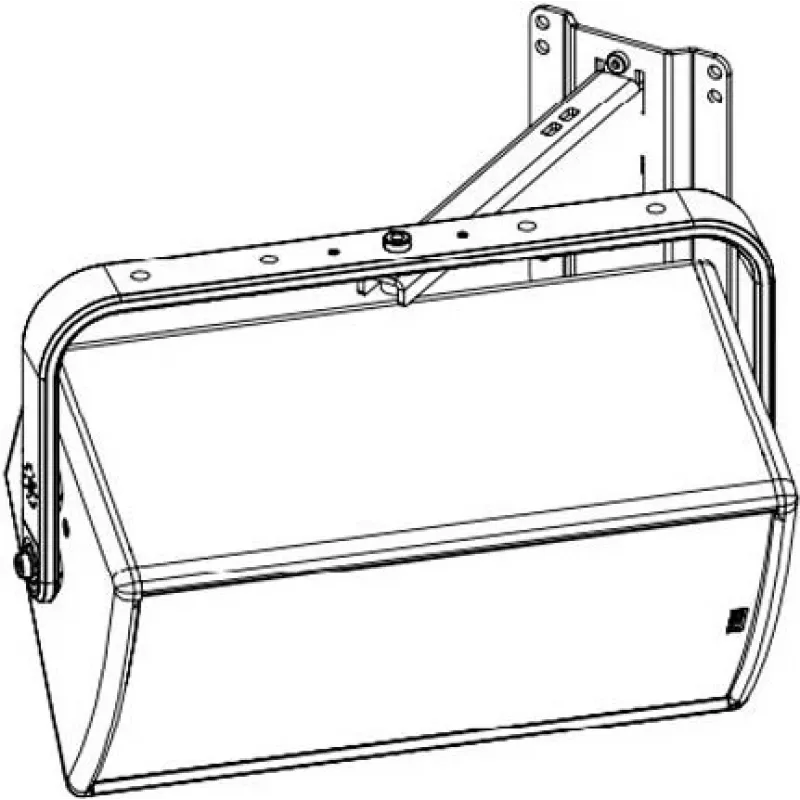

NEXO VNI-WM280 Wall Mount Bracket for P10 & EPS8 Point Source Loudspeakers 280

The NEXO VNI-WM280 is a professional-grade wall mount bracket specifically designed for NEXO P10 and EPS8 point source loudspeakers. Engineered for permanent installations, this robust steel bracket provides secure mounting with flexible pan and tilt adjustments, ensuring optimal sound coverage in any venue.

Advantages

Built from heavy-duty steel with a black powder-coated finish, the VNI-WM280 offers exceptional durability and corrosion resistance. Its integrated mounting hardware simplifies installation, while the ±70° pan and ±25° tilt adjustments allow precise aiming of the loudspeaker. With a maximum load capacity of 20 kg, it reliably supports the P10 and EPS8 models.

Suitable for

• Professional audio fixed installations
• Sound reinforcement systems in theaters, clubs, and houses of worship
• Permanent wall mounting of NEXO P10 and EPS8 point source loudspeakers

Key specifications

• Compatible Loudspeakers: NEXO P10, NEXO EPS8
• Material: Steel
• Finish: Black Powder-Coated
• Mounting Orientation: Wall-mounted
• Horizontal Adjustment (Pan): Up to ±70°
• Vertical Adjustment (Tilt): Up to ±25°
• Maximum Load Capacity: 20 kg (44 lbs)
• Distance from Wall: Approx. 100 mm
• Installation Type: Permanent Installation
• Mounting Hardware (Speaker): Integrated
• Mounting Hardware (Wall): Not Included

Recommendations

For best results, use with appropriate wall anchors (not included) and ensure the wall can support the combined weight of bracket and loudspeaker. Professional installation recommended.
