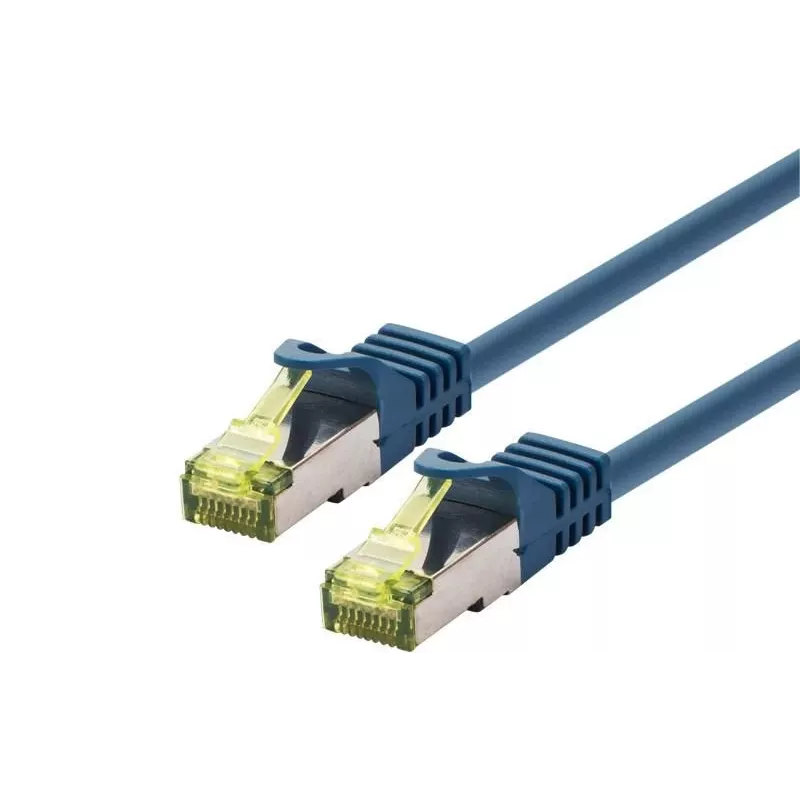

Networking cable LOGON TCR6ASS200B Cat6a S/FTP (S-STP) Blue, RJ-45 — 20 m

LOGON TCR6ASS200B is a 20 m Cat6a S/FTP (S-STP) network patch cable with RJ-45 connectors on both ends. Manufactured to support Cat6a performance, the cable uses pair-in-metal-foil (PIMF) construction with an overall braided shield to reduce electromagnetic interference and maintain stable high-speed Ethernet connections in LANs, server rooms, office environments and professional installations. The blue LSZH jacket provides a low-smoke, zero-halogen outer sheath suitable for indoor deployments where reduced smoke and toxic gas emission is required.

Advantages

The double-shielded S/FTP design combines individual foil shielding around each twisted pair with an overall braid to provide enhanced protection against crosstalk and external EMI. AWG26/7 stranded conductors deliver flexibility for routing and patch panel use while supporting frequencies and data rates in line with Cat6a standards. The RJ-45 straight-male connectors at both ends enable plug-and-play compatibility with standard Ethernet ports, switches and patch panels. Compliance with ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 ensures predictable electrical and mechanical behavior for professional network installations.

Suitable for

• High-speed Ethernet connections up to Cat6a in local area networks (LAN)
• Server rooms and data cabinets requiring shielded cabling
• Office workstations and structured cabling with patch panels and switches
• Professional audiovisual installations and PoE devices
• Environments where reduced electromagnetic interference is necessary

Key specifications

• Cable category: Cat6a (Class E)
• Shielding: S/FTP (individual foil for each pair + overall braid)
• Conductor type: AWG26/7 stranded copper
• Connector: RJ-45 straight male on both ends
• Length: 20 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Blue
• Standard compliance: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2

How to use

Connect each end of the LOGON Cat6a S/FTP patch cable to the RJ-45 ports of your networking equipment, such as switches, routers, patch panels or network interface cards. Route the cable following building infrastructure and avoid tight bends or kinks; maintain the manufacturer’s recommended minimum bend radius to preserve signal integrity. For installations in shielded environments, ensure both ends are properly grounded through the shielded connectors or chassis to achieve full EMI protection.

Recommendations

Use this cable for backbones and horizontal runs where Cat6a performance and shielding are required. Avoid running the cable parallel to high-voltage power lines for extended distances. For PoE applications, verify power budget and device compatibility; for permanent installation, terminate and test the cable using appropriate certified tools and testers to confirm performance.
