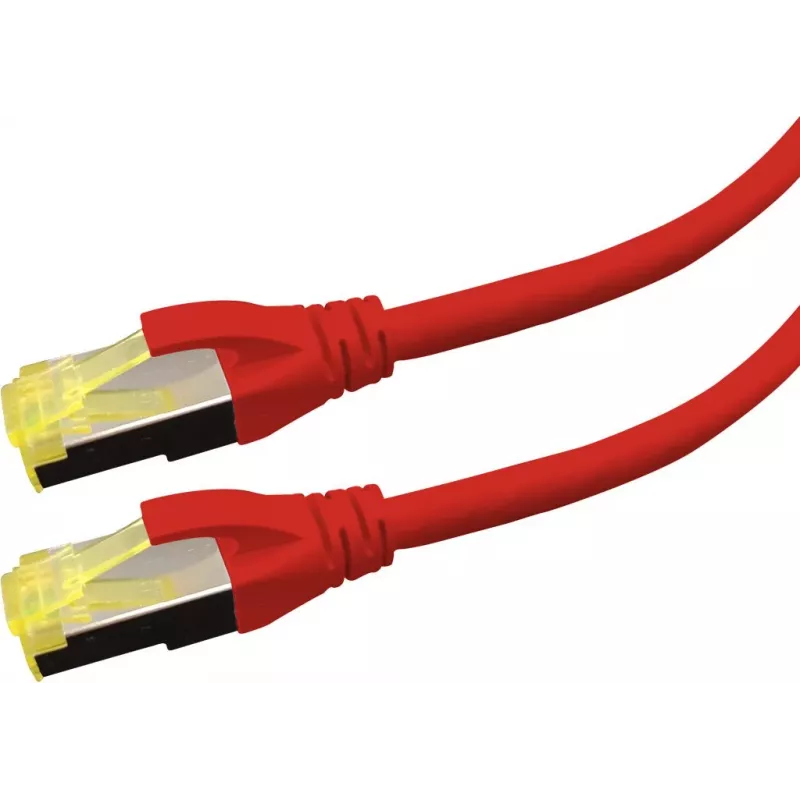

Networking cable LOGON APR6A015R Cat6a S/FTP (S-STP) Red 1.5 m RJ-45–RJ-45

LOGON APR6A015R is a 1.5 m Cat6a networking patch cable with S/FTP (S-STP) shielding and RJ-45 connectors on both ends. Designed for 10 Gigabit Ethernet and high-speed LAN links, this cable supports reliable data transmission in office environments, server rooms and short horizontal connections. The red jacket provides easy visual identification for cable management and segregation of network segments.

Advantages

The S/FTP construction combines an overall braid with individually foil-shielded pairs to reduce electromagnetic interference and crosstalk, improving signal integrity at higher frequencies. The cable’s 26 AWG conductors and Cat6a standard ensure consistent performance up to 500 MHz for demanding network applications. A molded RJ-45 termination on each end provides a compact and stable connection for patch panels, switches and routers.

Suitable for

• 10 Gigabit Ethernet patching in data centers and server rooms
• High-speed LAN connections between switches, routers and workstations
• Short links and patching in office horizontal cabling
• Environments requiring color-coded cable management

Key specifications

• Category: Cat6a, supports up to 10 Gbps and frequencies up to 500 MHz
• Shielding: S/FTP (overall braid plus individually foil-shielded pairs)
• Conductor size: 26 AWG, 4 twisted pairs
• Connector type: RJ-45 to RJ-45, molded plugs
• Jacket: Low Smoke Zero Halogen (LSOH) outer sheath
• Length: 1.5 meters
• Color: Red for visual identification

How to use

Connect one RJ-45 plug to the network device (switch, router or wall outlet) and the other plug to the corresponding port on the target device. Ensure connectors are fully inserted and the cable is routed without sharp bends or excessive strain. For best performance, avoid running the cable parallel to high-voltage power lines or close to sources of strong electromagnetic interference.

Recommendations

Use this Cat6a S/FTP cable for short patch runs and connections where higher shielding is required. For permanent in-wall installations verify local building codes and choose appropriate plenum or riser-rated cable if needed. Label both ends for easier identification in structured cabling systems.
